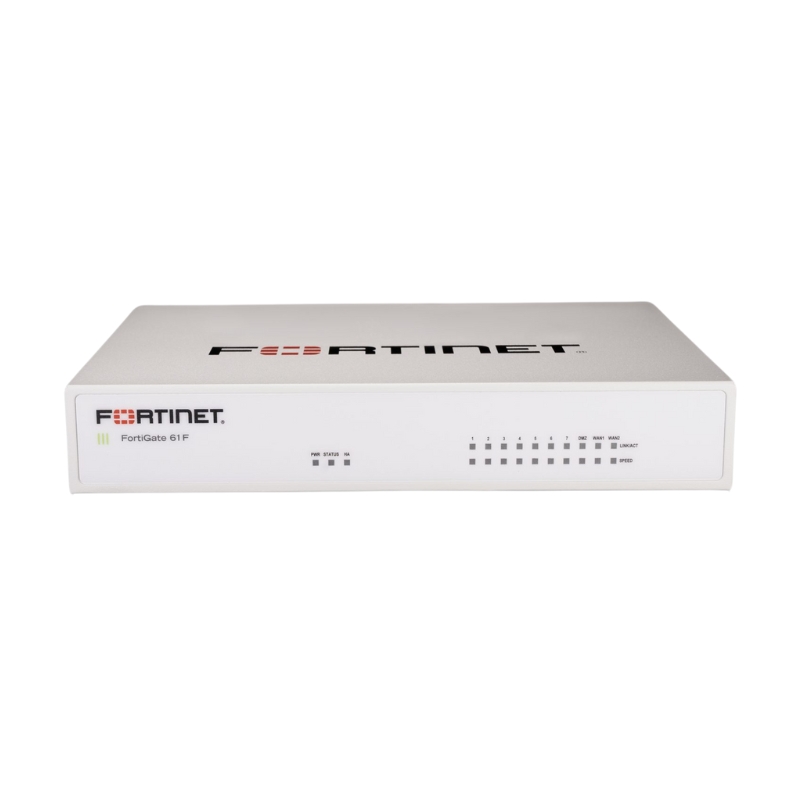

Firewall Fortinet FortiGate 61F (FG-61F-BDL-950-12)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:54:23 +0000

Firewall-Fortinet-FortiGate-61F-(FG-61F)

Thông số kỹ thuật

Mã sản phẩm	FG-61F-BDL-950-12
Hardware Specifications`
GE RJ45 WAN / DMZ Ports	2 / 1
GE RJ45 Internal Ports	5
GE RJ45 FortiLink Ports	2
GE RJ45 PoE/+ Ports	–
Wireless Interface	–
Console Port	1
USB Port	1
Internal Storage	1x 128 GB SSD
System Performance — Enterprise Traffic Mix
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	10/10/6 Gbps
Firewall Latency (64 byte, UDP)	4 μs
Firewall Throughput (Packet per Second)	9 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Sec (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	900 Mbps
Concurrent SSL-VPN Users	200
SSL Inspection Throughput (IPS, HTTP)	750 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	400
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput	1.8 Gbps
CAPWAP Throughput (1444 byte, UDP)	8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	30 / 10
Maximum Number of FortiTokens	500
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38 x 216 x 160
Weight	1.9 lbs (0.9 kg)
Operating Environment and Certifications
Power Required	100–240V AC, 50–60 Hz (External DC Power Adapter, 12 VDC)
Maximum Current	115V AC / 0.2A, 230V AC / 0.1A
Total Available PoE Power Budget	N/A
Power Consumption (Average / Maximum)	17.2 W / 18.7 W
Heat Dissipation	63.8 BTU/hr
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Bài viết Firewall Fortinet FortiGate 61F (FG-61F-BDL-950-12) đã xuất hiện đầu tiên vào ngày VNS.

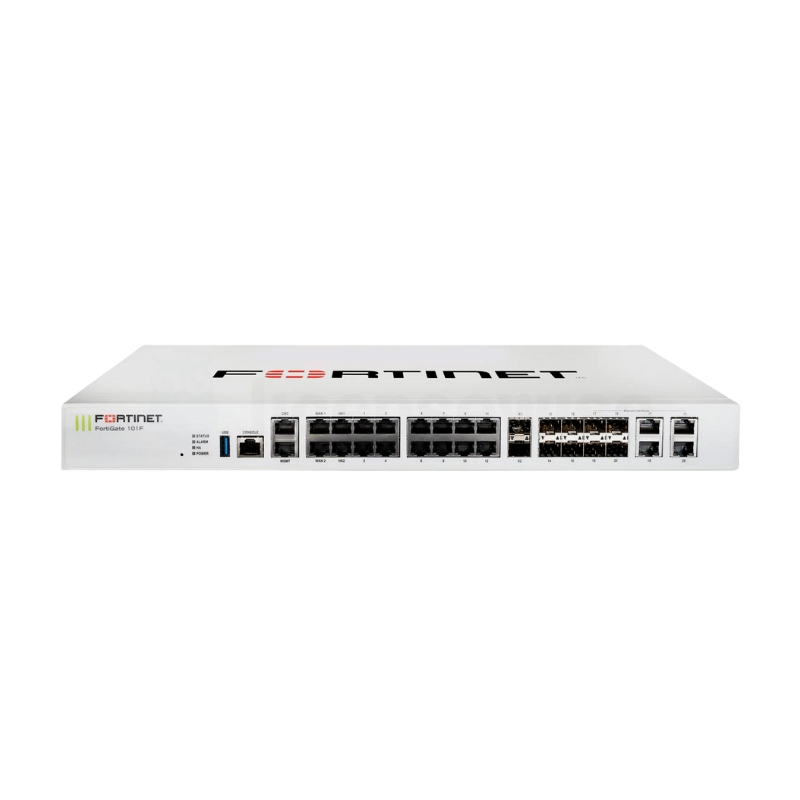

Thiết bị Firewall Fortinet FortiGate 101F (FG-101F)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:50:19 +0000

Firewall-Fortinet-FortiGate-101F-(FG-101F)

Thông số kỹ thuật

Interfaces and Modules
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	4
Console Port	1
Internal Storage	1x 480 GB SSD
USB Port	1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP)	5 μs
Firewall Throughput (Packet per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Sec (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users	500
SSL Inspection Throughput (IPS, HTTP)	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	135,000
Application Control Throughput (HTTP 64K)	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Dimensions and Power
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Weight	7.56 lbs (3.43 kg)
Form Factor	Rack Mount, 1 RU
Environment
Power Required	100–240V AC, 50-60
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.3 W / 39.1 W
Heat Dissipation	121.13 BTU/h
Redundant Power Supplies	Yes
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Bài viết Thiết bị Firewall Fortinet FortiGate 101F (FG-101F) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 101F (FG-101F-BDL-950-12)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:48:12 +0000

Firewall-Fortinet-FortiGate-101F-(FG-101F)

Thông số kỹ thuật

Interfaces and Modules
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	4
Console Port	1
Internal Storage	1x 480 GB SSD
USB Port	1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP)	5 μs
Firewall Throughput (Packet per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Sec (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users	500
SSL Inspection Throughput (IPS, HTTP)	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	135,000
Application Control Throughput (HTTP 64K)	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Dimensions and Power
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Weight	7.56 lbs (3.43 kg)
Form Factor	Rack Mount, 1 RU
Environment
Power Required	100–240V AC, 50-60
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.3 W / 39.1 W
Heat Dissipation	121.13 BTU/h
Redundant Power Supplies	Yes
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Bài viết Firewall Fortinet FortiGate 101F (FG-101F-BDL-950-12) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 200F (FG-200F), thiết bị tường lửa đáp ứng cho 250 User

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:46:04 +0000

Firewall-Fortinet-FortiGate-200F-(FG-200F)

Thông số kỹ thuật

System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length	44 x 432 x 342mm
Weight	4.5 kg

Bài viết Firewall Fortinet FortiGate 200F (FG-200F), thiết bị tường lửa đáp ứng cho 250 User đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 200F (FG-200F-BDL-950-12)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:43:51 +0000

Firewall-Fortinet-FortiGate-200F-(FG-200F)

Thông số kỹ thuật

System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length	44 x 432 x 342mm
Weight	4.5 kg

Bài viết Firewall Fortinet FortiGate 200F (FG-200F-BDL-950-12) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 201F (FG-201F)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:41:07 +0000

Firewall-Fortinet-FortiGate-201F-(FG-201F)

Thông số kỹ thuật

Hardware Specifications
GE RJ45 Ports	16
GE RJ45 Management/HA	1 / 1
GE SFP Slots	8
10GE SFP+ FortiLink Slots (default)	2
10GE SFP+ Slots	2
USB Port	1
Console Port	1
Internal Storage	–
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel Mode)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17.01 x 13.47
Height x Width x Length (mm)	44 x 432 x 342
Form Factor (supports EIA / non-EIA standards)	Ear Mount, 1 RU
Weight	9.92 lbs (4.5 kg)
Environment
Power Required	100–240V AC, 50-60 Hz
Maximum Current	100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum)	101.92 W / 118.90 W
Heat Dissipation	405.70 BTU/h
Redundant Power Supplies
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	20–90% non-condensing
Noise Level	49.9 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6

Bài viết Firewall Fortinet FortiGate 201F (FG-201F) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 201F (FG-201F-BDL-950-12)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:38:51 +0000

Firewall-Fortinet-FortiGate-201F-(FG-201F)

Thông số kỹ thuật

Hardware Specifications
GE RJ45 Ports	16
GE RJ45 Management/HA	1 / 1
GE SFP Slots	8
10GE SFP+ FortiLink Slots (default)	2
10GE SFP+ Slots	2
USB Port	1
Console Port	1
Internal Storage	–
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel Mode)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17.01 x 13.47
Height x Width x Length (mm)	44 x 432 x 342
Form Factor (supports EIA / non-EIA standards)	Ear Mount, 1 RU
Weight	9.92 lbs (4.5 kg)
Environment
Power Required	100–240V AC, 50-60 Hz
Maximum Current	100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum)	101.92 W / 118.90 W
Heat Dissipation	405.70 BTU/h
Redundant Power Supplies
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	20–90% non-condensing
Noise Level	49.9 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6

Bài viết Firewall Fortinet FortiGate 201F (FG-201F-BDL-950-12) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 900G (FG-900G)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:36:58 +0000

Thông số sản phẩm

FortiGate 900G	FortiGate 901G
Interfaces and Modules
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Ultra Low Latency Slots	4
Hardware Accelerated 10 GE SFP+ / GE SFP Slots	4
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Slots	16
2.5 GE / GE HA Port	1
GE Management Port	1
USB Ports (Client / Server)	2/2
Console Port	1
Onboard Storage	No	2x 480 GB
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP SX
System Performance — Enterprise Traffic Mix
IPS Throughput	26 Gbps
NGFW Throughput	22 Gbps
Threat Protection Throughput	20 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	164 / 163 / 153 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP	164 / 163 / 153 Gbps
Firewall Latency (64 byte, UDP)	3.78 / 2.5 μs
Firewall Throughput (Packet per Second)	229.5 Mpps
Concurrent Sessions (TCP)	16 Million
New Sessions/Second (TCP)	720 000
Firewall Policies	10 000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	50 000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10 000
SSL Inspection Throughput (IPS, avg HTTPS)	16.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	18 000
SSL Inspection Concurrent Session (IPS, avg HTTPS)	1.6 Million
Application Control Throughput (HTTP 64K)	74.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	96
Maximum Number of FortiAPs (Total / Tunnel)	1024 / 512
Maximum Number of FortiTokens	5000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.5 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight (maximum)	15.98 lbs (7.25 kg)	16.53 lbs (7.5 kg)
Form Factor	Rack Mount, 1RU
AC Power Supply	100–240VAC, 50/60 Hz
AC Current (Maximum)	6A@100VAC
Power Consumption (Average / Maximum)	134 W / 252 W	144 W / 264 W
Heat Dissipation	861 BTU/h	902 BTU/h
Power Supply Efficiency Rating	80Plus Compliant
Redundant Power Supplies (Hot Swappable)	Yes (comes with 2PSU default)
Operating Environment and Certifications
Operating Temperature	32°–113°F (0°–45°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	10%–90% non-condensing
Noise Level	58 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

Bài viết Firewall Fortinet FortiGate 900G (FG-900G) đã xuất hiện đầu tiên vào ngày VNS.

Firewall Fortinet FortiGate 400F (FG-400F-BDL-950-12), thiết bị tường lửa đáp ứng cho 500 -600 user

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:34:42 +0000

Firewall-Fortinet-FortiGate-400F-(FG-400F)

Thông số kỹ thuật

Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces	16
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
GE RJ45 Management Ports	2
USB Ports	1
RJ45 Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP (SX 1 GE)
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	14.11 lbs (6.4 kg)
Form Factor	Rack Mount, 1 RU
AC Power Consumption (Average / Maximum)	154.8 W / 189.2 W
AC Power Input	100–240V AC, 50/60Hz
AC Current (Maximum)	6A
Heat Dissipation	645.58 BTU/h
Power Supply Efficiency Rating	80Plus Compliant
Redundant Power Supplies (Hot Swappable)	Yes (Default dual AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
Operating Temperature	32°–104°F (0°–40°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	5%–90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Airflow	Side and Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Bài viết Firewall Fortinet FortiGate 400F (FG-400F-BDL-950-12), thiết bị tường lửa đáp ứng cho 500 -600 user đã xuất hiện đầu tiên vào ngày VNS.

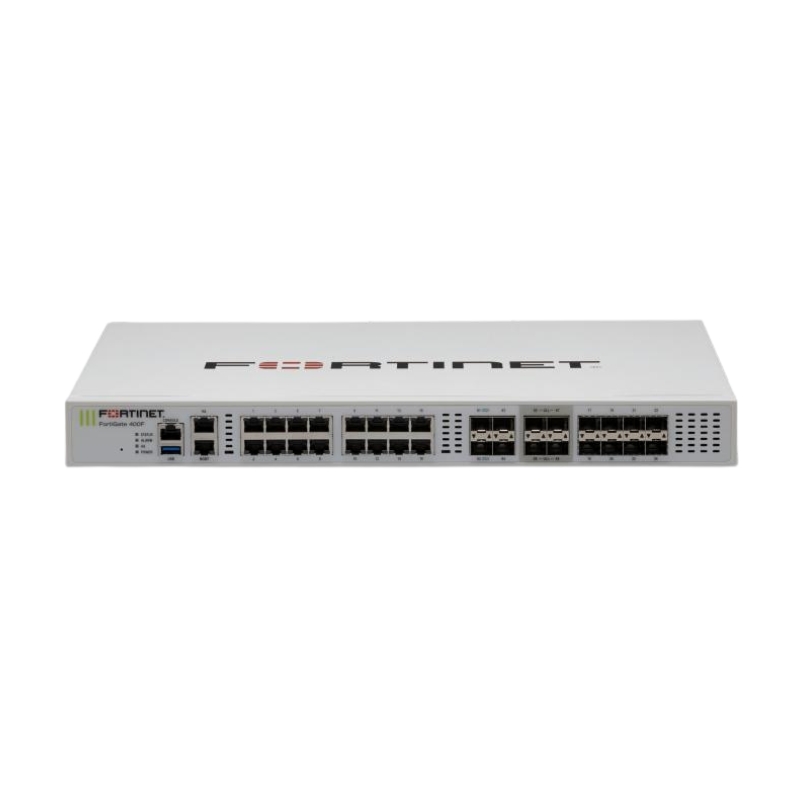

Firewall Fortinet FortiGate FG-401F

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Mon, 01 Dec 2025 08:26:58 +0000

Firewall-Fortinet-FortiGate-401F-(FG-401F)

Thông số kỹ thuật

Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces	16
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
GE RJ45 Management Ports	2
USB Ports	1
RJ45 Console Port	1
Onboard Storage	2x 480 GB SSD
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP (SX 1 GE)
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	14.33 lbs (6.5 kg)
Form Factor	Rack Mount, 1 RU
AC Power Consumption (Average / Maximum)	161.1 W / 196.9 W
AC Power Input	100–240V AC, 50/60Hz
AC Current (Maximum)	6A
Heat Dissipation	671.85 BTU/h
Power Supply Efficiency Rating	80Plus Compliant
Redundant Power Supplies (Hot Swappable)	Yes (Default dual AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
Operating Temperature	32°–104°F (0°–40°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	5%–90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Airflow	Side and Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Bài viết Firewall Fortinet FortiGate FG-401F đã xuất hiện đầu tiên vào ngày VNS.
