Netgate 1100 pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:56:31 +0000

Netgate-1100-pfSense+-Security-Gateway

Thông số kỹ thuật

SoC	Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz
System Memory	1 GB DDR4 RAM on board
Storage	8 GB EMMC
Network Interfaces	1x Marvell 88E6141 networking switch
	3x GbE Ethernet (WAN/LAN/OPT)
	1x Mini PCIe slot(1)
USB	1x USB 3.0
	1x USB 2.0
	1x Micro USB port (console)
Misc	Reset button, heatsink, 3 Status LED
Power	12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive (power over USB not supported)
Power Consumption	3.48W (idle)
Operating Temperature	0°C (32°F) to 45°C (113°F)
Enclosure	Plastic 110 x 84.6 x 31.75 mm (4.33″ x 3.33″ x 1.25″)
Hardware Warranty	1 year standard with purchase

Bài viết Netgate 1100 pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 4100 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:54:37 +0000

Netgate-4100-BASE-pfSense+-Security-Gateway

Thông số kỹ thuật

CPU	Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz (Denverton family)
CPU Cores	Dual Core
Physical Network I/O ports	(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo WAN ports
Physical Network I/O ports	(4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet LAN ports
Storage	16 GB eMMC (onboard – soldered) upgradable to 128 GB NVMe M.2 SSD with 4100 Max
Memory	4 GB DDR4 w/o ECC, single channel
Physical Expansion Card Slots	1x m.2 (Key-B slot) NVMe (PCIe)
Console Port	1x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports	2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
LED	3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
Enclosure	Desktop – Aluminum, plastic, and steel enclosure.
	10 x 7.88 x 1.88 inches
	254 x 200 x 47.63 mm
Mounting	Optional wall or rack mount kit
Cooling	Passive
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector
	– AC Inlet: IEC320-C7 (2 PIN) –
	– Power Cord: One US, UK, EU or ANZ power cord included depending on the regional system SKU on box.
	– US Power Cord: NEMA 1-15-P to IEC320-C7
	– UK Power Cord: BS 1363 to IEC320-C7
	– EU Power Cord: CEE7/16 to IEC320-C7
Environmental	0°C (32°F) to 40°C (104°F) – ambient
Certifications	CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

Bài viết Netgate 4100 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

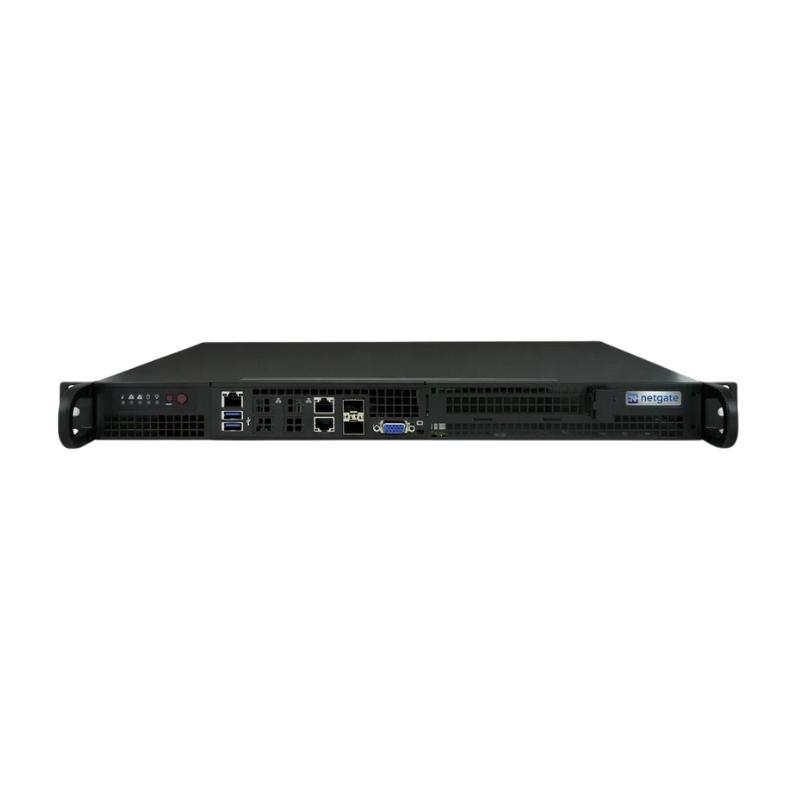

Netgate 1537 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:52:33 +0000

Netgate-1537-BASE-pfSense+-Security-Gateway

Thông số kỹ thuật

CPU	Intel “Xeon-DE” D-1537, 1.7 GHz FCBGA 1667 supported SoC
CPU Cores	Eight Cores, 16 Threads, 35W
Networking	Dual 1GbE RJ45 LAN via Intel® i350-AM2
	Dual 10G SFP+ LAN via SoC
	Virtual Machine Device Queues reduce I/O overhead
	Supports 10GBASE-T, 1000BASE-T
Storage	500 GB M.2 SSD
Memory	8 GB ECC DDR4 RDIMM (expandable to 32 GB)
Expansion	1x PCI-E 3.0 x 16 slot
	M.2 PCI-E 3.0 x4 (SATA support) M Key 2242/2280
	6x SATA3 (6 Gbps) ports via SoC
Other Ports	1x BMC integrated ASPEED AST2400
	1x IPMI RJ45 Dedicated Port (Realtek RTL8201N PHY)
	1x VGA Port (Aspeed AST2400)
	1x SuperDOM power connector
	1x COM
	Headers for TPM, GPIO, SMbus
USB Ports	2x USB 3.0 ports (front)
USB Ports	2x USB 2.0 ports (via header)
LED	Power LED
	Hard drive activity LED
	2x Network activity LEDs
	System Overheat LED
	Information LED (temp., status)
Enclosure	19″ 1U Rack Mount
Form Factor	1U 1.7″x17.2″x9.8″
Cooling	200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
Power	1x SATA DOM power connector
	100-240V, 50-60Hz, 2.6 Amp MAX
	AC Inlet: IEC320-C14 (3 PIN)
	Power Cord: NEMA 5-15P to IEC320-C13
Environmental	0°C to 60°C Operating Temp
Environmental	8% to 90% Operating Relative Humidity (non-condensing)
Power Consumption	20 W (idle)
Certifications	FCC, CE, RoHS, UL, UKCA

Bài viết Netgate 1537 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 4200 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:50:42 +0000

HARDWARE SPECIFICATIONS:

CPU	Intel Atom C1110 with AVX2, 4-core @ 2.1 GHz
CPU Cores	4-Core
Physical Network I/O ports	(4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet LAN ports
Storage	16 GB eMMC (onboard – soldered)
Memory	4 GB LPDDR5
Physical Expansion Card Slots	1x M.2 (B-key slot) USB 1x M.2 (B-key slot) x1 PCIe 3.0, USB 1x M.2 (M-key slot) x4 PCIe 4.0
Console Port	1x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports	1x USB 3.0 jacks (USB-A female) Located on right side rear when viewed from system front
LED	3x 3-color LEDs (RGB) Software / bootloader controllable via GPIO
Enclosure	Desktop – Aluminum, plastic, and steel enclosure. 8.66 x 7.1 x 2.3 inches 220 x 180 x 60 mm
Mounting	Optional wall mount kit
Cooling	Passive – integrated aluminum chassis and heatsink
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector – AC Inlet: IEC320-C7 (2 PIN) – – Power Cord: One US, UK, EU or ANZ power cord included. – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	0°C (32°F) to 40°C (104°F) – ambient
Certifications	CE, CB, FCC (Class B), RoHS, CCATS, UL, RCM, UKCA

Bài viết Netgate 4200 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 1541 MAX pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:49:09 +0000

Bài viết Netgate 1541 MAX pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 2100 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:48:05 +0000

Netgate-2100-BASE-pfSense+-Security-Gateway

Thông số kỹ thuật

CPU	Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
CPU Cores	Dual Core
Networking	One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo) Four 1 Gigabit Ethernet LAN ports (Marvell 88E6141 switch) LAN ports can be repurposed for additional WAN ports
Storage	10.6 GB eMMC (upgradable)
Memory	4 GB DDR4 (not expandable)
Expansion	1x M.2 ‘B’ key sockets (SSD) 1x miniPCIe
Console Port	MiniUSB (console cable included)
USB Ports	1x 2.0 port
LED	3 full color RGB LEDs
Enclosure	Desktop 1.7″ (42.2 mm) tall x 4.25″ (108 mm) deep x 6.8″ (172.7 mm) wide with integrated keyholes for wall mount
Cooling	Passive
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector AC Inlet: IEC320-C7 (2 PIN) One US, UK, EU or ANZ power cord included US Power Cord: NEMA 1-15P to IEC320-C7 UK Power Cord: BS 1363 to IEC320-C7 EU Power Cord: CEE7/16 to IEC320-C7 ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	32°F (0°C) to 122°F (50°C)
Certifications	CE, FCC (Class B), RoHS, UL, RCM, VCCI, UKCA

Bài viết Netgate 2100 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 6100 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:46:13 +0000

Netgate-6100-BASE-pfSense+-Security-Gateway

Thông số kỹ thuật

CPU	Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
CPU Cores	Quad Core
Physical Network I/O ports	(2) 10 Gbps SFP+ cage (WAN)
	(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) “Combo Port” (WAN)
	(4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN)
Storage	16 GB eMMC (onboard – soldered) upgradable to 128 GB NVMe M.2 SSD with 6100 Max
Memory	8 GB DDR4 w/o ECC, single channel
Physical Expansion Card Slots	2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
Physical Expansion Card Slots	1x Mini-PCie Slot (Wi-Fi Only)
Console Port	1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports	2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
LED	3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
Enclosure	Desktop – Aluminum, plastic, and steel enclosure.
	10 x 7.88 x 1.88 inches
	254 x 200 x 47.63 mm
Mounting	Optional wall or rack mount kit
Cooling	Passive
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector. Specifications (not final): – AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	0°C (32°F) to 40°C (104°F) – ambient
Certifications	FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA

Bài viết Netgate 6100 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 8200 MAX pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:44:00 +0000

Thông số kỹ thuật

CPU	Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)
Physical Network I/O ports	(2) 10 Gbps SFP+ WAN ports (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN) Intel i226 ports
Storage	128 GB NVMe M.2 SSD (B+M Key)
Memory	16 GB DDR4 w/o ECC, single channel (soldered down)
Physical Expansion Card Slots
Physical Expansion Card Slots	2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0) 1x Mini-PCIe Slot (Wi-Fi Only)
Console Port	1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports	2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack
LED	3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
Enclosure	1U Rack – Aluminum, plastic, and steel enclosure. 19 x 10 x 1.75 inches 482.6 x 254 x 44.45 mm
Cooling	Active – integrated quiet chassis fan with onboard control
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector. – AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included – US Power Cord: NEMA 1-15-P to IEC320-C7 – UK Power Cord: BS 1363 to IEC320-C7 – EU Power Cord: CEE7/16 to IEC320-C7 – ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
Environmental	0°C (32°F) to 40°C (104°F) – ambient
Certifications	FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA

Bài viết Netgate 8200 MAX pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.

Netgate 8300 BASE pfSense+ Security Gateway

Trường Phan — Mon, 01 Dec 2025 09:41:56 +0000

Cấu hình phần cứng

CPU : CPU Intel Xeon 8 nhân 2.0 GHz. Cung cấp định tuyến 36 Gbps cho lưu lượng iPerf3-bidirectional hàng ngày và thông lượng tường lửa hơn 26 Gbps

Cổng mạng : 11 cổng 1G, 2.5G và 10G độc lập. Tính linh hoạt cổng tối đa – với Ethernet 1G, 2.5G và 10G có thể cấu hình thành WAN hoặc LAN trên sự kết hợp của 11 cổng RJ45 và SFP

Khả năng mở rộng : 1 cổng PCIe 3.0 x8 cho các card có chiều dài bằng một nửa chiều dài và 1 cổng xPCIe 4.0 x16 cho các card có chiều cao bằng ba phần tư chiều dài

Lưu trữ : 512 GB NVMe 2280 M-Key M.2 SSD

Bộ nhớ : 16 GB DDR4, ECC, 2400MHz qua 2x 8 GB (có thể mở rộng lên 32 GB qua 2x 16 GB UDIMM)

Nguồn điện : Hai khay PSU có thể hoán đổi nóng. 1 x PSU 500W bên trong (có thể hoán đổi nóng), đầu vào AC 110V/240V

Làm mát : Hoạt động – 7 quạt khung máy ở phía sau vỏ máy

Bài viết Netgate 8300 BASE pfSense+ Security Gateway đã xuất hiện đầu tiên vào ngày VNS.
