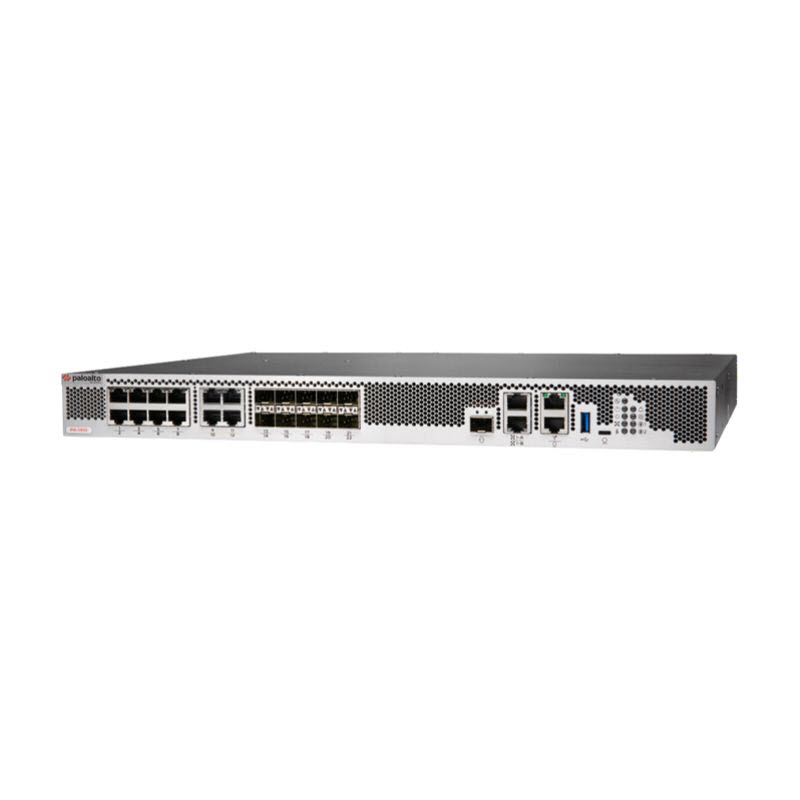

Firewall Palo Alto Networks PA-1410 (PAN-PA-1410)

Trường Phan — Tue, 02 Dec 2025 02:08:04 +0000

Thông số kỹ thuật

Performance and Capacities
Firewall throughput (HTTP/appmix)	8.9/6.8 Gbps
Threat Prevention throughput (HTTP/appmix)	3.3/3.2 Gbps
IPsec VPN throughput	4.6 Gbps
Max sessions	945,000
New sessions per second	100,000
Virtual systems (base/max)	1/6
nterface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	– OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
	– Policy-based forwarding
	– Point-to-Point Protocol over Ethernet (PPPoE)
	– Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
SD-WAN	– Path quality measurement (jitter, packet loss, latency)
	– Initial path selection (PBF)
	– Dynamic path change
IPv6	– L2, L3, tap, virtual wire (transparent mode)
	– Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
	– SLAAC
IPsec VPN	– Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
	– Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
	– Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
VLANs	– 802.1Q VLAN tags per device/per interface: 4,094/4,094
VLANs	– Aggregate interfaces (802.3ad), LACP
Network Address Translation	– NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
	– NAT64, NPTv6
	– Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High Availability	– Modes: active/active, active/passive
High Availability	– Failure detection: path monitoring, interface monitoring
Zero Touch Provisioning (ZTP)	Requires Panorama 9.1.3 or higher that is managing PA-1400 Series with PAN-OS 11.0 or higher
Hardware Specifications
Ports	10/100/1000 (8), 1G/2.5G/5G (4)/PoE, 1G SFP (6), 1G/10G SFP/SFP+ (4)
Management I/O	– 10/100/1000 out-of-band management port (1)
	– HSCI 10 gigabit high availability (1)
	– RJ-45 console port (1)
	– USB port (1)
	– Micro USB console port (1)
Power over Ethernet (PoE)	Total PoE Power Budget: 151W, Maximum load on single port: 90W
Storage Capacity	120 GB SSD
Power Supply (Avg/Max Power Consumption)	AC 450W power supply (1); Optional for purchase 2nd AC 450W power supply (1)
Power Consumption (Avg/Max)	50 W/290 W
Mean Time Before Failure (MTBF)	24 Years
Input Voltage (Input Frequency)	100–240 VAC (50–60 Hz)
Rack Mount Dimensions	1U, 19″ standard rack (1.70″ H x 14.15″ D x 17.15″ W)
Weight (Standalone Device/As Shipped)	15.5 lbs
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	– Operating temperature: 0°C to 40°C at 10,000 feet
Environment	– Non-operating temperature: -4°F to 158°F; -20°C to 70°C
Airflow	Front to back

Bài viết Firewall Palo Alto Networks PA-1410 (PAN-PA-1410) đã xuất hiện đầu tiên vào ngày VNS.

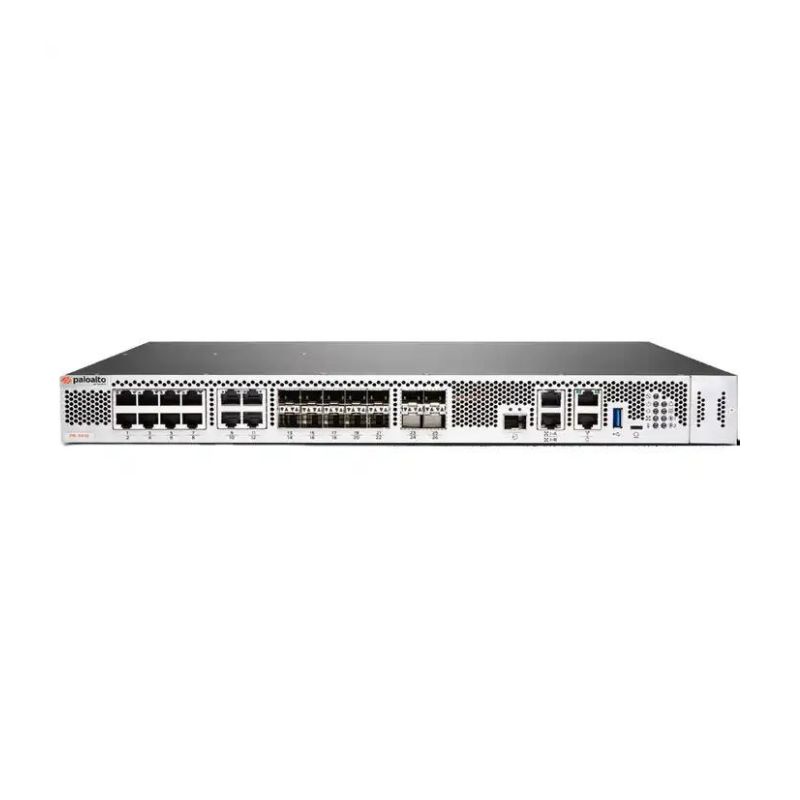

Firewall Palo Alto Networks PA-3410 (PAN-PA-3410-AC)

Trường Phan — Tue, 02 Dec 2025 02:05:55 +0000

Thông số kỹ thuật

SKU	PAN-PA-3410-AC
Performance and Capacities
Firewall throughput (HTTP/appmix)	14.1 / 11.0 Gbps
Threat Prevention throughput (HTTP/appmix)	5.1 / 5.6 Gbps
IPsec VPN throughput	6.8 Gbps
Max sessions	1.4M
New sessions per second	145,000
Virtual systems (base/max)	01-Nov
Hardware Specifications
I/O	1G/2.5G/5G/10G (12), 1G/10G SFP/SFP+ (10), 25G SFP28 (4)
Management I/O	100/1000 out-of-band management port (1)
	100/1000 high availability (2), 10G SFP+ high availability (1)
	RJ-45 console port (1), Micro USB (1)
Storage Capacity	480 GB SSD
Power Supply (Avg/Max Power Consumption)	Redundant 450-watt AC (133W / 190W)
Max BTU/hr	650
Input Voltage Frequency	AC: 100–240 VAC (50/60Hz)
Max Current Consumption	AC: 1.9 A @ 100 VAC, 0.8 A @ 240 VAC
Mean Time Between Failure (MTBF)	22 years
Rack Mount Dimensions	1U, 19” standard rack (14.15” x 17.15” x 1.70”)
Weight (Standalone Device/As Shipped)	15.5 lbs / 25 lbs
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	Operating temperature: 32° to 104° F, 0° to 40° C
	Non-operating temperature: -4° to 158° F, -20° to 70° C
	Humidity tolerance: 10% to 90%
	Maximum altitude: 10,000 ft / 3,048 m
	Airflow: front to back

Bài viết Firewall Palo Alto Networks PA-3410 (PAN-PA-3410-AC) đã xuất hiện đầu tiên vào ngày VNS.

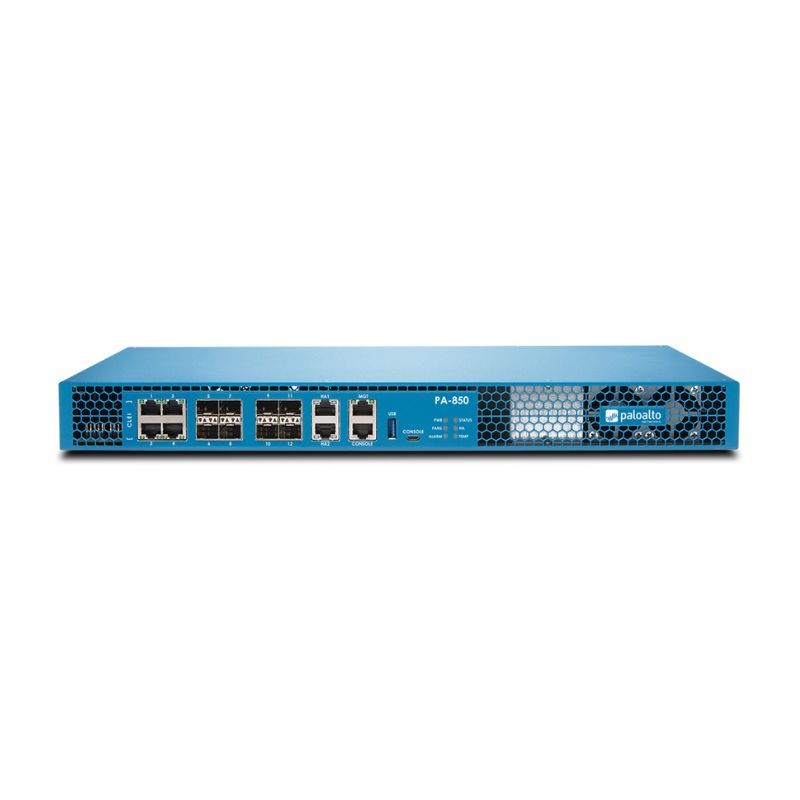

Firewall Palo Alto Networks PA-850 (PAN-PA-850)

Trường Phan — Tue, 02 Dec 2025 02:03:21 +0000

Thông số kỹ thuật

I/O	10/100/1000 (4), Gigabit SFP (8) or 10/100/1000 (4), Gigabit SFP (4), 10 Gigabit SFP+ (4)
Management I/O	10/100/1000 out-of-band management port (1) 10/100/1000 high availability (2) RJ-45 console port (1) USB port (1) Micro USB console port (1)
Storage Capacity	240GB SSD
Power Supply	AC 450 W power supplies (2); one is redundant
Power Consumption	Maximum: 240 W Average: 64 W
Max BTU/hr	256
Input Voltage (Input frequency)	100-240VAC (50-60Hz)
Max Current Consumption	2.0 A @ 100 VAC, 1.0 A @ 240 VAC
Max Inrush Current	1.0 A @ 230 VAC, 1.84 A @ 120 VAC
Rack Mountable (Dimensions)	1U, 19” standard rack (1.75” H x 14.5” D x 17.125” W)
Weight (Stand-Alone Device/As Shipped)	13.5 lbs / 21.5 lbs
Safety	cCSAus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C

Bài viết Firewall Palo Alto Networks PA-850 (PAN-PA-850) đã xuất hiện đầu tiên vào ngày VNS.

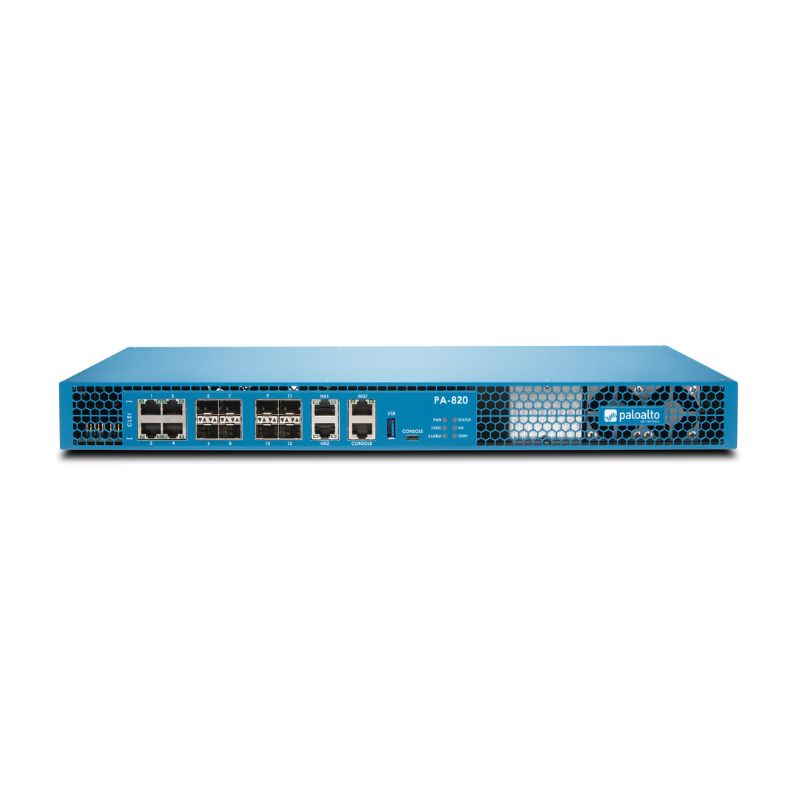

Firewall Palo Alto Networks PA-820 (PAN-PA-820)

Trường Phan — Tue, 02 Dec 2025 02:00:58 +0000

Thông số kỹ thuật

I/O	10/100/1000 (4), Gigabit SFP (8)
Management I/O	10/100/1000 out-of-band management port (1) 10/100/1000 high availability (2) RJ45 console port (1) USB port (1) Micro USB console port (1)
Storage Capacity	240GB SSD
Power Supply	Fixed AC 200 W power supply (1)
Power Consumption	Maximum: 120 W Average: 41 W
Max BTU/hr	256
Input Voltage (Input frequency)	100-240VAC (50-60Hz)
Max Current Consumption	1.0 A @ 100 VAC, 0.5 A @ 240 VAC
Max Inrush Current	0.4 A @ 230 VAC, 0.96 A @ 120 VAC
Rack Mountable (Dimensions)	1U, 19” standard rack (1.75” H x 14” D x 17.125” W)
Weight (Stand-Alone Device/As Shipped)	11 lbs / 18 lbs
Safety	cCSAus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C

Bài viết Firewall Palo Alto Networks PA-820 (PAN-PA-820) đã xuất hiện đầu tiên vào ngày VNS.

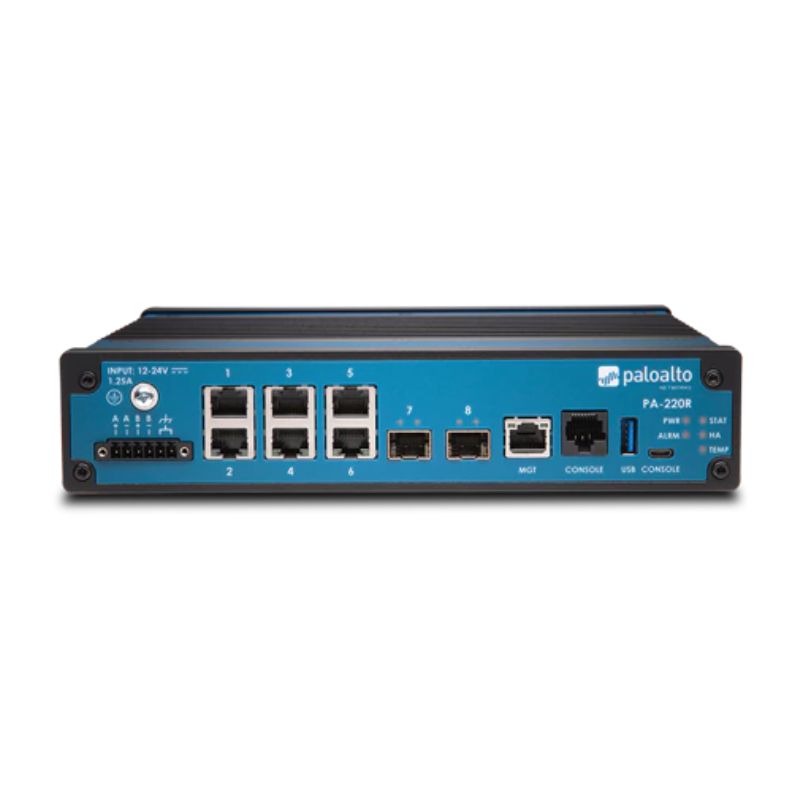

Palo Alto Networks Partner Firewall Palo Alto Networks PA-220R (PAN-PA-220R)

Trường Phan — Tue, 02 Dec 2025 01:58:18 +0000

Thông số kỹ thuật

PAN-PA-220R Specification
Model	PA-220R
Performance and Capacities Specifications
Firewall throughput (App-ID enabled)	500 Mbps
Threat prevention throughput	150 Mbps
IPSec VPN throughput	100 Mbps
New sessions per second	4,200
Max sessions	64,000
Hardware Specifications
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP,static routing
	Policy-based forwarding
	Point-to-point protocol over Ethernet (PPPoE)
	Multicast: PIM-SM, PIM-SSM, IGMP v1, v2 and v3
IPv6	L2, L3, tap, virtual wire (transparent mode)
	Features: App-ID, User-ID, Content-ID, WildFire® and SSL
	SLAAC
IPsec VPN	Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
	Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
	Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
VLANs	802.1q VLAN tags per device/per interface: 4,094/4,094
Network Address Translation	NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
	NAT64, NPTv6
	Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription
High Availability	Modes: active/active, active/passive
High Availability	Failure detection: path monitoring, interface monitoring
I/O	(6) 10/100/1000, (2) SFP
Management I/O	(1) 10/100/1000 out-of-band management port, (1) RJ45 console port,
Management I/O	(1) USB port, (1) Micro USB console port
Storage Capacity	64GB EMMC
Power supply (Avg/Max power consumption)	Dual DC power feeds (13 W/16 W)
Max BTU/hr	55
Input Voltage (Input Frequency)	12-24VDC 1.25A
Max Current Consumption	Firewall – 1.25A@12VDC
Max Current Consumption	Max inrush current 4.9A @ 12VDC
Rack Mount (Dimensions)	2.0” H x 8.66” D x 9.25” W
Rack Mount (Dimensions)	Flexible mounting options including DIN rail, rack and wall mount
Safety	TUV CB report and TUV NRTL
EMI	FCC Class A, CE Class A, VCCI Class A
Environment
Operating temperature	-40° to 158° F, -40° to 70° C
Non-operating temperature	-40° to 167° F, -40° to 75° C Passive cooling

Bài viết Palo Alto Networks Partner Firewall Palo Alto Networks PA-220R (PAN-PA-220R) đã xuất hiện đầu tiên vào ngày VNS.

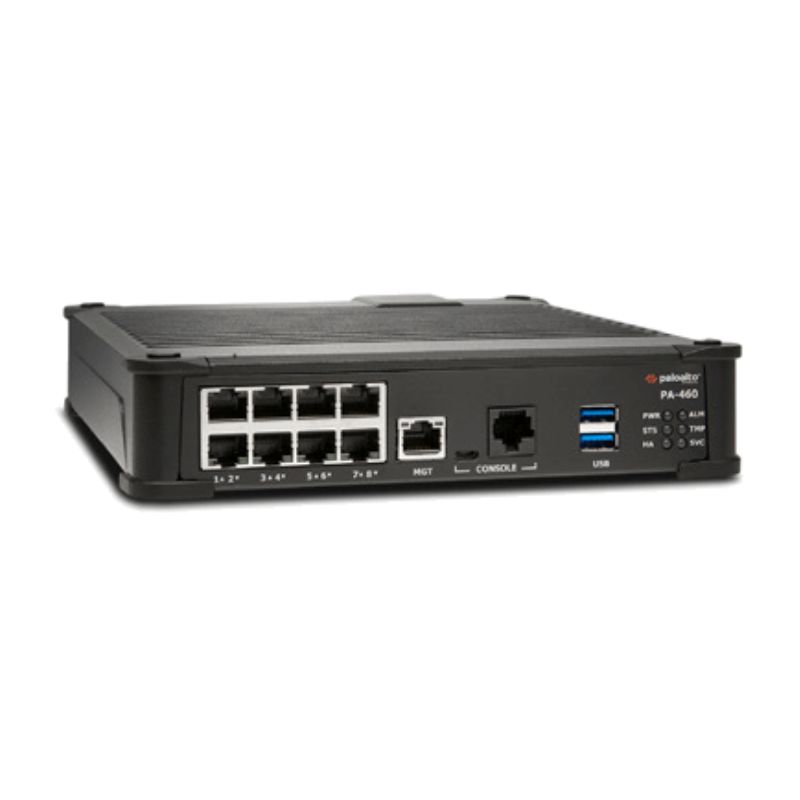

Firewall Palo Alto PA-460 (PAN-PA-460)

Trường Phan — Tue, 02 Dec 2025 01:56:09 +0000

Thông số kỹ thuật

Mã sản phẩm	PAN-PA-460
Hiệu suất sản phẩm
Thông lượng tường lửa (HTTP/appmix)	5.1/4.4 Gbps
Thông lượng phòng chống mối đe dọa (HTTP/appmix)	2.1/2.4 Gbps
Thông lượng IPsec VPN	3 Gbps
Số phiên tối đa	400.000
Phiên mới mỗi giây	73.000
Thông số phần cứng
Vào/ra	8x RJ45 10/100/1000
Quản lý vào/ra	1x Cổng quản lý ngoài băng tần 10/100/1000 1x Cổng bảng điều khiển RJ45 2x Cổng USB 1x Cổng bảng điều khiển Micro USB
Dung lượng lưu trữ	SSD 128 GB
Mức tiêu thụ năng lượng trung bình/tối đa	33/41 W
BTU tối đa/giờ	141
Điện áp đầu vào (Tần số đầu vào)	100–240 VAC (50–60Hz)
Mức tiêu thụ hiện tại tối đa	3.4 A @ 12 VDC
Dòng điện khởi động tối đa	4.2 A
Kích thước (h x d x w)	44.2 x 224.3 x 205 mm
Trọng lượng	2.27 kg

Bài viết Firewall Palo Alto PA-460 (PAN-PA-460) đã xuất hiện đầu tiên vào ngày VNS.

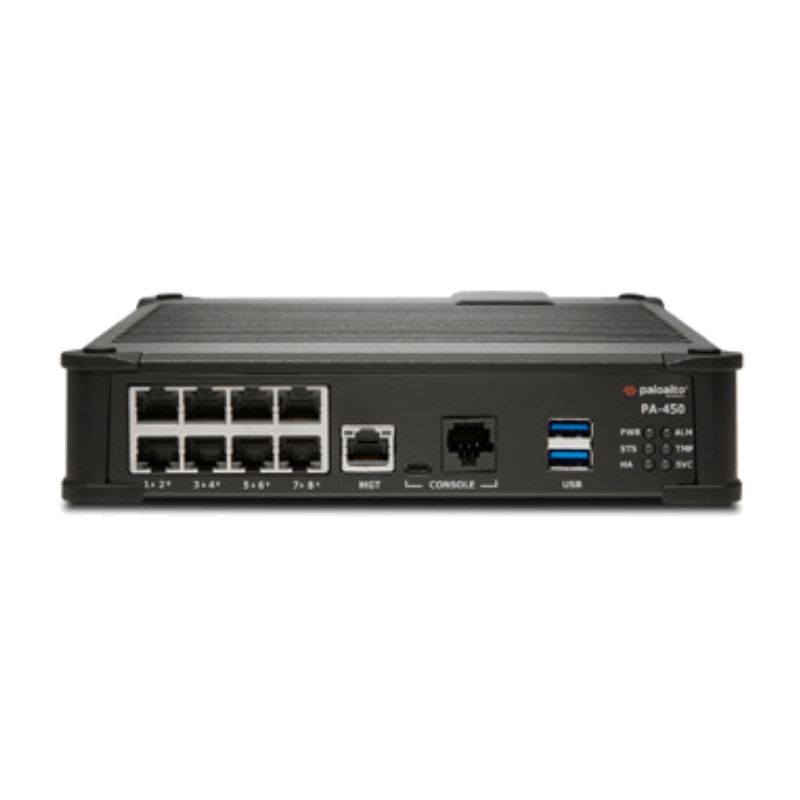

Firewall Palo Alto Networks PA-450 (PAN-PA-450)

Trường Phan — Tue, 02 Dec 2025 01:49:45 +0000

Thông số kỹ thuật

Interfaces
RJ-45	8 ports
RJ-45 Management	1 ports
Console	1 ports
USB	2 ports
Console – micro – USB	1 ports
Dimensions
Depth	22.352 cm
Height	4.318 cm
Weight	2.26796 kg
Width	20.575 cm
Performance and Capacities
Firewall throughput (HTTP/appmix)	3.8/3.2 Gbps
Threat Prevention throughput (HTTP/appmix)	1.6/1.7 Gbps
IPsec VPN throughput	12.2 Gbps
Max sessions	300,000
New sessions per second	52,000
Networking
Form Factor	External
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	PPPoE, IPv6
Routing Protocol	RIP, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, policy-based routing (PBR)
Features	Firewall protection, VLAN support, IPv6 support, URL filtering, fanless, web threat protection, Data Loss Prevention (DLP), SD-WAN support
Encryption Algorithm	Triple DES, MD5, IKE, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit SHA, 512-bit SHA, 384-bit SHA
Compliant Standards	IEEE 802.1Q

Bài viết Firewall Palo Alto Networks PA-450 (PAN-PA-450) đã xuất hiện đầu tiên vào ngày VNS.

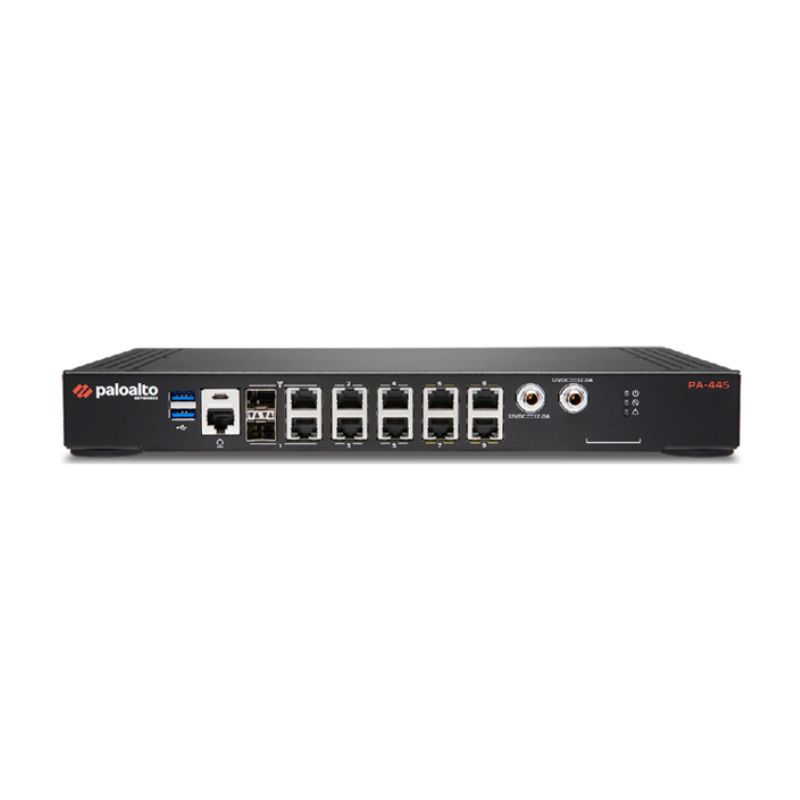

Firewall Palo Alto PA-445 (PAN-PA-445)

Trường Phan — Tue, 02 Dec 2025 01:47:16 +0000

Thông số kỹ thuật

PAN-PA-445 Specification
Model	PA-445
Performance and Capacities Specifications
Firewall throughput (HTTP/appmix)	2.9/2.2 Gbps
Threat Prevention throughput (HTTP/appmix)	0.9/1.0 Gbps
IPsec VPN throughput	1.7 Gbps
Max sessions	200,000
New sessions per second	37,000
Virtual systems (base/max)	1/2
Networking Features
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
	Policy-based forwarding
	Point-to-point protocol over Ethernet (PPPoE)
	Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
SD-WAN	Path quality measurement (jitter, packet loss, latency)
	Initial path selection (PBF)
	Dynamic path change
IPv6	L2, L3, tap, virtual wire (transparent mode)
	Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
	SLAAC
IPsec VPN	Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
	Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
	Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
Hardware Specifications
I/O	(1) SFP/RJ45 combo 10/100/1000 (8) RJ45
Management I/O	SFP/RJ45(1 GB) combo management port (1), RJ45 console port (1), USB port (2), Micro USB console port (1)
Storage Capacity	128 GB eMMC
Power supply (Avg/max power consumption)	29/34 W
Max BTU/HR	117
Input Voltage (Input Frequency)	100–240 VAC (50–60 Hz)
Max Current Consumption	2.9 A @ 12 VDC
Max Inrush Current	3.3 A
Dimensions	1.66″ H x 13″ D x 8.87″ W
Weight (Standalone device/as shipped)	8.7 lbs/12.6 lbs
Safety	cTUVus, CB
EMI	FCC Class B, CE Class B, VCCI Class B
Environment
Operating temperature	32° to 104° F, 0° to 40° C
Non-operating temperature	-4° to 158° F, -20° to 70° C Passive cooling

Bài viết Firewall Palo Alto PA-445 (PAN-PA-445) đã xuất hiện đầu tiên vào ngày VNS.

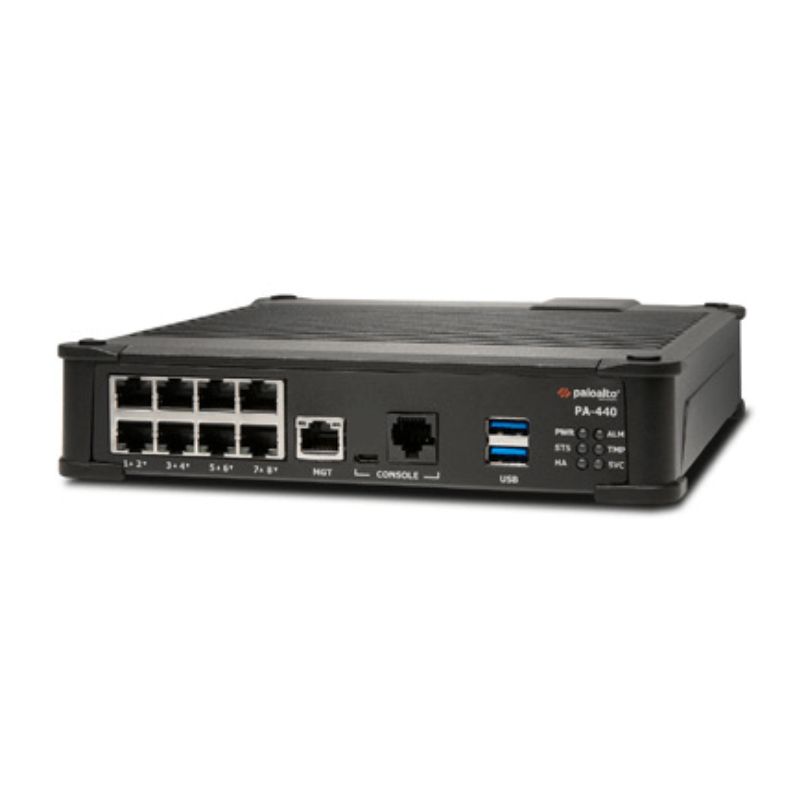

Firewall Palo Alto Networks PA-440 (PAN-PA-440)

Trường Phan — Tue, 02 Dec 2025 01:44:42 +0000

Thông số kỹ thuật

PAN-PA-440 Specification
Model	PA-440
Performance and Capacities Specifications
Firewall throughput (HTTP/appmix)	3.0/2.4 Gbps
Threat Prevention throughput (HTTP/appmix)	0.9/1.0 Gbps
IPsec VPN throughput	1.6 Gbps
Max sessions	200,000
New sessions per second	39,000
Networking Features
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
	Policy-based forwarding
	Point-to-point protocol over Ethernet (PPPoE)
	Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
SD-WAN	Path quality measurement (jitter, packet loss, latency)
	Initial path selection (PBF)
	Dynamic path change
IPv6	L2, L3, tap, virtual wire (transparent mode)
	Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
	SLAAC
IPsec VPN	Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
	Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
	Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
Hardware Specifications
I/O	10/100/1000 (8) RJ45
Management I/O	10/100/1000 out-of-band management port (1), RJ45 console port (1), USB port (2), Micro USB console port (1)
Storage Capacity	128 GB eMMC
Power supply (Avg/max power consumption)	29/34 W
Max BTU/HR	117
Input Voltage (Input Frequency)	100–240 VAC (50–60 Hz)
Max Current Consumption	2.9 A @ 12 VDC
Max Inrush Current	3.3 A
Dimensions	1.74” H x 8.83” D x 8.07” W
Weight (Standalone device/as shipped)	5.0 lbs / 7.8 lbs
Safety	cTUVus, CB
EMI	FCC Class B, CE Class B, VCCI Class B
Environment
Operating temperature	32° to 104° F, 0° to 40° C
Non-operating temperature	-4° to 158° F, -20° to 70° C Passive cooling

Bài viết Firewall Palo Alto Networks PA-440 (PAN-PA-440) đã xuất hiện đầu tiên vào ngày VNS.

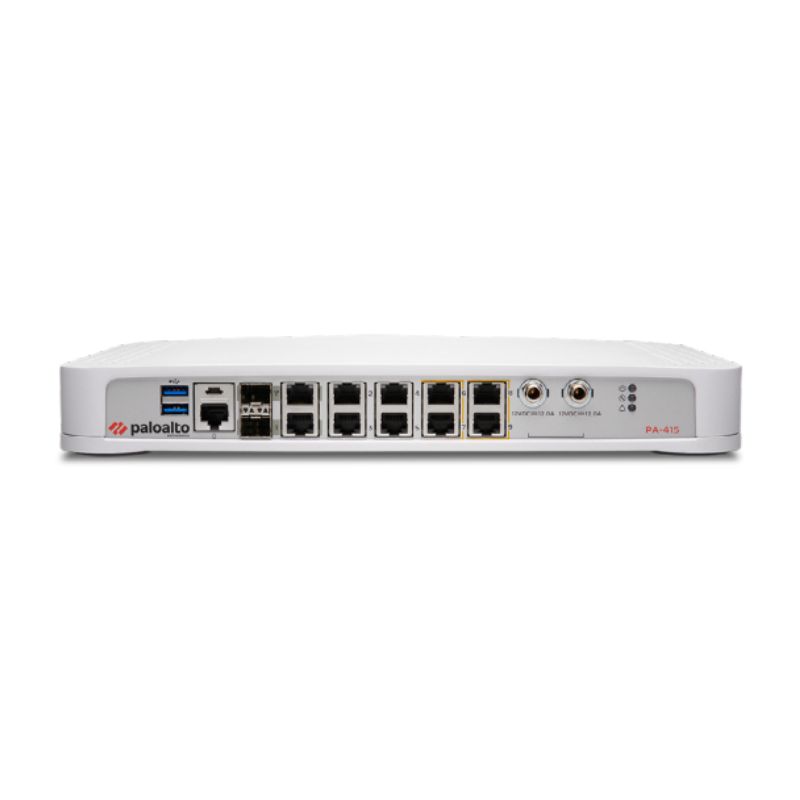

Firewall Palo Alto Networks PA-415 (PAN-PA-415)

Trường Phan — Tue, 02 Dec 2025 01:42:01 +0000

Thông số kỹ thuật

SKU	PAN-PA-415
Performance and Capacities
Firewall throughput (HTTP/appmix)	1.6/1.2 Gbps
Threat Prevention throughput (HTTP/appmix)	0.6/0.685 Gbps
IPsec VPN throughput	0.93 Gbps
Max sessions	64,000
New sessions per second	12,000
Virtual systems (base/max)	1/1
Hardware Specifications
I/O	(1) SFP/RJ45
I/O	(8) RJ45
Management I/O	SFP/RJ45(1 GB) combo management port (1)
	RJ45 console port (1)
	USB port (2)
	Micro USB console port (1)
Power Over Ethernet (PoE)	PoE RJ45 ports (4)
	Total PoE Power Budget: 91 W
	Maximum loading on single port: 60 W
Storage Capacity	128 GB SSD
Power Supply (Avg/Max Power Consumption)	150W
Power Supply (Avg/Max Power Consumption)	29/34W
Max BTU/hr	117
Input Voltage (Input Frequency)	100–240 VAC (50–60Hz)
Max Current Consumption	2.9 A @ 12 VDC
Max Inrush Current	3.3 A
Dimensions	1.73″ H x 13″ D x 9″ W
Weight (Standalone Device/As Shipped)	7.85 lbs/12.2 lbs
Safety	cTUVus, CB
EMI	FCC Class B, CE Class B, VCCI Class B
Environment	Operating temperature: 32° to 104° F, 0° to 40° C
	Non-operating temperature: -4° to 158° F, -20° to 70° C
	Passive cooling

Bài viết Firewall Palo Alto Networks PA-415 (PAN-PA-415) đã xuất hiện đầu tiên vào ngày VNS.
