Bộ phát wifi Extreme AP 7602 (AP-7602-68B30-1-WR)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:26:52 +0000

bo-phat-wifi-extreme-AP-7602-68B30-1-WR

Thông số kỹ thuật

Specifiations
802.11AC Capabilities
• Multi-operational modes including real-time dual-band, dual-concurrent • 2.4GHz + 5GHz concurrent single stream (1×1:2.4G + 1×1:5G) • 2.4GHz or 5GHz dual stream (2×2:2.4G or 2×2:5G) • 20, 40, 80 MHz Channels • AMSDU, AMPDU, RFIS, STBC (when running 2×2 single band), LDPC • MIMO power save (static and dynamic) • Maximal Ratio Combining (MRC) when running single-band mode • 802.11ac Wave 2
Networking
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE, and LLDP
Security	Stateful Firewall, IP fitering, NAT, 802.1x, 802.11i, WPA2, WIDs/WIPs, IPSec, RADIUS svr
QoS	WMM, WMM-UAPSD, 802.1p, COS, Differv. Role-based QoS and packet marking
Radio Specifiations
Mode 2.4GHz	Maximum conducted Tx power: 19dBm
Mode 5GHz	Maximum conducted Tx power: 17dBm
Transmit power increments	1dBm
Operating Channels and Frequencies	• 2.4 GHz Band: Channel 1-13; 2412 to 2472 MHz • 5.2 GHz Band: Channel 36-165; 5180 to 5850 MHz • 2.4 GHz Bluetooth: Channel 0-78 Channel availability depends on local regulatory restrictions
Wireless Medium	DSSS, OFDM, MIMO
Network Standards	WPA2, WMM, WMM-UAPSD, L2TPv3, Client VPN, MESH, Captive Portal server, BT 2.0, BLE 4.0 • 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54 Mbps • 802.11a: 6,9,12,18,24,36,48, and 54 Mbps • 802.11n: MCS HT 0-15 up to 300 Mbps • 802.11ac: MCS VHT 0-9 up to 867 Mbps
Physical Characteristics
Dimensions	5.7 “ x 4” x 1.1”; 145mm x 102mm x 28.6mm
Weight	0.5lbs; 0.32kg
Housing	Plastic with aluminum backplate
LEDs	Green, Amber, Blue
LAN	One IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna	Internal
Console	Not user-accessible
User Environment
Operating Temperature	32°F to 104°F/0°C to 40°C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	95% RH non-condensing
Electrostatic Discharge	15kV air, 8kV contact
DC Specifiations
Typical/Max Power	4.5 watts/6 watts
DC Power	12VDC, 850ma, 2.5mm center positive
Accessories
DC Power Supply	PWR-BGA12V50W0WW
DC Line Cord, 2.5 mm	CBL-DC-387A1-01
Regulatory
UL / cUL 60950-1, IEC / EN60950-1, RoHS. FCC (USA), EU, TELEC
Product SKU
AP-7602-68B30-US	802.11ac wallplate, dual-band radio 1×1; or singleband radio 2×2, internal antenna, BLE, 2xGR (US sku)
AP-7602-68B30-1-WR	802.11ac wallplate, dual-band radio 1×1; or singleband radio 2×2, internal antenna, BLE, 2xGE (WR sku)
AP-7602-68B30-IL	802.11ac wallplate, dual-band radio 1×1; or singleband radio 2×2, internal antenna, BLE, 2xGE (Israel)
Included in Box	Access point, 100mm RJ45 cable, security screw, mounting bracket, QIG

Bài viết Bộ phát wifi Extreme AP 7602 (AP-7602-68B30-1-WR) đã xuất hiện đầu tiên vào ngày VNS.

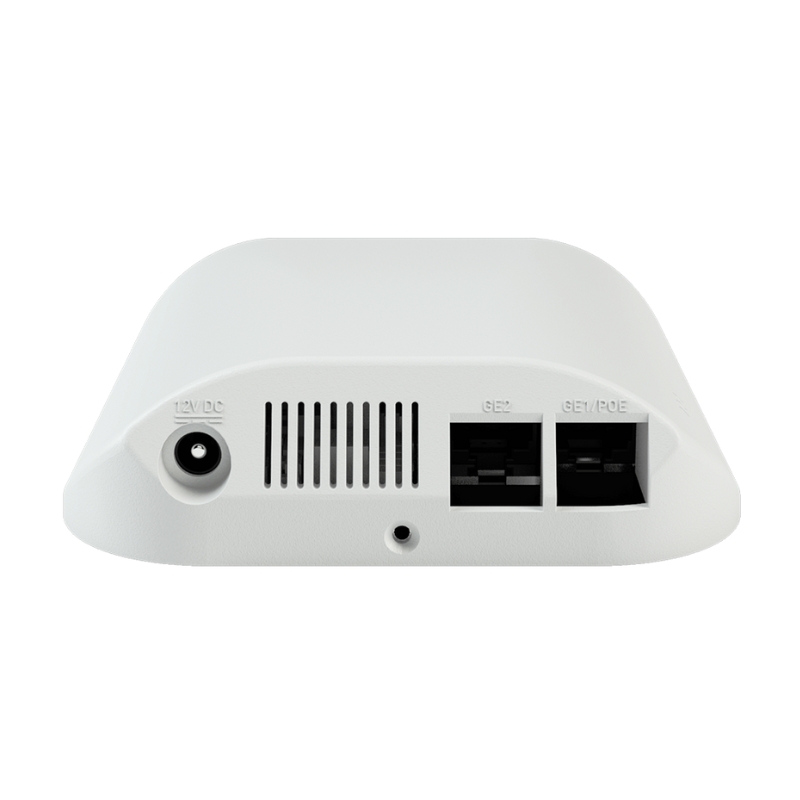

Bộ phát wifi Extreme AP 7612 (AP-7612-68B30-1-WR)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:24:44 +0000

bo-phat-wifi-extreme-AP-7612-68B30-1-WR

Thông số kỹ thuật

Specifiations
802.11AC Capabilities
• 802.11ac 2×2:2, MIMO, MU-MIMO • 256-QAM, HT20/40/80 MHz, BLE • Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC • MIMO Power Save; 802.11ac Tx beamform; MRC
Physical Characteristics
Dimensions	6.1″ x 4.4″ x 1.2″, 155mm x 112mm x 30mm
Weight	0.6 lbs/0.27kg
Housing	ABS Plastic, Aluminum Backplate
Available mounting	Included Wall Mount Bracket
LEDs Activity Indication	3 Side-Mounted LEDs; Radio 1, Radio 2, BLE
LAN Ethernet	2x IEEE 802.3 Gigabit Ethernet Auto-Sensing. PoE-Out on GE2
Antenna	2.4 GHz Band; 5.4dBi; 5GHz Band, 8.5dBi
Console port	Not user-accessible
User Environment
Operating Temperature	32°F to 104°F/0°C to 40°C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	95% RH non-condensing
Electrostatic Discharge	kV Air, 6kV Contact
Power Specifiations
Operating Voltage	PoE-PD Spec: 48VDC; Wall Brick: 12VDC
Operating current	PoE-PD Spec: 200 mA at 48V typical (9.6W); (w/o PoE daisy chain) : Wall Brick: 1.5a
PoE-PD class	802.3af, 802.3at
PoE-out	802.3af When the Input Power is 802.3at. PoE-Out is Only Available When the Input Power is PoE
Networking Specifiation
Layer 2 and Layer 3	Layer 3 Routing, 802.1q, DynDNS, DHCP Server / Cient, BOOTP Client, PPPoE, and LLDP
Security	Stateful Firewall, IP fitering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS)	WMM, WMM-UAPSD, 802.1p, Differv, and TOS
Radio Specifiations
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supporte	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 866.7 Mbp
Operating Channel	• 2.4 GHz Band: Channel 1 through Channel 13 • 5 GHz Band: Channel 36 through Channel 165 *Channel Availability Depends on Local Regulatory Restriction
Antenna Confiuration	2X2 MIMO (transmit/receive on both antennas). Transmit Power Adjustment 1dB Increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Certifiations
Wi-Fi Alliance (WFA)	802.11a/b/g/n/ac
Bluetooth	Bluetooth SIG listed
Regulatory
Product Safety Certifiations	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS- 247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Radio Approvals	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS- 247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Maximum Conducted Transmit Power
AP-7612-680B30	• 2.4 GHz Band: 20 dBm; BLE: 7 dBm • 5 GHz Band: 20 dBm

Bài viết Bộ phát wifi Extreme AP 7612 (AP-7612-68B30-1-WR) đã xuất hiện đầu tiên vào ngày VNS.

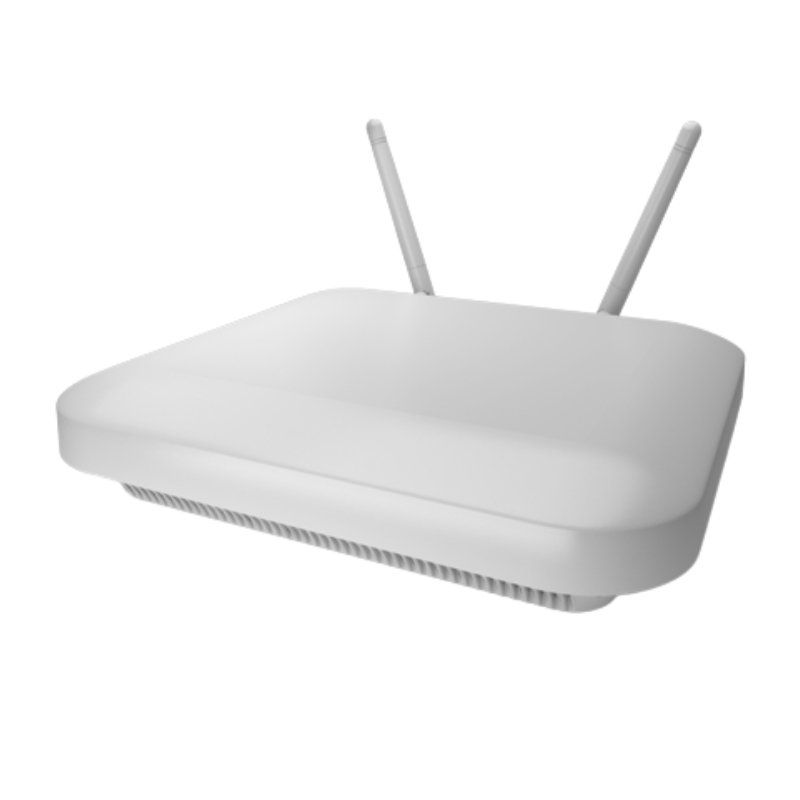

Bộ phát wifi Extreme AP 7522 (AP-7522-68B30-1-WR)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:22:25 +0000

Thông số kỹ thuật

Specifiations
802.11AC Capabilities
• Dual-band radios; supports 256-QAM 2X2 MIMO with 2 Spatial Streams • 20, 40, and 80 MHz Channels • 1.267 Gbps data rates on dual concurrent radio operations • Packet Aggregation (AMSDU, AMPDU) • Reduced Interface Spacing • 802.11 DFS • MIMO Power Save (Static and Dynamic) • Advanced forward error correction coding: STBC, LDPC • 802.11ac transmit beamforming • Maximal Ratio Combining (MRC)
Physical Characteristics
Dimensions	7.1 in. L x 6.5 in. W x 1.6 in. H, 180 mm L x 165 mm W x 41 mm H
Weight	1.8 lbs/0.82 kg
Housing	Plenum-rated housing (UL2043)
Available mounting	No additional hardware required to mount
Confiurations	Above drop ceiling, under ceiling or on wall
LEDs Activity Indication	2 top-mounted LEDs; activity indication
LAN Ethernet	1x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna	4dBi – 2.4 GHz band; 6 dBi – 5GHz band
Antenna Connectors	Two RP SMAs (External only — AP-7522-67040-xx)
Console port	RJ45
User Environment
Operating Temperature	• Internal antennas: 32° F to 104° F/ 0° C to 40° C • External antennas: -4° F to 104° F/ -20° C to 40° C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	85% RH non-condensing
Electrostatic Discharge	• Internal AP-7522-67030-xx: 15kV air, 8kV contact • External AP-7522-67040-xx: 12kV air, 6kV contact
Power Specifiations
Operating Voltage	48V
Operating current	280mA at 48V
Integrated PoE Support	802.3af
Networking Specifiation
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security	Stateful Firewall, IP fitering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot)
Quality of Service (QoS)	WMM, WMM-UAPSD, 802.1p, Differv, and TOS
Radio Specifiations
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD
Data Rates Supporte	802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps, 802.11n: MCS 0-23 up to 300Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps, 802.11ac: MCS 0-9 up to 866.7Mbps
Operating Channel	• 2.4 GHz Band: Channel 1 through Channel 13 • 5 GHz Band: Channel 36 through Channel 165 *Channel Availability Depends on Local Regulatory Restriction
Antenna Confiuration	2×2 MIMO (transmit/receive on both antennas)
Transmit Power Adjustment	1dB increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Certifiations
Wi-Fi Alliance (WFA) certifid 802.11a/b/g/n/ac
Regulatory
Product Safety Certifiations	UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS
Radio Approvals	FCC (USA), EU, TELEC
Accessories
Power Supply	(37215) PWR 12VDC, 2A, 2.5mm x 5.5mm connector
PoE	(PD-3501G-ENT) Single Port 802.3AF Midspan Device
Mounting	• Mounting Plate for Indoor APs (37201) Include in box • Universal Mounting Kit For Ewlan APS (KT-135628-01) • BEAM CLIP for Mounting Plate (BRKT-000147A-01)
Maximum Conducted Transmit Power – One Antenna TX Power
Internal Antennas (AP-7522-67030-xx)	• 2.4 GHz Band : 20 dBm • 5 GHz Band : 20 dBm
External Antennas (AP-7522-67040-xx)	• 2.4 GHz Band : 19 dBm • 5 GHz Band : 18 dBm
Maximum Conducted Transmit Power – Two Antennas TX Power
Internal Antennas (AP-7522-67030-xx)	• 2.4 GHz Band : 23 dBm • 5 GHz Band : 23 dBm
External Antennas (AP-7522-67040-xx)	• 2.4 GHz Band : 22 dBm • 5 GHz Band : 21 dBm

Bài viết Bộ phát wifi Extreme AP 7522 (AP-7522-68B30-1-WR) đã xuất hiện đầu tiên vào ngày VNS.

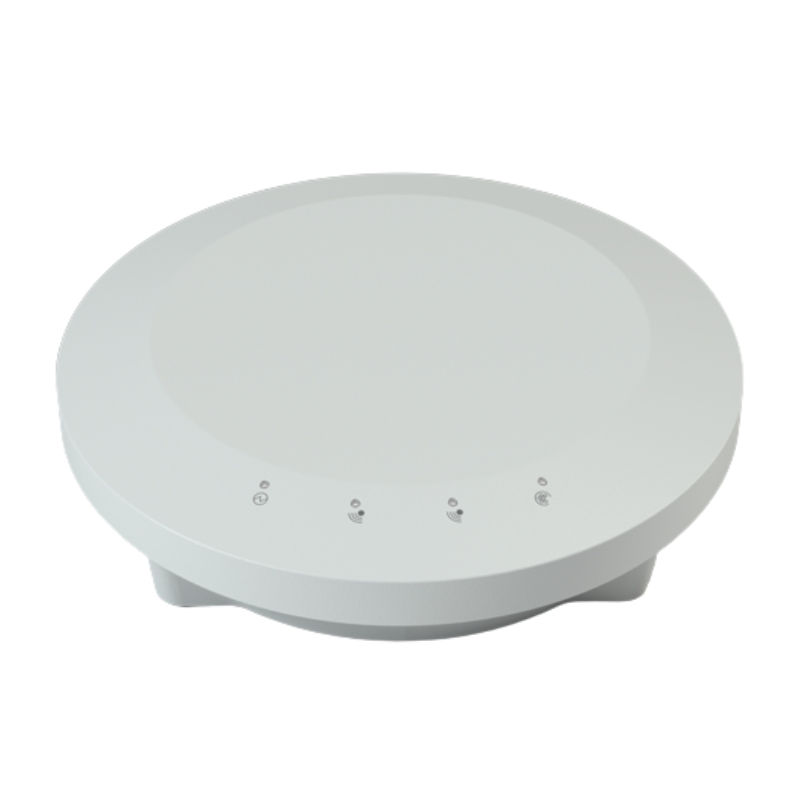

Bộ phát wifi Extreme AP 7632 (AP-7632-68B30-1-WR)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:20:25 +0000

bo-phat-wifi-extreme-AP-7632-68B30-1-WR

Thông số kỹ thuật

Specifiations
802.11AC Capabilities
• 802.11ac 2×2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz • IoT Radio • Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC • Bluetooth Low Energy (BLE) v4.2, and IEEE 802.15.4 compliant
Physical Characteristics
Dimensions	• AP 7632i: 6.3 in x 1.7 in, 161 mm diameter x 48.5 mm • AP 7632e: 6.9 in x 5.0in x 1.2 in, 175 mm x 128 mm x 26.9 mm
Weight	• AP 7632i: .7 lbs, .3 kg • AP 7632e: 1.4 lbs, .6 kg
Housing	Plenum-rated housing (UL2043)
Available mounting	WiNG bracket compatible, Extreme Multi-Tbar, keyhole slots, Wall04
Confiurations	Above drop ceiling, under ceiling or on wall
LEDs Activity Indication	2 top-mounted LEDs; activity indication
LAN Ethernet	1x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna	AP 7632-680B30: 4dBi – 2.4 GHz band; 6 dBi – 5GHz band, IoT 4.1 dBi
Antenna Connectors	AP 7632-680B40: Three RP SMAs: 2 dual band ports, 1 BTLE
Console port	RJ45
USB Port	USB2.0 for purpose-built modules. Available on AP-7632-680B40 model
Warranty	Limited Lifetime Warranty
User Environment
Operating Temperature	• AP-7632-680B30: 32° F to 104° F/ 0° C to 40° C • AP-7632-680B40: -4° F to 131° F/ -20° C to 55° C ambient temperature anywhere -4° F to 140° F/ -20° C to 60° C ambient temperature near sea level
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	0% – 95% (noncondensing)
Electrostatic Discharge	• AP-7632-680B30: 15kV air, 8kV contact • AP-7632-680B40: 12kV air, 6kV contact
Power Specifiations
Operating Voltage	PoE-PD: 48VDC; Wall brick: 12VDC
Operating current	PoE-PD: 230mA at 48V; Wall brick: 1.5a
PoE-PD Class	802.3af, 802.3at
Power Consumption	• AP 7632i Typical: 11 W, Idle (Radios ON): 4.8 W • AP 7632e Typical: 10 W, Idle (Radios ON): 4.8 W w/o USB consumption
Networking Specifiation
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security	Stateful Firewall, IP fitering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service	WMM, WMM-UAPSD, 802.1p, Differv, and TOS
Radio Specifiations
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supporte	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps
Operating Channel	• 2.4 GHz band: channel 1 through channel 13 • 5 GHz band: channel 36 through channel 165
Antenna Confiuration	2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Performance and Capacity
Concurrent Users	256 per radio
SSID	8 per radio, 16 per AP
Certifiations
Wi-Fi Alliance (WFA)	802.11a/b/g/n/ac
Bluetooth	Bluetooth SIG listed
Regulatory
Product Safety Certifiations	IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS 60950.1, RoHS Directive 2011/65/EU
Radio Approvals	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS- 247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/NZS4268 + CISPR32
Maximum Total Conducted Transmit Power One Antenna Tx
Internal Antenna (AP-7632-680B30-xx)	2.4 GHz Band: 23 dBm, 5 GHz Band: 23 dBm, BLE: 3 dB
External Antenna (AP-7632-680B40-xx)	2.4 GHz Band: 20 dBm, 5 GHz Band: 20 dBm, BLE: 3 dBm
Maximum Total Conducted Transmit Power Two Antennas Tx
Internal Antenna (AP-7632-680B30-xx)	2.4 GHz Band: 26 dBm, 5 GHz Band: 26 dBm, BLE: 3 dBm
External Antenna (AP-7632-680B40-xx)	2.4 GHz Band: 23 dBm, 5 GHz Band: 23 dBm, BLE: 3 dBm

Bài viết Bộ phát wifi Extreme AP 7632 (AP-7632-68B30-1-WR) đã xuất hiện đầu tiên vào ngày VNS.

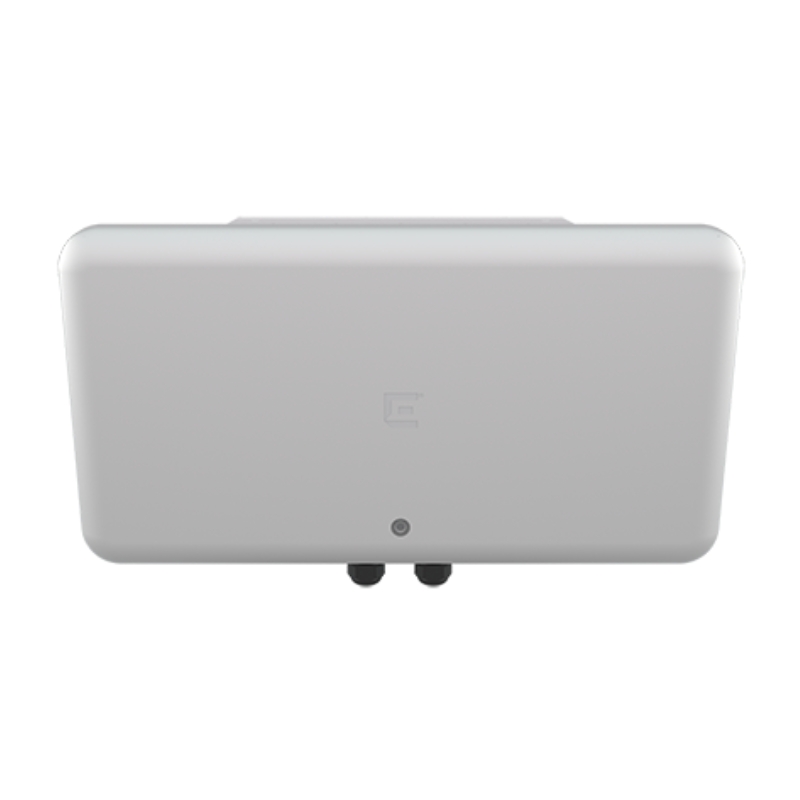

Bộ phát wifi Extreme AP5050D, Wi-Fi 6E

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:18:12 +0000

Thông số kỹ thuật

Specifiations
Radio Specifications
Max Users	• SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps)
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 • TxBF (Transmit Beamforming)
802.11ax	• 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 4800 Mbps) • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IoT Radio
• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
GPS Radio
• Support L1 frequency (1575.42 MHz)
Interfaces
• Eth0 is 5/2.5/1GE with Power over Ethernet (PoE) • Eth1 is 2.5/1GE/100 with PoE power sourcing equipment (PSE) 15.4W when 802.3bt on Eth0
Power Options
Power Draw	802.3at PoE: Typical 21W; Max: 25.5W (802.3at profie) w/o PoE out
Power Draw	802.3bt
Eth0 PoE	5Gbps Ethernet port RJ45
Physical Specifiations AP5050D
Dimensions	11.3″ x 19.1″ x 3.4″ (28.6 cm x 48.4 cm x 8.6 cm)
Weight	9.7 lbs
Security
• Trusted Platform Module(TPM)
Mounting
15 Degree tilt	KT-147407-02
12″ Extension	KT-150173-01
80 Degree tilt + Ex	MBO-ART02/03
Environmental Specifiations
Operating	-40°C to 60°C (-40°F to 140°F )
Storage	-40°C to 70°C (-40°F to 158°F)
Humidity	0% to 95% (non-condensing)

Bài viết Bộ phát wifi Extreme AP5050D, Wi-Fi 6E đã xuất hiện đầu tiên vào ngày VNS.

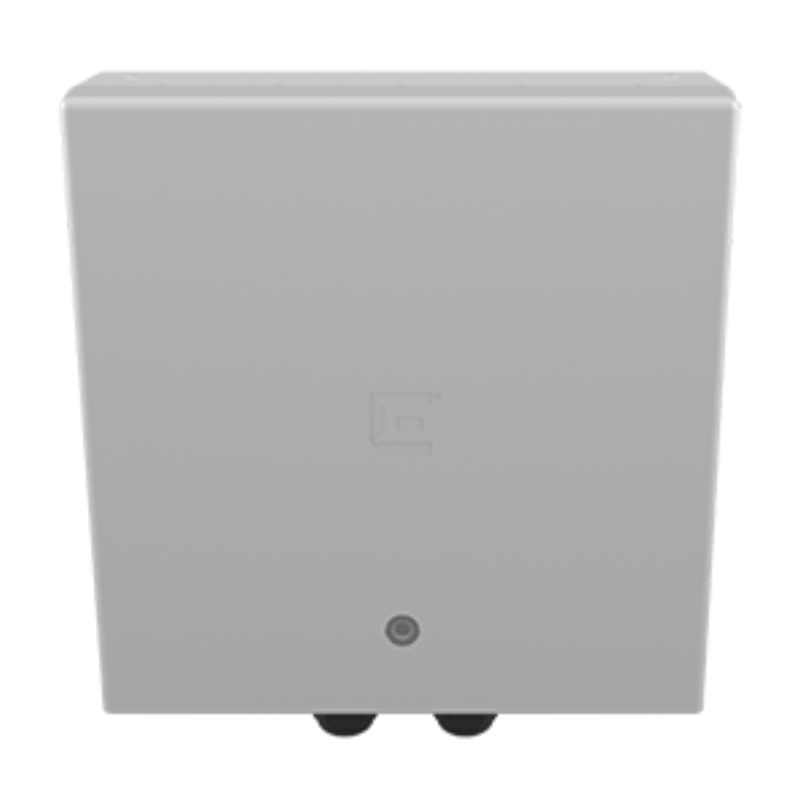

Bộ phát wifi Extreme AP5050U, Wi-Fi 6E

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:16:10 +0000

bo-phat-wifi-extreme-AP5050U

Thông số kỹ thuật

Specifiations
Radio Specifications
Max Users	• SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps)
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 • TxBF (Transmit Beamforming)
802.11ax	• 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 4800 Mbps) • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IoT Radio
• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
GPS Radio
• Support L1 frequency (1575.42 MHz)
Interfaces
• Eth0 is 5/2.5/1GE with Power over Ethernet (PoE) • Eth1 is 2.5/1GE/100 with PoE power sourcing equipment (PSE) 15.4W when 802.3bt on Eth0
Power Options
Power Draw	802.3at PoE: Typical 21W; Max: 25.5W (802.3at profie) w/o PoE out
Power Draw	802.3bt
Eth0 PoE	5Gbps Ethernet port RJ45
Physical Specifiations AP5050U
Dimensions	11.3″ x 10″ x 3″ (28.6 cm x 25.4 cm x 7.cm)
Weight	7.4 lbs
Security
• Trusted Platform Module(TPM)
Mounting
15 Degree tilt	KT-147407-02
12″ Extension	KT-150173-01
80 Degree tilt + Ex	MBO-ART02/03
Environmental Specifiations
Operating	-40°C to 60°C (-40°F to 140°F )
Storage	-40°C to 70°C (-40°F to 158°F)
Humidity	0% to 95% (non-condensing)

Bài viết Bộ phát wifi Extreme AP5050U, Wi-Fi 6E đã xuất hiện đầu tiên vào ngày VNS.

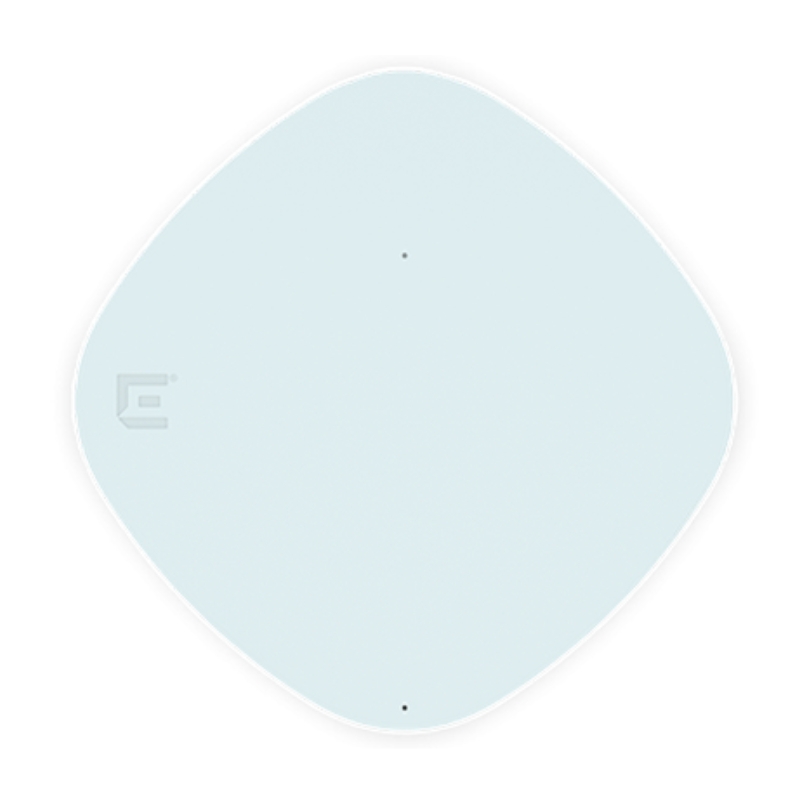

Bộ phát wifi Extreme AP5010, Wi-Fi 6E

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:13:53 +0000

bo-phat-wifi-extreme-AP5010

Thông số kỹ thuật

Specifiations
Radio Specifications
Max Users	• SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps)
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 • TxBF (Transmit Beamforming)
802.11ax	• 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 4800 Mbps) • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IoT Radio
• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
Interfaces
• Eth0, Eth1: (2) Wired Ethernet ports (RJ-45) • 100/1000/2500/5000Mbps auto-sensing link speed Ethernet port, PoE PD • 100/1000/2500Mbps auto-sensing link speed Ethernet port, optional PoE 15.4W PSE mode requires 802.3bt on Eth0) • 802.3az Energy Effient Ethernet(EEE) • USB 2.0, Type A, 5V/500mA
Power Options
Power Draw 802.3at PoE	Typical 21W; Max: 25.5W (802.3at profie) w/o PoE out
Power Draw 802.3bt	PoE out enable with USB
Gigabit Ethernet port	RJ45
Physical Specifiations
Dimensions	9.5″ x 9.5″ x 1.5″ (243mm x 243mm x 38mm)
Weight	7.4 lbs
Security
• Kensington lock slot • Trusted Platform Module(TPM)
Internal Antennas
• (4) Dual Banded 2.4 GHz and 5 GHz • (4) Single band 6 GHz • (2) 5 GHz Sensor • (2) 6 GHz Sensor
Mounting
• AP support 15/16 flsh ceiling tile include in box • Wall mount included in box or sold as an accessory • Ceiling Tile Recessed 15/16 sold as accessory • Beam sold as an accessory • Junction Box sold as an accessory • IL or 9/16 t-bar sold as an accessory • SL (Silhouette) sold as an accessory • Wing Main Plate adaptor sold as an accessory • Built in slot for Kensington
Environmental Specifiations
Operating AP5010	0 to 50°C (0 to 122 °F)
Storage	40 to 70°C (32 to 158 °F)
Humidity	0% to 95% (non-condensing)

Bài viết Bộ phát wifi Extreme AP5010, Wi-Fi 6E đã xuất hiện đầu tiên vào ngày VNS.

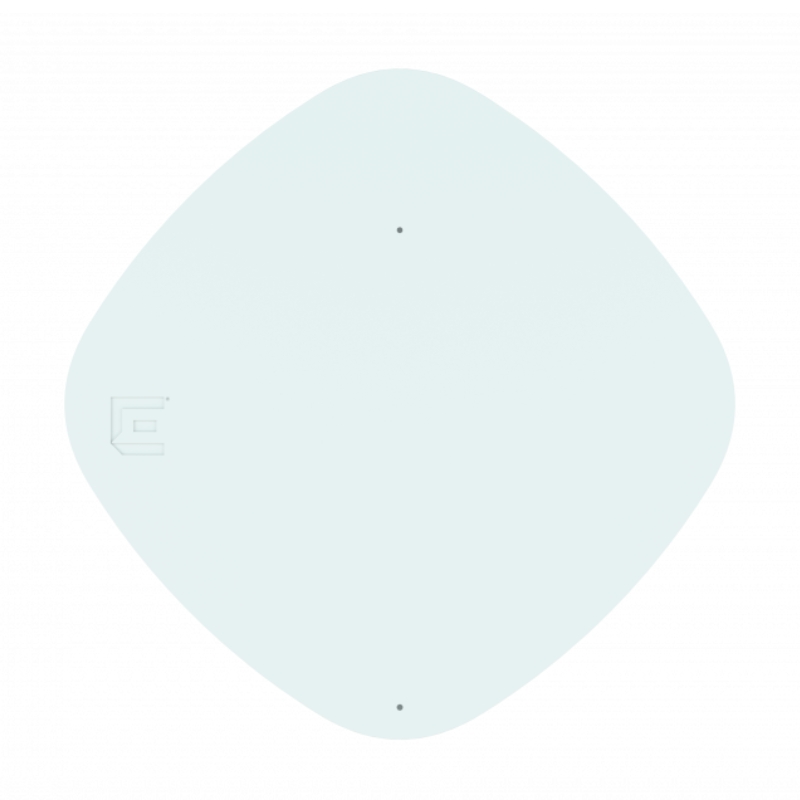

Bộ phát wifi Extreme AP4000, Wi-Fi 6E

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:11:45 +0000

bo-phat-wifi-extreme-AP4000

Thông số kỹ thuật

Specifiations
Radio Specifications
Max Users	• SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps)
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 • TxBF (Transmit Beamforming)
802.11ax	• 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 4800 Mbps) • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IoT Radio
• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
Interfaces
• Eth0, Eth1: (2) Wired Ethernet ports (RJ-45) • (1) 100/1000/2500Mbps auto-sensing link speed Ethernet port, POE 802.3at • (1) 10/100/1000 Mbps auto-sensing link speed Ethernet port • 802.3az Energy Effient Ethernet(EEE) • USB 2.0, Type A, 5V/500mA
Power Specifiations
• IEEE 802.3at PoE Powe
Power Options
Power Draw	Typical: 12.3W; Max: 13.8W (w/o USB) Typical: 15W; Max: 16.6W (w USB)
802.3at	Power over Ethernet (PoE) capable
Gigabit Ethernet port	(RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
Physical
Dimensions	9.5″ x 9.5″ x 1.5″ (243mm x 243mm x 38mm
Weight	2.9 lbs
	• Kensington lock slot
	• Trusted Platform Module(TPM)
Internal Antennas	• (2) Integrated single band, 5.925-7.125 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for sensor • (1) Integrated dual band, 2.4-2.5 GHz omnidirectional for Io
Mounting
• AP support 15/16 flsh ceiling tile include in box • Wall mount included in box or sold as an accessory • Ceiling Tile Recessed 15/16 sold as accessory • Beam sold as an accessory • Junction Box sold as an accessory • IL or 9/16 t-bar sold as an accessory • SL (Silhouette) sold as an accessory • Wing Main Plate adaptor sold as an accessory • Built in slot for Kensington
Environmental
Operating AP4000	0 to 50°C
Storage	40 to 70°C
Humidity	0% to 95% (non-condensing)

Bài viết Bộ phát wifi Extreme AP4000, Wi-Fi 6E đã xuất hiện đầu tiên vào ngày VNS.

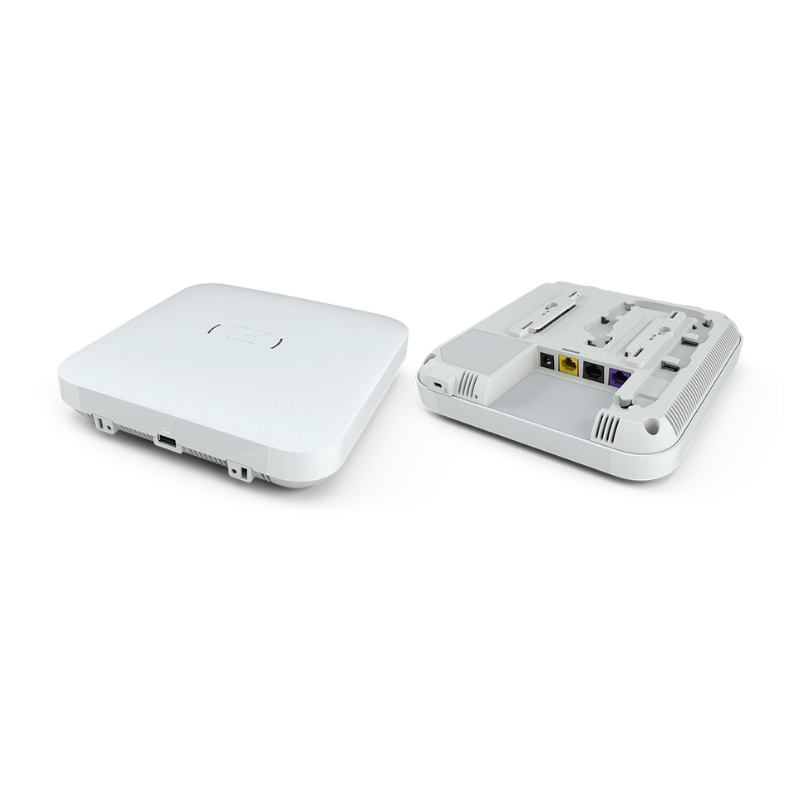

Bộ phát wifi Extreme AP505i, Wi-Fi 6

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:09:35 +0000

bo-phat-wifi-extreme-AP505i

Thông số kỹ thuật

Specifiations
Radio Specifications
• SSID per Radio/Total: 8/16 • Users per Radio/total: 256/512 • TPM (Trusted Platform Module)
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation • CSD and CDD
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS9 (6.5MBps – 800Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio (MRC) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF (Transmit Beamforming)
802.11ax	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 4800 Mbps) • 2.4G: HE0-HE11 (8Mbps – 1148 Mbps) • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO (MRC) • TxBF (Transmit Beamforming)
Interfaces
• Interfaces • (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port (802.3bz supported) • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 • USB3.0, Type A, 0.5A
Power Specifiations
• Power Draw: Typical: 18 W; Max: 22 W • 802.3at Power over Ethernet (PoE) capable (Full functionality) • Gigabit Ethernet port (RJ-45 power input pins: • Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector (Reduced Functionality)
Physical
HxWxD	8.26″ x 8.26″ x 1.89″ (210mm x 210mm x 48mm)
Weight	3.21 lbs (1.45 kg)
Antennas
• AP 505i – Internal Antennas • (4) Integrated single band, 2.4-2.5 GHz omnidirectional antennas • (4) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Mounting
• Wing Bracket Compatible • Extreme Multi-Tbar • Kensington Lock
Security
WPA, WPA2(AES), WPA3, 802.11i, 802.11x, IPSec, IKEv2, PKCS#10, x509 DER / PKCS #12 SSL
Environmental
Operating	0 to +40°C
Storage	-40 to +70°C
Humidity	0% to 95% (non-condensing)
Electrostatic Discharge	15kV air, 8kV contact

Bài viết Bộ phát wifi Extreme AP505i, Wi-Fi 6 đã xuất hiện đầu tiên vào ngày VNS.

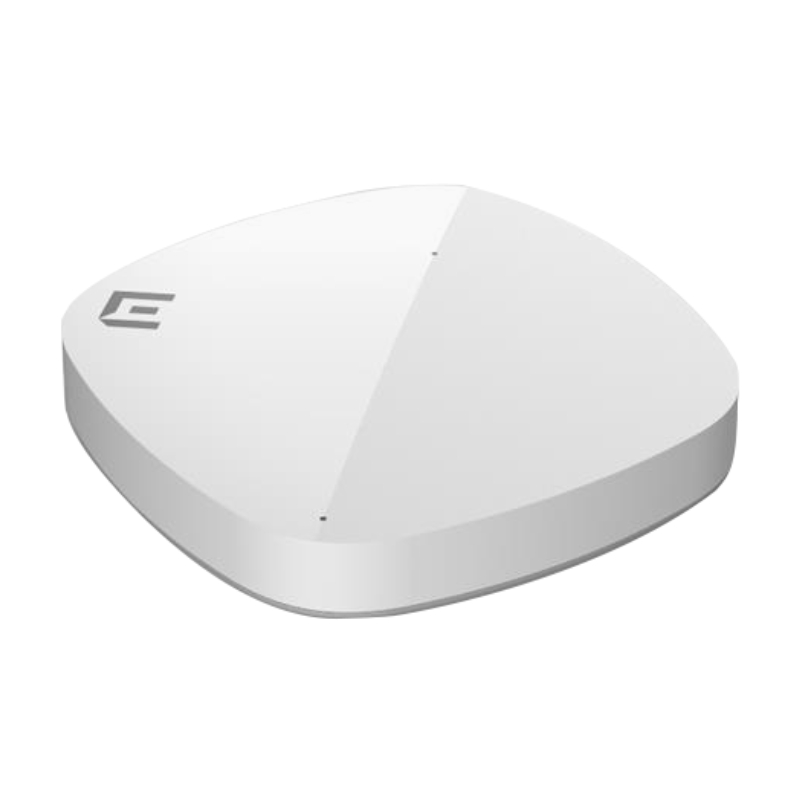

Bộ phát wifi Extreme AP410C, Wi-Fi 6

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 08:07:09 +0000

bo-phat-wifi-extreme-AP410C

Thông số kỹ thuật

Specifiations
Radio Specifications
Max Users	• SSID per Radio/Total: 8/16 • Users per Radio/total: 512/1024
802.11a	• 5.150–5.850 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b	• 2.4–2.5 GHz Operating Frequency • Direct-Sequence Spread-Spectrum (DSSS) Modulation • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	• 2.4–2.5 GHz Operating Frequency • Orthogonal Frequency Division Multiplexing (OFDM) Modulation • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation
802.11ac	• 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS31 (6.5MBps – 600Mbps) • 5G: 4×4 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2×2 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF ( Transmit Beamforming)
802.11ax	• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 5G: HE0-HE11 (8 Mbps – 4800 Mbps). • 2.4G: HE0-HE11 (8Mbps – 574 Mbps). • 4×4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz • 2×2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz • HE20/HE40/HE80/HE160 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IOT Radio
• BLE 5 Radio Bluetooth® Low Energy (BLE)
Interfaces
• (1) 100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE (Power over Ethernet 802.3at) Port • (1) 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45 • USB 2.0, Type A , 5V, 0.9A
Power Specifiations
• IEEE 802.3at PoE Power
Power Options
• Power Draw: Typical: 17.69; Max: 18.74 (w/o USB) Typical: 22.69; Max: 23.74 (w USB) • 802.3at Power over Ethernet (PoE) capable • Gigabit Ethernet port (RJ-45 power input pins: • Wires 4,5,7,8 or 1,2,3,6) • 802.3af Power over Ethernet injector
Physical
HxWxD	8″ x 8″ x 1.8″ (205mm x 205mm x 37mm)
Weight	2 lbs (0.9 kg)
	TPM chip
Internal Antennas
• (3) Integrated single band, 5.1-5.8 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional • (1) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for BLE1 and WiFi 5G • (1) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for sensor
Mounting
• AP support 15/16 flsh ceiling tile included in the box • Wall Mount sold as an accessory • Ceiling Tile Recessed 15/16″ sold as an accessory • Built-in slot for Kensington type locks
Environmental
Operating	0 to +40°C
Storage	-40 to +70°C
Humidity	0% to 95% (non-condensing)

Bài viết Bộ phát wifi Extreme AP410C, Wi-Fi 6 đã xuất hiện đầu tiên vào ngày VNS.
