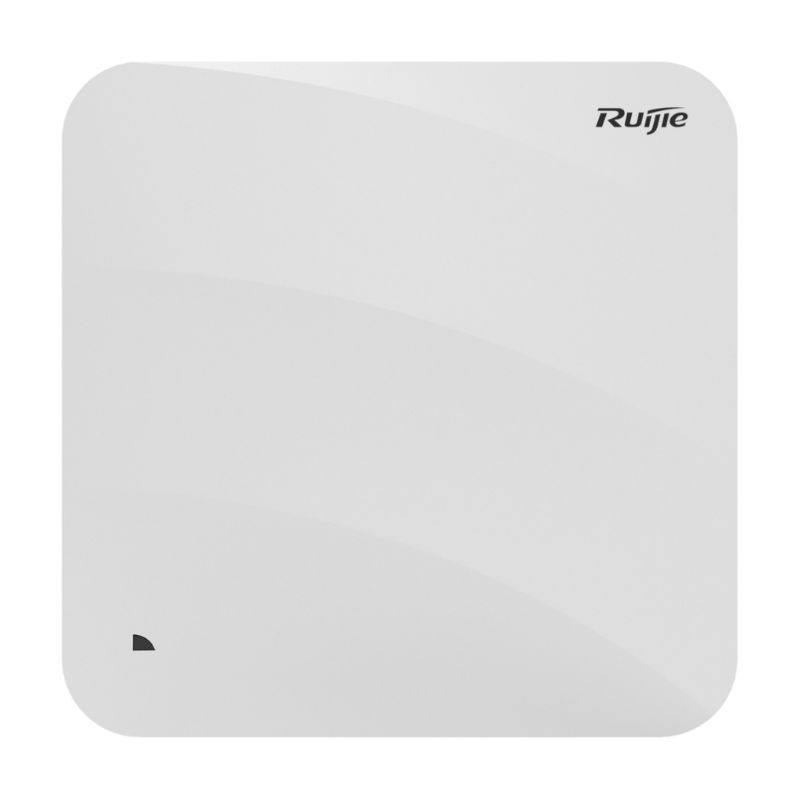

Bộ phát wifi Ruijie RG-AP810-L

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 04:04:45 +0000

Thông số kỹ thuật

Dimensions and Weight
Unit dimensions (W x D x H)	220 mm x 220 mm x 49 mm (8.7 in x 8.7 in x 2.0 in)
Shipping dimensions (W x D x H)	507 mm x 319 mm x 278 mm (20.0 in x 12.6 in x 11.0 in)
Unit weight	Device: 0.6 kg (1.33 lbs) Mounting bracket: 0.07 kg (0.15 lbs)
Shipping weight	1.04 kg (2.29 lbs)
Mounting	Wall/Ceiling-mount (A mounting bracket is delivered with the main unit)
Lock option	Kensington lock and securing latch
Wi-Fi Radio
Radio design	Dual-radio Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Antenna type	Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Bluetooth Radio
Bluetooth	Bluetooth 5.1
Antenna type	1 x onboard built-in omnidirectional antenna
Max. antenna gain	2.4 dBi, with a downtilt angle of roughly 30 degrees
Ports
Fixed service port	Uplink: 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation ● Compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE
Fixed management Port	1 x RJ45 console port (serial console port)
Status LED	1 x multi-color system status LED
Button	1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings.
WLAN
Max. number of associated STAs	256 (up to 128 STAs per radio, for General Usage) 64 (up to 32 STAs per radio, for HD Video)
Max. number of BSSIDs	32 (up to 16 BSSIDs per radio)
Power Supply and Consumption
Input power supply	The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++). Note: ● If both DC power and PoE are available, DC power is preferred.
Power consumption	Max power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W

Bài viết Bộ phát wifi Ruijie RG-AP810-L đã xuất hiện đầu tiên vào ngày VNS.

Bộ phát wifi Ruijie RG-AP820-L(V3)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 04:01:56 +0000

Thông số kỹ thuật

Physical
Dimensions (W × D × H)	220×220×49mm
Weight	0.6kg
Installation	Ceiling / Wall
Anti-theft Lock	Support
Radio
Radio	Dual-radio dual-band: Radio1: 2.4GHz 11ax, 2×2 MIMO Radio2: 5GHz 11ax, 2×2 MIMO
Max Throughput	Radio1: 2.4GHz, 0.574Gbps Radio2: 5GHz, 2.402Gbps Maximum throughput per AP: 2.4GHz+5GHz, 2.976Gbps
Antenna Type	Integrated Omnidirectional
Antenna Gain	2.4GHz: 2dBi 5GHz: 2dBi
Transmit Power	20dBm
Adjustable Power	1dBm
Interfaces
Interfaces	1 x 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af/at) Full Spectrum Operation in IEEE 802.3af Mode 1 x 1G/2.5G SFP Port
Management Port	1 RJ45 Console Port
LED Indicator	1 LED Indicator
Reset Button	Support
Power
Power Supply	Local Power Supply (DC 48V/0.6A) PoE (IEEE 802.3af Standard) – Full Spectrum Operation
Power Consumption	12.95W
Environment
Temperature	Operating Temperature: -10°C~50°C Storage Temperature: -40°C~70°C
Humidity	Operating Humidity: 5%~95% (non-condensing) Storage Temperature: 5%~95% (non-condensing)

Bài viết Bộ phát wifi Ruijie RG-AP820-L(V3) đã xuất hiện đầu tiên vào ngày VNS.

Bộ phát wifi Ruijie RG-AP820-L(V2)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:59:04 +0000

Thông số kỹ thuật

Hardware specifications
Radio	Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO
Protocol	Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands	802.11b/g/n/ax ：2.4G ~ 2.483GHz 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)
Spatial Streams	Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz
Max Throughput	Maximum throughput (5G+5G mode) per AP: 2.4Gbps Radio1：5G low band 1.2Gbps Radio2：5G high band 1.2Gbps 2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps Radio1：2.4G 0.574Gbps Radio2：5G 1.2Gbps
Antenna	Integrated antenna design
Antenna Gain	2.4G: 3dBi 5G: 3dBi
Service Ports	1 10/100/1000M Ethernet ports, PoE In
Management Port	1 console port
Reset Button	Support
Anti-theft Lock	Support
LED Indicator	1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)
Transmit Power	≤100mw（20dBm） (vary depending on different countries)
Adjustable Power	1dBm
Power Supply	Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed） PoE (802.3af) – full spectrum operation
Power Consumption	＜12.95W
Physical Specifications
Temperature	Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C
Humidity	Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing)
Installation Mode	Ceiling/wall-mountable
Dimensions (W x D x H)	153mm ×193mm x26mm（Height of the AP only, excluding the mount kit）
Weight	≤0.5kg (include mount kit)
Software Specifications
WLAN
Maximum clients per AP	1024 (Recommended Client: 64)
BSSID capacity	Up to 32
Data encryption	WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）
IP
IPv4 and IPv6 address	Support
Multicast routing	Multicast to unicast conversion
DHCP service	DHCP Snooping, Option 82, Server, Client

Bài viết Bộ phát wifi Ruijie RG-AP820-L(V2) đã xuất hiện đầu tiên vào ngày VNS.

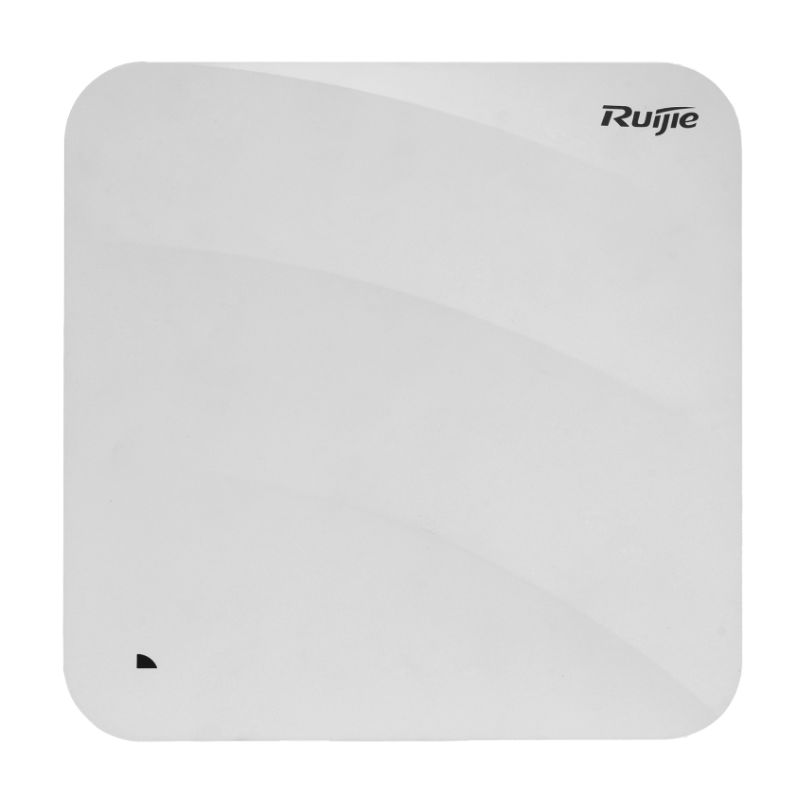

Bộ phát wifi Ruijie RG-AP840-L

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:56:34 +0000

Thông số kỹ thuật

Hardware specifications
Radio	Dual-radio dual-band（2.4G+5G）：2.4G 2×2 MIMO + 5G 4×4 MIMO
Protocol	Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands	802.11b/g/n: 2.4G ~ 2.483GHz 802.11a/n/ac/ax: 5.150 ~ 5.350GHz, 5.47 ~ 5.725GHz, 5.725 ~ 5.850GHz (vary depending on different countries)
Spatial Streams	Up to 6: 2×2:2 in 2.4GHz, 4×4:4 in 5GHz
Max Throughput	Maximum throughput of 2.4G: 400Mbps Maximum throughput of 5G: 4.8Gbps Maximum throughput per AP: 5.2Gbps
Modulation	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps,D QPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM)
Antenna	Integrated antenna design
Antenna Gain	2.4G: 3dBi
	5G: 3dBi

Bài viết Bộ phát wifi Ruijie RG-AP840-L đã xuất hiện đầu tiên vào ngày VNS.

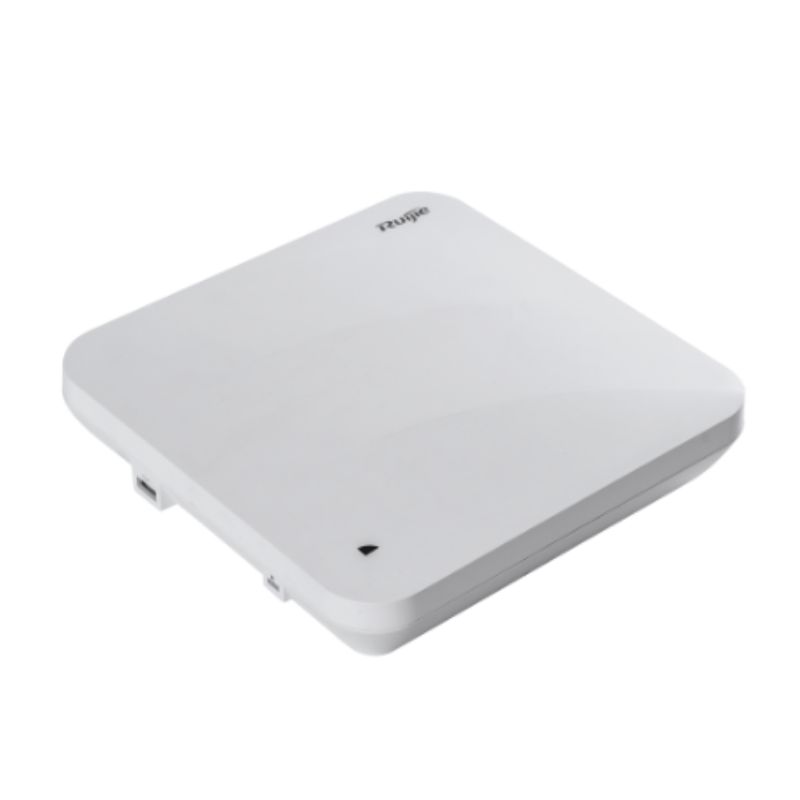

Bộ phát wifi Ruijie RG-AP840-I

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:54:13 +0000

Thông số kỹ thuật

Hardware specifications
Radio	Dual-radio dual-band： Radio 1: 2.4G 11n: 2×2 MIMO Radio 2: 5G 11ax: 4×4 MIMO
Protocol	Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Spatial Streams	Up to 6: 2×2:2 in 2.4GHz , 4×4:4 in 5GHz
Max Throughput	Maximum throughput of 2.4G: 400Mbps Maximum throughput of 5G: 4.8Gbps Maximum throughput per AP: 5.2Gbps
Data encryption	WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）
Maximum clients per AP	1024 (Recommended Clients: 64)
BSSID capacity	Up to 32
Antenna	Integrated antenna design
Antenna Gain	2.4G: 3dBi 5G: 3dBi
Service Ports	3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out)
Management Port	1 console port
USB	1 USB 2.0 port
IoT Capability	BLE
Physical Specifications
Temperature	Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C
Humidity	Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing)
Installation Mode	Ceiling/wall-mountable
Dimensions (W x D x H)	220mm ×220mm x48.85mm（Height of the AP only, excluding the mount kit）
Weight	1.30kg
MTBF	250,000 hours

Bài viết Bộ phát wifi Ruijie RG-AP840-I đã xuất hiện đầu tiên vào ngày VNS.

Bộ phát wifi Ruijie RG-AP180P-L

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:51:42 +0000

Thông số kỹ thuật

Model	RG-AP180-I
Radio	Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Operating Frequencies	Radio 1: 802.11b/g/n/ax, 2.400 GHz–2.483 GHz Radio 2: 802.11a/n/ac/ax, 5.150 GHz–5.350 GHz, 5.470 GHz–5.725 GHz, 5.725 GHz–5.850 GHz Note: The operating bands vary in different countries.
Data rates	Radio 1: 2.4 GHz, 575 Mbps Radio 2: 5 GHz, 2.4 Gbps Maximum access rate of the AP: 2.4 GHz+5 GHz, 2.975 Gbps
Antenna type	Built-in intelligent antenna (two 2.4 GHz antennas and two 5 GHz antennas)
Antenna gain	2.4 GHz: 3 dBi 5 GHz: 3 dBi
Port	Uplink: 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard (PoE/PoE+). Downlink: 4 x 10/100/1000Base-T Ethernet ports with auto-negotiation
Antenna	Wi-Fi ● 2.4 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. ● 5 GHz: two built-in omnidirectional antennas, the max. antenna gain is 2 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 2 dBi.
Status LED	One power LED
Power Supply	● 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard. Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance.
Power Supply	Max power consumption: 10 W ● DC powered: 10 W ● PoE powered (802.3af): 10 W ● Idle mode: 3.3 W
Installation Mode	Installed in 86-type and concealed boxes of the American and European standards or on a wall
Dimensions (W x D x H)	170 mm × 86 mm × 43 mm
Weight	Main unit: 0.3 kg Mounting plate: 0.1 kg
MTBF	200,000 hours (22 years)
Temperature	0°C to 40°C

Bài viết Bộ phát wifi Ruijie RG-AP180P-L đã xuất hiện đầu tiên vào ngày VNS.

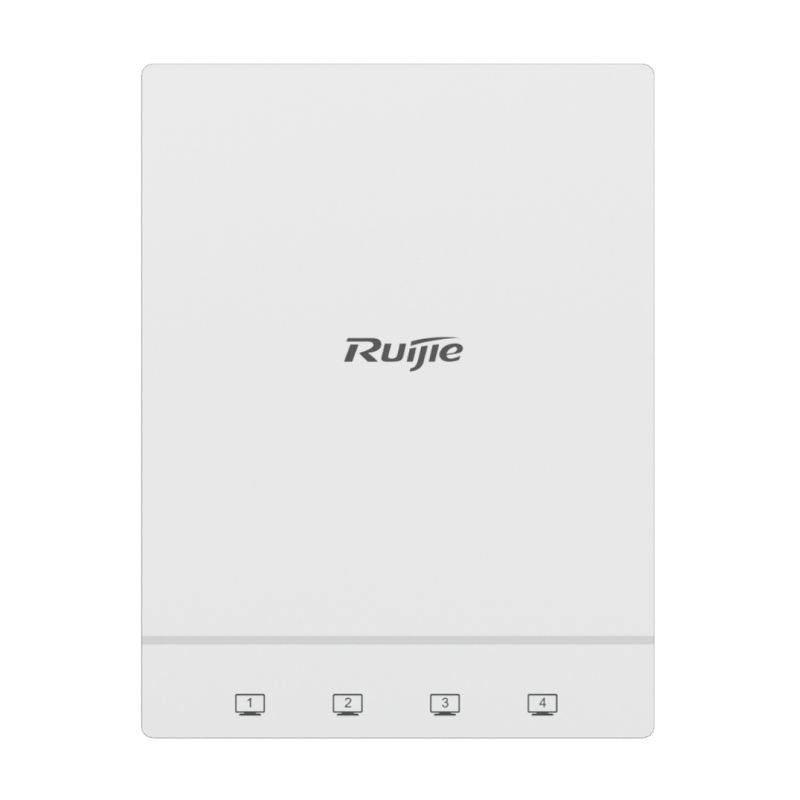

Bộ phát wifi Ruijie RG-AP180

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:49:05 +0000

Thông số kỹ thuật

Model	RG-AP180
Radio	Dual-radio dual-band： Radio 1: 2.4G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO
Protocol	Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax
Operating Bands	802.11b/g/n/ax ：2.4G ~ 2.483GHz 802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)
Spatial Streams	4 spatial streams, 2×2 MIMO
Max Throughput	Maximum throughput of 2.4G: 574Mbps Maximum throughput of 5G: 1.2Gbps Maximum throughput per AP: 1.775Gbps
Transmit Power	≤100mw（20dBm, radio transmit power only）
Dimensions	116mm * 86mm *40mm
Weight	0.37kg
Service Ports	Front： 4 10/100/1000Mbps Ethernet ports Rear： 1 10/100/1000Mbps uplink port
Power Supply	Support PoE Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)
11ax Feature	Support 802.11ax Support MU-MIMO
Management Port	1 Micro USB port (hidden)
Reset	Support (hidden)
LED indicator	Support (hidden) The indicator can be switched off
Built-in Antenna	Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)
IoT Protocol	Support Bluetooth5.0（BLE）, Zigbee

Bài viết Bộ phát wifi Ruijie RG-AP180 đã xuất hiện đầu tiên vào ngày VNS.

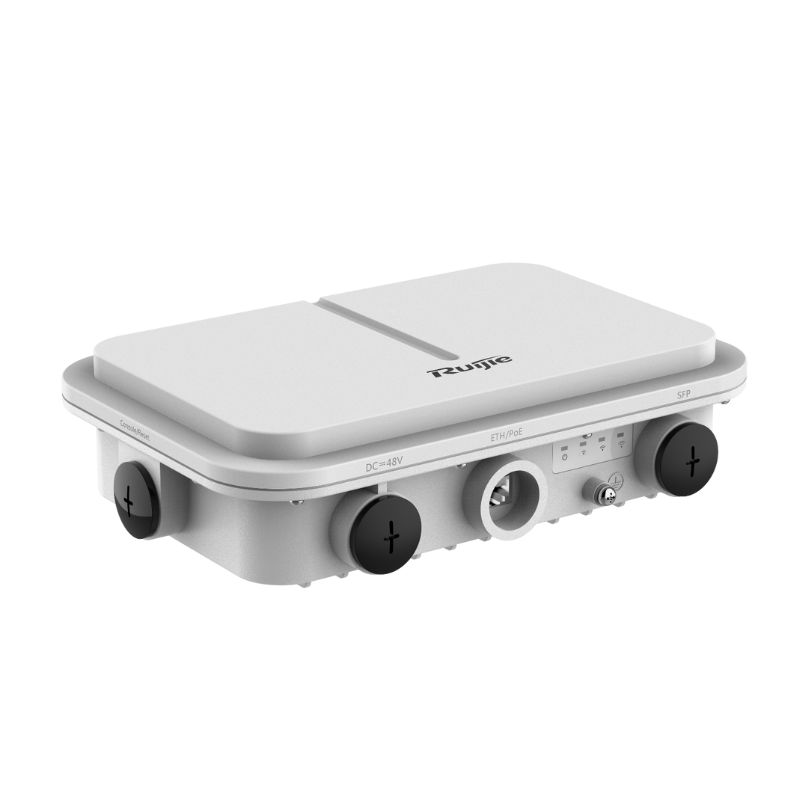

Bộ phát wifi Ruijie RG-AP680(CD)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:45:20 +0000

Thông số kỹ thuật

Model	RG-AP680(CD)
Radio	Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO
Protocol	Concurrent 802.11ax and 802.11a/b/g/n/ac BLE 5.0
Operating Bands	802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax ： 5G：5.150～5.350GHz， 5.725～5.850GHz (Note: the operating bands varies according to different countries)
Antenna	Built-in directional antenna
Antenna Loba Orientation	Internal Directional: 60 degrees total
Antenna Gain	9dBi
Spatial Streams	4 spatial streams, MU-MIMO
Maximum Transmit Power	28dBm (Note: The actual transmit power varies according to different countries and regions)
Adjustable Power	1dBm
Dimensions	251mm × 168mm × 64mm (without mounting bracket)
Weight	<1.5kg
Service Ports	1 10/100/1000Base-T Ethernet uplink port（PoE） 1 SFP port
Management Port	1 console port
Bluetooth	Support switching between Bluetooth serial port and iBeacon
Power Supply	Support PoE (802.3af / 802.3at) Support 44 ~ 57V DC power supply (DC Power adapters should be purchased from third-party vendors separately if needed.)
Power Consumption	<12.95W
Operating Environment	Operating Temperature: -40~65℃ Storage Temperature: -40~85℃ Operating Humidity: 0% to 100% (non-condensing) Storage Humidity: 0% to 100% (non-condensing)
Installation Mode	Wall/pole-mount installation
IP Rating	IP68
MTBF	250,000 hours
Surge Protection	Common mode +/-9kV

Bài viết Bộ phát wifi Ruijie RG-AP680(CD) đã xuất hiện đầu tiên vào ngày VNS.

Bộ phát wifi Ruijie RG-AP680-L

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:42:58 +0000

Thông số kỹ thuật

Specifications	RG-AP680-L
Unit dimensions (W x D x H)	251 mm x 168 mm x 64 mm (9.88 in x 6.61 in x 2.52 in)
Shipping dimensions (W x D x H)	405 mm x 232 mm x 325 mm (15.94 in x 9.13 in x 12.79 in)
Unit weight	Main unit: 1.0 kg (2.20 lbs) Mounting bracket: 0.9 kg (1.98 lbs)
Shipping weight	3.15 kg (6.94 lbs)
Mounting	Ceiling/Pole-mount (a mounting bracket is delivered with the main unit)
Radio design	Dual-radio and four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Packet aggregation	802.11n/ac/ax : A-MPDU and A-MSDU
Antenna type	Built-in omnidirectional antenna (two 2.4 GHz antennas and two 5 GHz antennas)
Max. antenna gain	2.4 GHz radio: 4 dBi 5 GHz radio: 6 dBi
Max. transmit power	2.4 GHz radio: 28 dBm (25 dBm per chain) 5 GHz radio: 28 dBm (25 dBm per chain) Note: The transmit power is limited by local regulatory requirements.
Fixed service port	1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard 1 x GE SFP port
Fixed management port	1 x RJ45 console port (serial console port)
Input power supply	The AP supports the following two power supply modes: ● 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently. ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: ● If both DC power and PoE are available, DC power is preferred.
Power consumption	Max power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6.0 W
Temperature	Operating temperature: –40°C to +65°C (–40°F to +149°F) Storage temperature: –40°C to +85°C (–40°F to +185°F) Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).
Humidity	Operating humidity: 0% to 100% RH (non-condensing) Storage humidity: 0% to 100% RH (non-condensing)
IP rating	IP68

Bài viết Bộ phát wifi Ruijie RG-AP680-L đã xuất hiện đầu tiên vào ngày VNS.

Bộ phát wifi Ruijie RG-AP630 (IDA2)

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Sat, 29 Nov 2025 03:39:59 +0000

Thông số kỹ thuật

Model	RG-AP630(IDA2)
Radio	Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Protocol	802.11a/b/g/n/ac Wave2
Operating Bands	802.11b/g/n: 2.4GHz to 2.483GHz Operating Bands 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on U-NII-3/ISM, channels 149, 153, 157, 161, and 165
Antenna	Built-in idirectional smart antenna (support external/ internal antenna switching)
Antenna gain	10 dBi
Port	Service port: 1 x 10/100/1000 Base-T ETH1/PoE IN port, 1 x 10/100/1000 Base-T ETH2 porrt 1 x 1000m SFP port (combo) Management Port: 1 x port SFP porrt (RJ45)
Antenna	Built-in Directional Smart Antenna (Support exttenal./ internal antenna switching)
Status LED	Power status and WDS signal strength
Power Supply	PoE+ (802.3at)
Power Consumption	<25W
Installation Mode	Wall/Ceiling-mount
Dimensions (W x D x H)	276 x 246 x 90
Weight	<2.5 kg
Temperature	-40°C to 85°C
Humidity	0% to 100% (non-condensing)

Xem thêm thông số kỹ thuật

Bài viết Bộ phát wifi Ruijie RG-AP630 (IDA2) đã xuất hiện đầu tiên vào ngày VNS.
