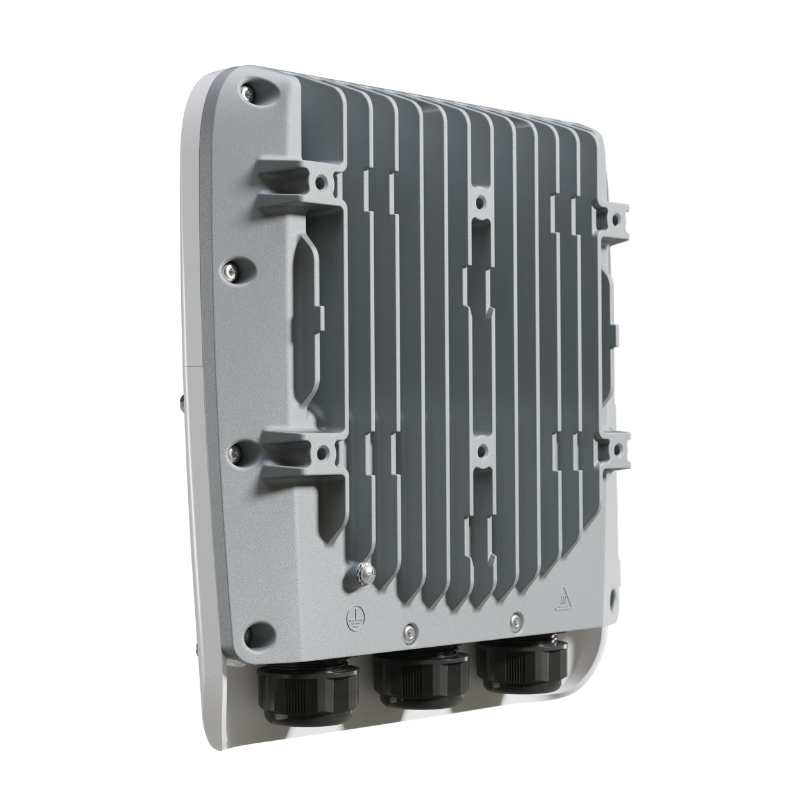

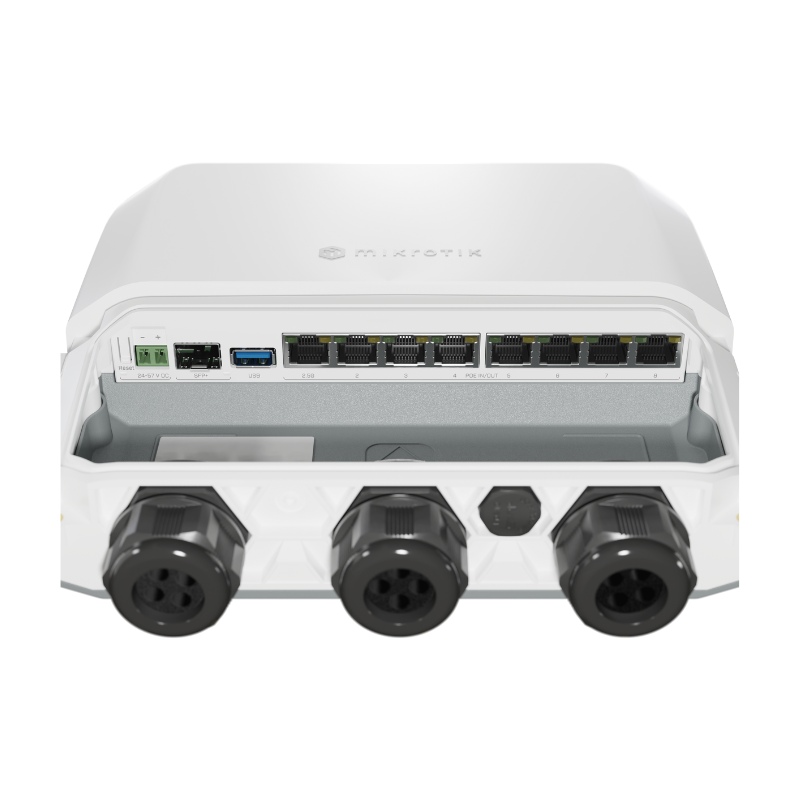

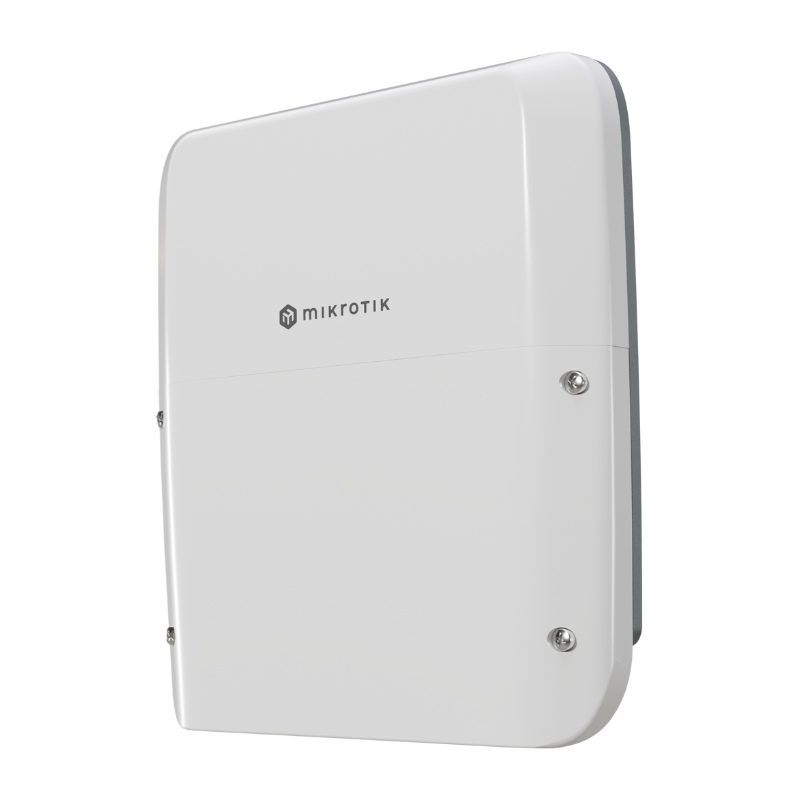

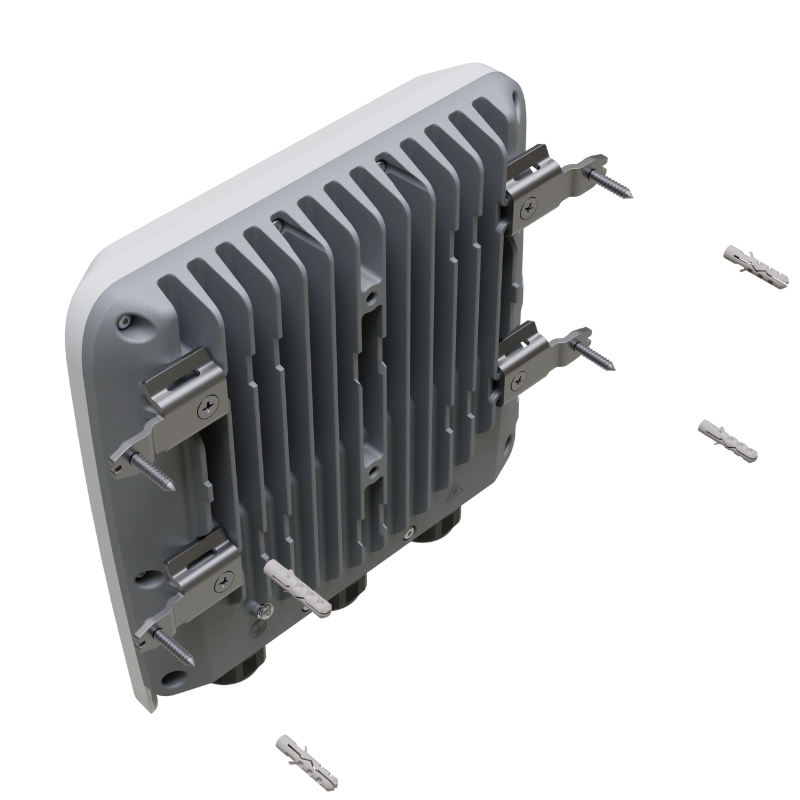

Bộ định tuyến ngoài trời MikroTik RB5009UPr+S+OUT

0 trên 5 dựa trên 2 đánh giá

(Có 0 đánh giá)

Mã sản phẩm: RB5009UPr+S+OUT Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Thông số kỹ thuật

Specifications
Product code	RB5009UPr+S+OUT
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS (v7 only)
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Powering
Number of DC inputs	2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	15 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-57 V
PoE-out
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	620 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	120
Ethernet
10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with PoE-out	1
Fiber
SFP+ ports	1
Peripherals
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1
Other
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	66
