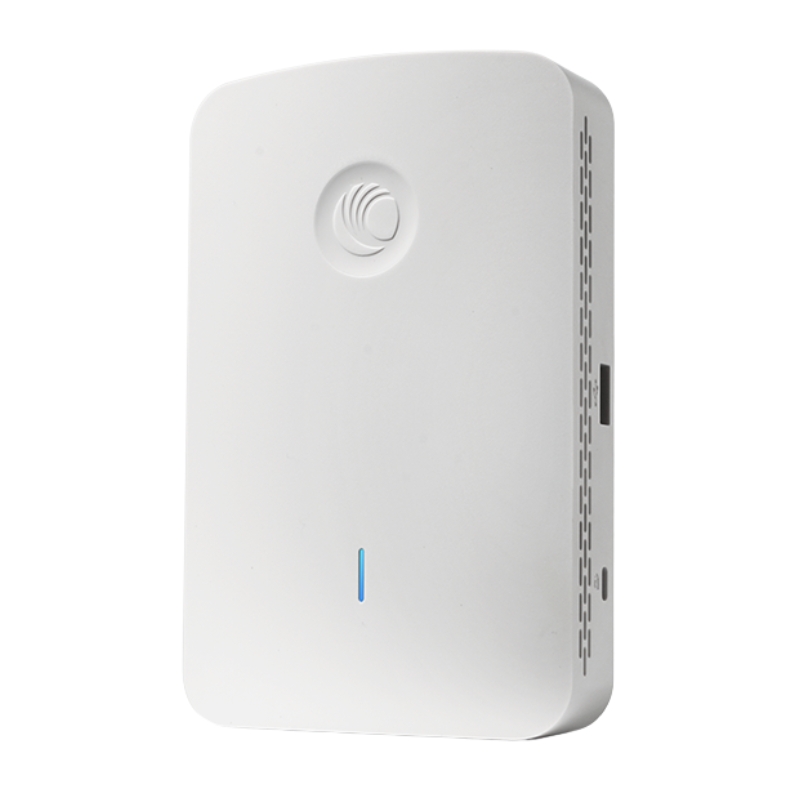

Bộ phát wifi Cambium cnPilot e425H Wall Plate

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: e425H Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

bo-phat-wifi-cambium-cnpilot-e425h-wall-plate

Thông số kỹ thuật

Access Point Specifications
Radios	1 x 5 GHz radio (802.11a/n/ac Wave 2), 2×2 1 x 2.4 GHz (802.11b/g/n), 2×2 SU-MIMO / MU-MIMO: 2 streams
Wi-Fi	802.11 a/b/g/n/ac Wave 2
SSID Security	WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Max PHY Rate	2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps
Ethernet	Three IEEE Gigabit Ethernet auto sensing
USB port	Yes
Antenna	Internal omni-directional 2.4 GHz: 3.84 dBi 5 GHz: 4.08 dBi
Max EIRP	2.4 GHz: 27 dBm 5 GHz: 25 dBm (EIRP limited by country regulations)
WLAN	100 clients,32 SSIDs (16 per radio) WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Power	802.3af or 802.3at powered device Typical load, no power out: 8W Typical load, with 15.4W power out: 24W
MTBF	511k hours at 25ºC; 121.79k hours 45ºC
Dimensions	147 mm x 94 mm x 32 mm (5.79 in x 3.7 in x 1.26 in)
Weight	268 g (0.59 lb)
Security	Kensington lock slot, secure bracket
LEDs	Tri-color status LEDs
Ambient Operation Temperature	0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature	-40ºC to 70ºC (-40ºC to 158ºF)
Humidity	95% RH non-condensing
Certifications (compliance)	802.11u, HotSpot 2.0, 802.11 a/b/g/n/ac, PP2.0 FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950
Network Specifications
Authentication Encryption	802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/ PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS. MAC auth fallback to guest portal
Scheduled WLAN	On/off by day, week, time of day
APIs	RESTful management and statistics API Presence location API Splunk WebSocket integration, WebSocket DNS, NAT, TCP connection log
QoS	802.11e/WMM QoS. DSCP/ToS mapping
VLAN	802.11Q, max 4096
Fast Roaming	802.11r, OKC, cnMaestro assisted roam
Sticky Client	Enhanced roaming with thresholds
Mesh	Multi-hop (2), either band
Channel Selection	Auto RF: Manual, or automatic
Management
Interfaces	HTTP / HTTPS web interface, SSH, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP
Deployment	cnMaestro Cloud, cnMaestro on-premises, Standalone AP
Services	Monetized guest porA24:B34tal with design tools
