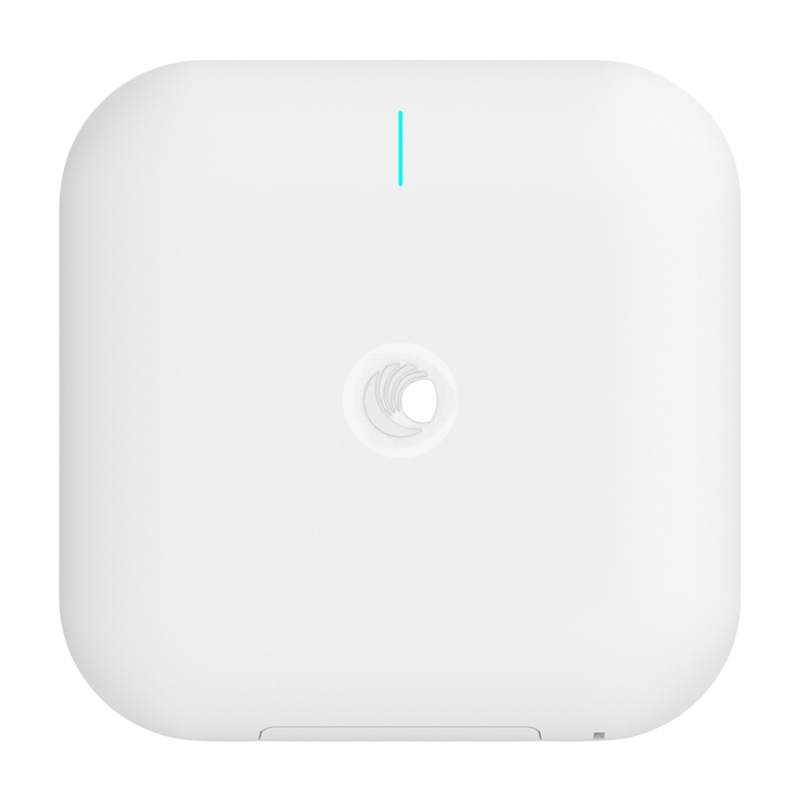

Bộ phát wifi Cambium XV3-8 Wi-Fi 6

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: XV3-8 Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

Thông số kỹ thuật

Access Point Specifications
Radios	2.4 GHz: 802.11 b/g/n/ax, 4×4 5 GHz: 802.11 a/n/ac Wave 2/ax, 8×8 (or configure as two 4×4) 2.4/5 GHz scan, 1×1 BLE 4.1
Wi-Fi	802.11 a/b/g/n/ac Wave 2/ax
SSID Security	WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Max PHY Rate	2.4 GHz: 1,147 Mbps 5 GHz: 4,804 Mbps
Ports	1 x IEEE 802.3 10/100/1000 Mbps 1 x IEEE 802.3bz 100/1000/2500/5000 Mbps Auto sensing MDIX 1 x USB 3.0
Antenna	2.4 GHz: 5 dBi 5 GHz: 6.7dBi 2.4/5 GHz: sensor 5 dBi / 6.3 dBi BLE 5 dBi
Max EIRP	2.4 GHz: 31 dBm 5 GHz: 36 dBm
Power	Max power with USB/BLE, 35 W (802.3bt) 802.3at mode with USB/BT disabled 12 VDC power, 2.1 mm (.083 in) barrel connector
Dimensions	235 mm x 235 mm x 42 mm (9.25 in x 9.25 in x 1.65 in)
Weight	1,250 g (2.76 lbs)
Security	Kensington lock slot
LEDs	Multi-color status LEDs
Ambient Operation Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-20ºC to 70ºC (-4ºF to 158ºF)
Humidity	95% RH non-condensing
MTBF	891k hours 50ºC and 2.379 million hours at 25ºC
Mount Options	Wall or ceiling, T-bar with included locking bracket, ceiling tile plate
Certifications (Compliance)	Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
Network Specifications
Operational Modes	Standalone Cloud managed cnMaestro or VM Cloud managed XMS
WLAN	1,024 clients, 32 SSIDs (16 SSIDs per radio) WPA3, WPA3 SAE, WPA3 Enterprise, WPA-TKIP, WPA2 AES, 802.1x, , 802.11w PMF
Authentication Encryption	802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
Scheduled WLAN	On/off by day, week, time of day
Guest Access	See “Captive Portal” section for additional details
Data Limit	Client bitrate/time/throughput limit per SSID
Subscriber QoS	WMM
Fast Roaming	802.11r, OKC, cnMaestro assisted roam
Mesh	Multi-hop, either band
Channel Selection	Multimodal channel selection with AutoChannel and AutoBand. Granular control of off-channel scan and channel selection
RF Management	Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP. Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference Data rate pruning and minimum data rates
Network	TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
Band Steer Load Balance	Yes
Tunnel	L2TPv2, L2GRE, PPPoE
Network and RF Management Tools	Wired and wireles remote packet capture, ZapD performance tool, rogue AP detection
Services	NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure
Standards
Wi-Fi Protocols	VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w
