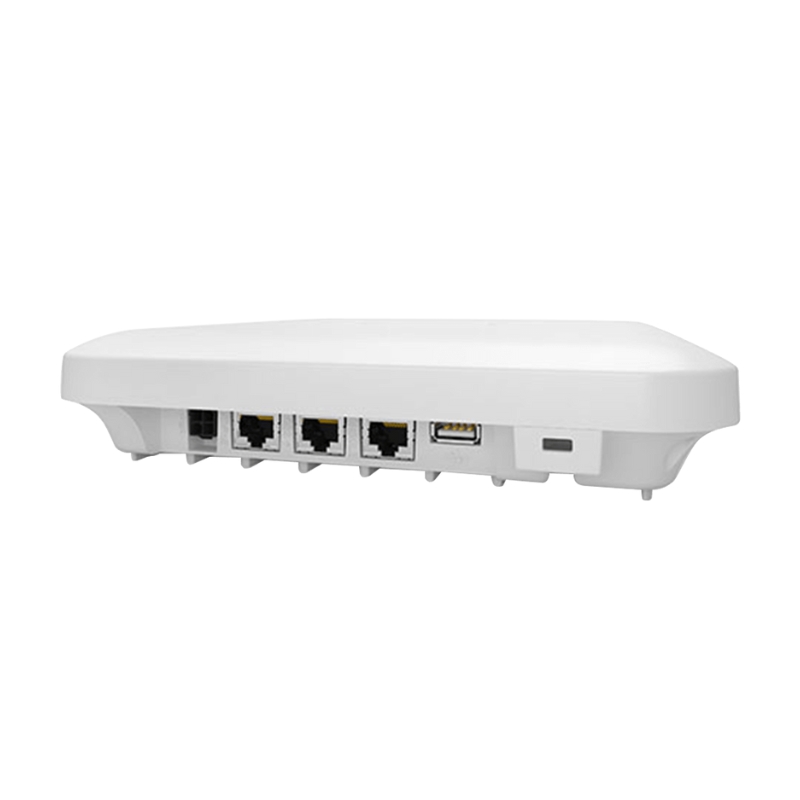

Bộ phát wifi Extreme WiNG AP 8432

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: AP 8432 Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

Thông số kỹ thuật

Specifiations
802.11AC Capabilities
• Tri-radios (Dual Wi-Fi® radios plus Bluetooth®) • Band-unlocked radio for Data or Dual-band 802.11 WIDS/WIPS and Location Service • 4×4 MU-MIMO with 4 Spatial Streams • Auto-Selecting MU-MIMO • 20, 40, and 80 MHz ChannelsPacket Aggregation (AMSDU, AMPDU) and RIFS • Legacy support 802.11a.b.g.n networks • MIMO Power Save (Static and Dynamic) • Advanced forward error correction coding: STBC, LDPC • 802.11ac transmit beamforming • Maximal Ratio Combining (MRC) • NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio • Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio
Physical Characteristics
Dimensions	8.25” x 8.25” x 1.8” 210mm x 210mm x 46mm
Weight	3.0lbs, 1.27kg
Housing	Plenum-Rated Housing (UL2043)
Mounting	Included mounting bracket for flsh mount or T-bar mount
LEDs	System status: Green, Amber, Blue, White
LAN Ethernet	2x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna Connectors	Nine internal single band antennas Eight for WLAN Data radios and one for Bluetooth
Console	RJ45 serial port
PoE Out	Supports 802.3af Powered Devices (PD) up to 15.4w
USB	A single 5W multi-purpose USB port
User Environment
Operating Temperature	32° F to 140° F/0° C to 60° C
Storage Temperature	40° F to 158° F/-40° C to 70° C
Operating Humidity	95% RH non-condensing
Electrostatic Discharge	ESD to ±12KV air and ±8KV contact
Antenna Gain Information
Internal Antenna	Radio 1: 2.4GHz: 3×3 with 3SS Radio 2: 5GHz: 4×4 with 4SS Radio 3: Bluetooth radio with integrated antenna
DC Power Specifiations
Operating Power	Max Power Consumption with 802.3af PoE Out: 26W Max Power Consumption without PoE Out: 18.2W Typical Power Consumption without PoE Out: 10.3W
Accessories
Power	PWR-BGA48V45W0WW PD-9001GR-ENT
Mounting	KT-135628-01 BRKT-000147A-01
Radio Specifiations
Wireless Medium	DSSS, OFDM, MIMO, MU-MIMO
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3, Client 802.11b/g: 1-54 Mbps 802.11a: 6-54 Mbps 802.11n: MCS 0-31 up to 600 Mbps 802.11ac: MCS 0-9 up to 1.733 Gbps
Operating Channel	2.4 GHz band: channel 1-13 5.2 GHz band: channel 36-165 2412 to 2472 MHz, 5180 to 5850 MHz Channel availability depends on local regulatory restrictions
Antenna Confiuration	Radio 1: 2.4GHz: 3×3 with 3SS Radio 2: 5GHz: 4×4 with 4SS Radio 3: Dual Band Sensor: 1×3 with 3SS
Conducted Radio Power	Up to 20dBm depending on local regulatory restrictions, in 1dB increments
Operating Frequencies	2412 to 2472 MHz, 5180 to 5850 MHz
Networking
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLD
Security	Stateful Firewall, IP fitering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24×7 dual-band WIPS sensing, on-board IDS, captive portal, IPSec, and RADIUS Server
QoS	WMM, WMM-UAPSD, 802.1p, Differv, and TOS. Role-based QoS with rule-based packet marking
Maximum Radiated Transmit Power (RMS)
Internal Antenna	Radio 1: – 2.4GHz band: 30.2 dBm (1040 mW) – 5.2GHz band: 25.9 dBm (389 mW) Radio 2: 5.2GHz band: 32.6dBm (1808 mW) Radio 3: 13.7 dBm (23.4mW)
Regulatory
Approvals and Certifiations	UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS. FCC (USA), EU, TELEC, Medical EMC standard: EN/IEC 60601-1-2
Certifiations
Wi-Fi Alliance® (WFA) certifid 802.11 a/b/g/n/ac, Passpoint 2.0
Product SKU and Description
AP-8432-680B30-US	Tri-Radio 802.11ac Wave 2 with internal antennas. 4×4:4 MU-MIMO, US
AP-8432-680B30-1-WR	Tri-Radio 802.11ac Wave 2 with internal antennas. 4×4:4 MU-MIMO, WR and EMEA
