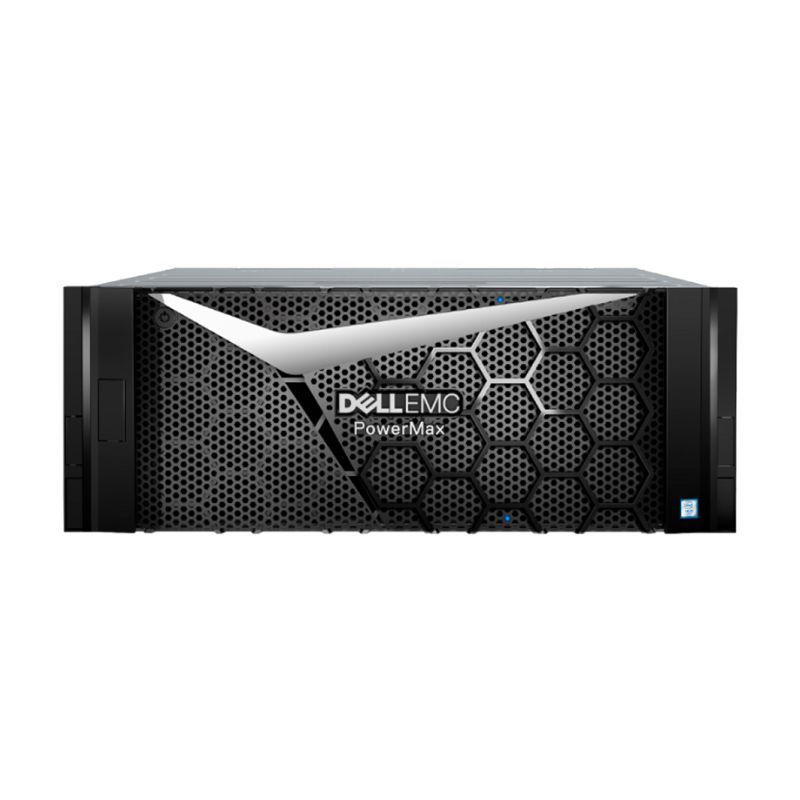

Dell EMC PowerMax 8000

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: PowerMax-8000 Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

Mô tả sản phẩm

Technical Specifications	PowerMax 8000
Storage Type	Block, file, open systems, IBM i, and mainframe
Use Case	Enterprise storage, consolidation at scale, mixed open and mainframe workloads
Bricks/zBricks
Number of Bricks or zBricks5	1 to 8
Engine Enclosure	4U
CPU	Intel Xeon E5-2697-v4
CPU	2.8 GHz 18 core4
# Cores per CPU/per engine/per system	18/72/576
Dynamic virtual matrix interconnect	InfiniBand Dual Redundant Fabric:
Dynamic virtual matrix interconnect	56 Gbps per port
Maximum IOPS	15 Million
Response Times (Reads)	Under 100 microseconds
Cache
Cache-system min (raw)	1,024 GB
Cache-system max (raw)	16 TB (with 2,048 GB engine)
Cache-per engine options	1 TB, 2 TB
Vault
Vault stratery	Vault to Flash
Vault implementation	4 to 8 NVMe Flash SLICs / Engine
Front End I/O Modules
Maximum front-end I/O modules/brick	87
Front-end I/O modules and protocols supports	4 x 32 Gbs (FC, SRDF)
	4 x 32 Gbs (FC-NVMe)
	4 x 16 Gbs (FC, SRDF)
	10 GbE: 4 x 10 GbE (iSCSI, SRDF)
	25 GbE: 4 x 25 GbE (iSCSI, SRDF)
	4 x 16 Gbs (FICON)
eNAS I/O Modules
Max eNAS I/O modules / software data mover	36
eNAS I/O modules support	10 GbE: 2 x 10 GbE Optical
	10 GbE: 2 x 10 GbE Cu1
	8 Gbs: 4 x 8 Gbs FC (Tape BU)2
eNAS Software Data Movers
Max software data movers	8 (7 Active and 1 Standby – 8 Data Movers requires minimum 4 Bricks)3
Max NAS capacity/array (terabytes usable)	3584
End-to-end efficient encryption modules	2 per Brick – Maximum 16 per Array8
Cloud mobility for Dell EMC Powermax Modules	10GbE: 4 x 10GbE – 1 SLiC dedicated to a single director9
Capacity, Drives
Max Capacity per Array (Open)10	4.5 PBe
Base Capacity per Brick (NAND, Open)	54.0 TBu
Base Capacity per Brick (SCM, Open)	21.0 TBu14
Base Capacity per zBrick (NAND, Mainframe)	13.2 TBu
Base Capacity per zBrick (SCM, Mainframe)	21.0 TBu14
Incremental Flash Capacity Packs (NAND)	13.2 TBu
Incremental Flash Capacity Packs (SCM)	5.25 TBu
Max Drives per Brick	32 Usable + spare(s)
Max Drives per Array	288
Max Drives per System Bay	144
Min Drive Count per Brick	8 + 1 spare
NVMe Drives
NVMe Drives Supported (2.5”)	1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
SCM Drives
SCM Drives Supported (2.5”)	750 GB, 1.5 TB
BE Interface	NVMe over PCIe
RAID Options Supported	RAID 5 (7 +1) (default)
	RAID 6 (6+2)
	RAID 1
Mixed RAID Group Support	No
Support for Mixed Drive Capacities	Yes13
NVMe Drive Array Enclosure	PowerMax 8000
24 x 2.5” Drive DAE	Yes
Cabinet Configurations
Standard 19″ bays	Yes
Single Brick System Bay Configuration	No – (Packaging based on Quad Bricks, but initial Brick in each System Bay supported)
Dual/Quad Brick System Bay Configuration	Quad
Third Party Rack Mount Option	Yes
Dispersion
Standard and 3rd Party Cabinets	Yes
Pre-Configuration From Factory
100% Thin Provisioned	Yes
Host Support
Open Systems	Yes
Mainframe	Yes
Mixed Mainframe and Open	Yes
Power Options
Input Power Options	Single or Three Phase
Input Power Options	Delta or Wye
Front End and SRDF I/O Protocols Supported
32 Gb/s FC/FC-NVMe Host Ports	Maximum/Brick: 32
32 Gb/s FC/FC-NVMe Host Ports	Maximum/Array: 256
32 Gb/s FC SRDF Ports	Maximum/Brick: 32
32 Gb/s FC SRDF Ports	Maximum/Array: 256
16 Gb/s FC Host Ports	Maximum/Brick: 32
16 Gb/s FC Host Ports	Maximum/Array: 256
16 Gb/s FC SRDF Ports	Maximum/Brick: 32
16 Gb/s FC SRDF Ports	Maximum/Array: 256
16 Gb/s FICON Host Ports	Maximum/Brick: 32
16 Gb/s FICON Host Ports	Maximum/Array: 256
10 GbE iSCSI Ports (Optical)	Maximum/Brick: 32
10 GbE iSCSI Ports (Optical)	Maximum/Array: 256
10 GbE SRDF Ports (Optical)	Maximum/Brick: 32
10 GbE SRDF Ports (Optical)	Maximum/Array: 256
25 GbE iSCSI Ports (Optical)	Maximum/Brick: 32
25 GbE iSCSI Ports (Optical)	Maximum/Array: 256
25 GbE SRDF Ports (Optical)	Maximum/Brick: 32
25 GbE SRDF Ports (Optical)	Maximum/Array: 256
Embedded eNAS Ports
10 GbE Optical Ports	Max ports/Software Data Mover: 4
10 GbE Optical Ports	Maximum ports/array: 32
10 GbE Copper Ports	Max ports/Software Data Mover: 4
10 GbE Copper Ports	Maximum ports/array: 32
8 Gb/s FC Tape Back Up Ports	Max ports/Software Data Mover: 2
8 Gb/s FC Tape Back Up Ports	Maximum ports/array: 16
Power consumption and heat dissipation at <26 and >35 degree C
Maximum Total power consumption (kVA)	System bay 1, dual engine
	<26o C – N/A
	>35o C – N/A
	System bay 1, quad engine
	<26o C – 8.339
	>35o C – 11.695
	System bay 2, quad engine
	<26o C – 7.976
	>35o C – 11.332
Maximum Heat dissipation (Btu/hr)	System bay 1, dual engine
	<26o C – N/A
	>35o C – N/A
	System bay 1, quad engine
	<26o C – 28,453
	>35o C – 39,903
	System bay 2, quad engine
	<26o C – 27,214
	>35o C – 38,665
Physical Specifications	PowerMax 8000
Height	System bay 1, quad engine: 75 inch / 190 cm
Height	System bay 2, quad engine: 75 inch / 190 cm
Width	System bay 1, quad engine: 24 inch / 61 cm
Width	System bay 2, quad engine: 24 inch / 61 cm
Depth	System bay 1, quad engine: 42 inch / 106.7 cm
Depth	System bay 2, quad engine: 42 inch / 106.7 cm
Weight (maximum)	System bay 1, quad engine: 1670 lbs / 758 kg
	System bay 2, quad engine: 1525 lbs / 692 kg
Input Power Requirements – Single phase
Input nominal voltage	200 – 240 VAC +/- 10% L- L nom
Frequency	50 – 60 Hz
Circuit breakers	30 A
Power zones	Two
Power requirements at customer site	Max of two 30A single phase drops per system per cabinet for PowerMax 2000
	Quantity one 30A drop per zone for single Brick
	Quantity two 30A drops per zone for two Bricks
	Max of three 30A, single phase drops (per cabinet) PowerMax 8000 as follows:
	Quantity one 30A drop per zone for single Brick
	Quantity two 30A drops per zone for two Bricks
	Quantity three 30A drops per zone for three or four Bricks
Input Power Requirements – Three-phase
Input nominal voltage	200 – 240 VAC +/- 10% L- L nom
Frequency	50 – 60 Hz
Circuit breakers	50 A
Power zones	Two
Power requirements at customer site (min)	Two 50 A, three-phase drops per bay
Dell Technologies service
Deployment Services	Dell EMC ProDeploy Enterprise Suite
	Dell EMC Data Migration Services
	Dell EMC Residency Services
	Dell EMC Data Sanitization Services for Enterprise
Support Services	Dell EMC ProSupport Enterprise Suite
Support Services	Dell EMC Keep Your Hard Drive for Enterprise
Managed Services	Dell EMC Managed Services for Storage
Dell Technologies Consulting Services	Advisory Services and workshops
Dell Technologies Education Services	PowerMax technical training courses and certifications
Support & Services Technology	MyService360
Support & Services Technology	Secure Remote Services, SupportAssist Enterprise
