Gateway Ubiquiti UniFi Dream Wall (UDW)

0 trên 5 dựa trên 2 đánh giá

(Có 0 đánh giá)

Mã sản phẩm: UDW Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Bảng điều khiển UniFi OS có thể treo tường
WiFi 6 băng tần kép với tốc độ lên đến 2,7 Gbps (2,4 GHz: 300 Mbps / 5 GHz: 2,4 Gbps)
Dual WAN ports (10G SFP+ và 2.5GbE RJ45)
(1) Cổng LAN 10G SFP+
(5) Cổng LAN GbE RJ45
(12) Cổng GbE RJ45, bao gồm (4) PoE, (4) PoE+ và (4) cổng LAN PoE++
Tích hợp SSD 128 GB & gắn sẵn thẻ nhớ microSD 512GB

Description
Reviews (0)

Thông số kỹ thuật

Mechanical
Dimensions	549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
Weight	8.6 kg (19 lb)
Enclosure materials	Polycarbonate, galvanized steel, aluminum alloy
Mount material	Stainless steel
Hardware
Processor	Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory	4 GB DDR4
On-board storage	16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card
Expansion slot	Micro SD memory card* *Requires a memory card with at least 128 GB of storage.
Management interface	Ethernet Bluetooth WiFi
Networking interface	(17) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port
SFP+ interface	(1) LAN: 10G SFP+ port (1) WAN: 10G SFP+ port
PoE interface	(4) PoE (Pair A 1, 2+; 3, 6-) (4) PoE+ (Pair A 1, 2+; 3, 6-) (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Power method	Universal AC input 100—240V AC, 7A Max., 50/60Hz
Power supply	(2) Hot-Swappable AC/DC 550W PSU* *Comes with (1) pre-installed PSU.
Max. power consumption	532W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+/PoE++: 50—57V
Max. TX power
2.4 GHz	23 dBm
5 GHz	26 dBm
MIMO
2.4 GHz	2 x 2
5 GHz	4 x 4
Throughput rate
2.4 GHz	300 Mbps
5 GHz	2.4 Gbps
Antenna gain
2.4 GHz	5.9 dBi
5 GHz	6 dBi
ESD/EMP protection	Air: ± 8kV, contact: ± 4kV
LCM display	(1) 4.7″ touchscreen
Button	Factory reset

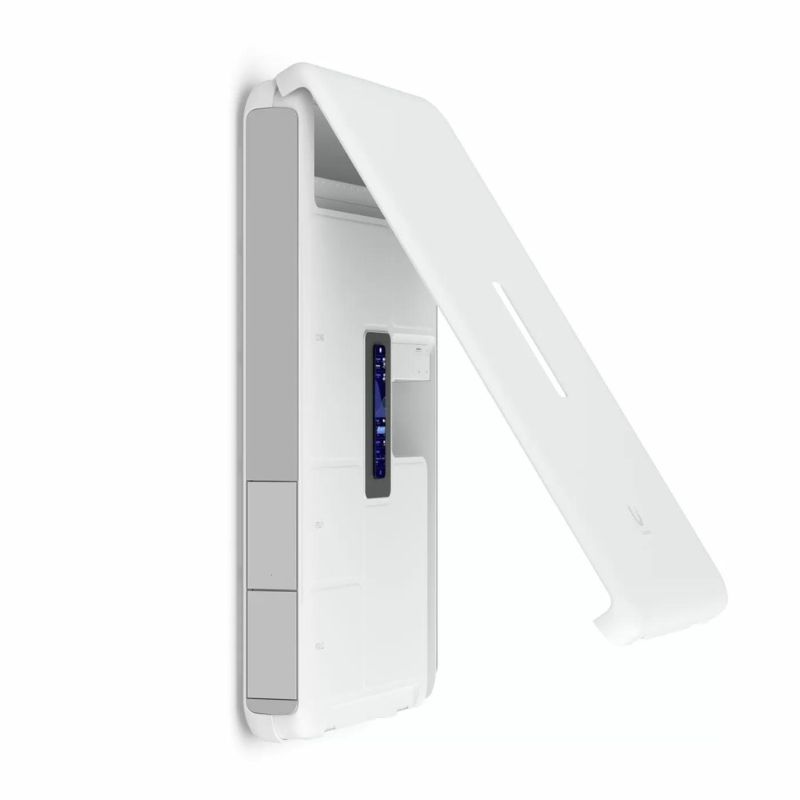

Mounting	Wall mount (included)
Operating temperature	-10 to 40° C (14 to 104° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting
Next-generation security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and UID VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support
Software
WiFi standards	802.11a/b/g WiFi 4/WiFi 5/WiFi 6
Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
