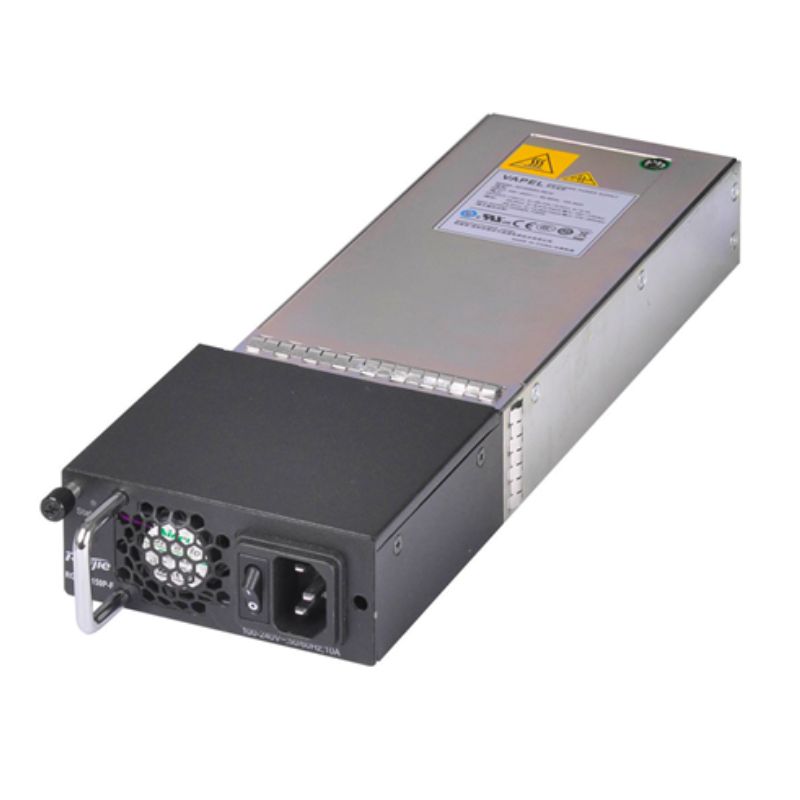

Ruijie RG-PA150IB-F AC Power Module

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Model	RG-PA150IB-F
Rated input voltage	AC input: 100 V AC to 240 V AC; 50 Hz to 60 Hz HVDC input: 240 V DC
Maximum input voltage	AC input: 90 V AC to 290 V AC; 47 Hz to 63 Hz HVDC input: 192 V DC to 288 V DC
Maximum input current	3 A
Input leakage current	≤ 3.5 mA
Output voltage	12 V
Maximum output current	12.5 A
Maximum output power	150 W
Dimensions (W x D x H)	196 mm x 50.5 mm x 40mm (7.72 in. x 1.99 in. x 1.57 in.)
Weight	Net weight: 0.55 kg (1.21 lbs.)
Primary airflow	Rear-to-front
Operating temperature	-10°C to +55°C (14°F to 131°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Operating humidity	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)
Operating altitude	0 m to 5,000 m (0 ft. to 16404.20 ft.)
