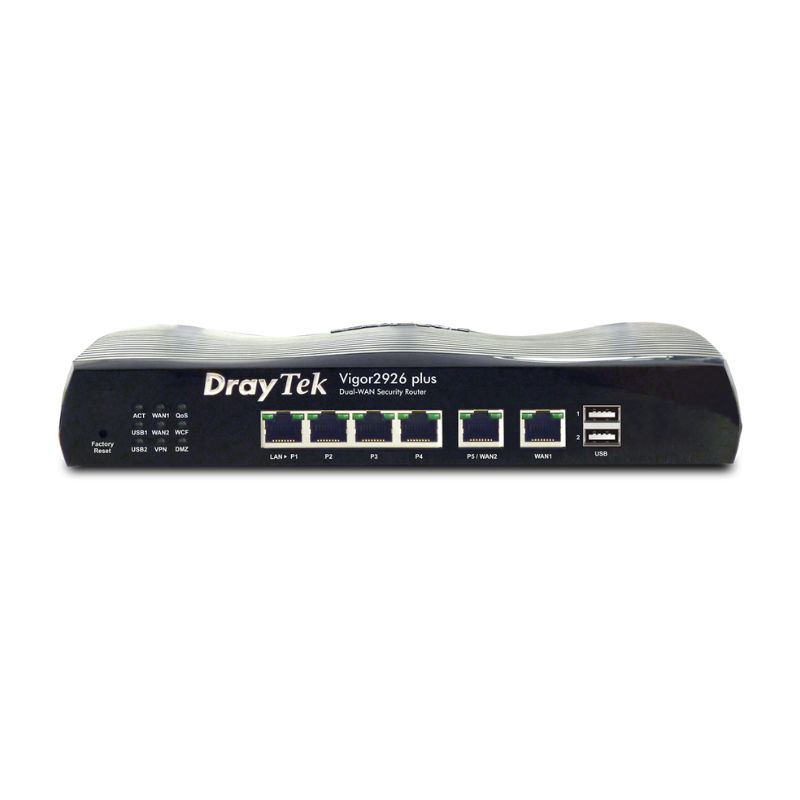

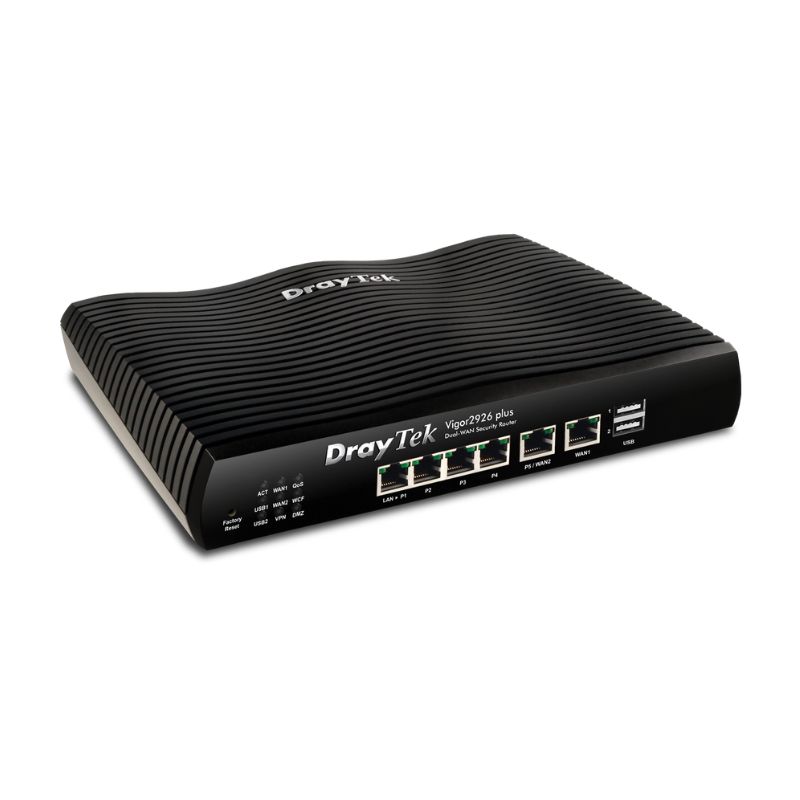

Thiết bị cân bằng tải Router Draytek Vigor 2926 plus

0 trên 5 dựa trên 2 đánh giá

(Có 0 đánh giá)

Mã sản phẩm: Vigor 2926 plus Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

Mục lục

1 Thông số kỹ thuật

Thông số kỹ thuật

Interface
Fixed WAN Port	1x Gigabit Ethernet
LAN/WAN Switchable Port	1x Gigabit Ethernet
Fixed LAN Port	4x Gigabit Ethernet
USB Port	2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
Performance
NAT Throughput	500 Mbps
NAT Throughput w/ Hardware Acceleration	900 Mbps
Max. Number of NAT Sessions	50,000
Max. Concurrent VPN Tunnels	50
Max. Concurrent OpenVPN + SSL VPN	25
Internet Connection
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging	Yes
Multi-VLAN/PVC	Yes
3G/4G/LTE WAN with USB modem	Yes
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Ping
WAN Data Budget	Yes
Dynamic DNS	Yes
DrayDDNS	Yes
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	16
Number of LAN Subnet	8
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias	Yes
Wired 802.1x Authentication	Yes
Port Mirroring	Yes
Local DNS Server	Yes
Conditional DNS Forwarding	Yes
Hotspot Web Portal	Yes
Hotspot Authentication	Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
High Availability	Yes
DNS Security (DNSSEC)	Yes
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server	Yes
SMB File Sharing	(Requires external storage)
VPN
LAN-to-LAN	Yes
Teleworker-to-LAN	Yes
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication	Pre-Shared Key, X.509
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN	Yes
NAT-Traversal (NAT-T)	Yes
DrayTek VPN Matcher	Yes
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy	Yes
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense	Yes
Spoofing Defense	Yes
Bandwidth Management
IP-based Bandwidth Limit	Yes
IP-based Session Limit	Yes
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import	Yes
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege	Yes
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
Syslog	Yes
Managed by VigorACS	Yes
Central VPN Management	8 VPN
Central AP Management	20 VigorAP
Central Switch Management	10 VigorSwitch
Physical
Power Supply	DC 12V @ 1.3A
Max. Power Consumption	15.6 watts
Dimension	241mm x 166mm x 46mm
Weight	500g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%
