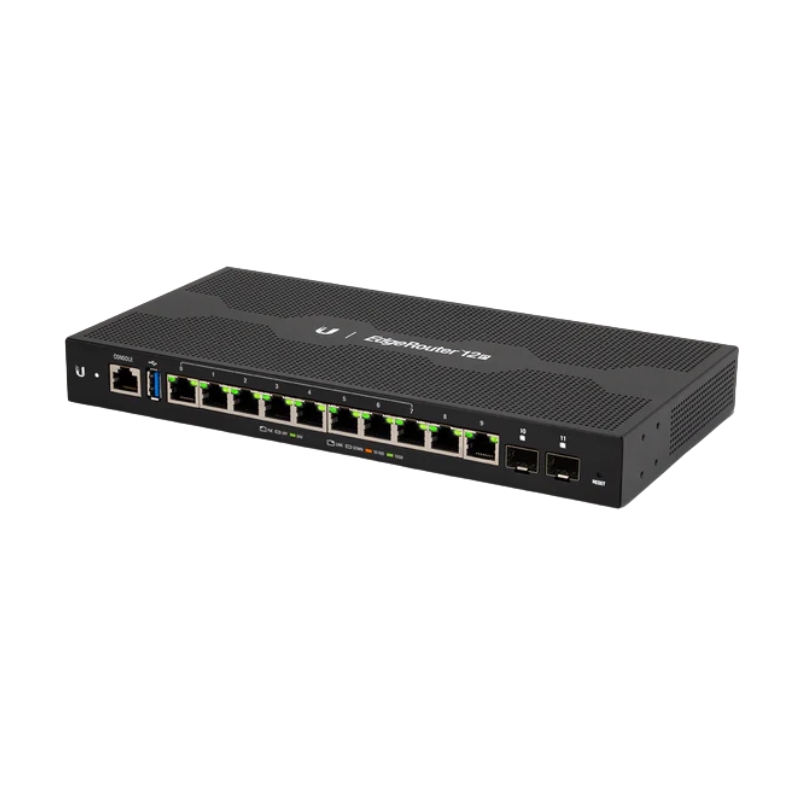

Thiết bị cân bằng tải Router Ubiquiti EdgeRouter 12P (ER-12P), 10 Port Gigabit Ethernet (Passive PoE), 2 Port SFP

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: ER-12P Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Thông số kỹ thuật

Mechanical
Dimensions	268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22″)
Weight	700 g (1.54 lb)
Hardware
Management Interface	(1) RJ45 Serial Port
Management Interface	(10) Ethernet Ports (Default Port 0)
Networking Interface	(10) 10/100/1000 RJ45 Ports
Networking Interface	(2) 1 Gbps SFP Ports
Processor	4-Core 1 GHz MIPS64
System Memory	1 GB DDR3 RAM
On-Board Flash Storage	4 GB eMMC, 8 MB SPI NOR
Max. Power Consumption	20W (Excludes PoE Output)
Power Method	External AC/DC Power Adapter, 12W (24VDC, 2.5A) (Included)
Power Supply	External AC/DC Adapter
Supported Voltage Range	9 – 30VDC
Button	Reset
LEDs
System	Power
Data Ports	PoE, Speed/Link/Activity
SFP Data Port	Link/Activity
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature	-10 to 40° C (14 to 104° F)
Operating Humidity	10 – 90% Noncondensing
Certifications	CE, FCC, IC
PoE with 24VDC Power Adapter
PoE Interfaces	(10) 24V Passive PoE Ports, 2-Pair (Pins 4, 5+; 7, 😎
Passive PoE Max. Wattage per Port	17W (24V)
Passive PoE Voltage Range	24V: 20 to 30V
