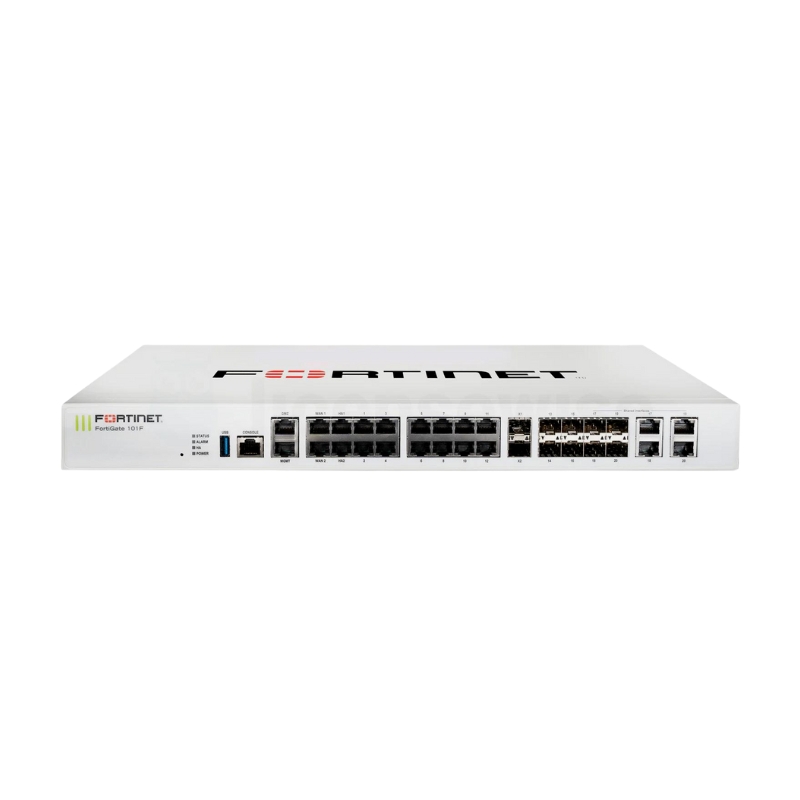

Thiết bị Firewall Fortinet FortiGate 101F (FG-101F)

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: FG-101F Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Giá cạnh tranh nhất thị trường
Tư vấn giải pháp, dự án miễn phí
Hỗ trợ đại lý và dự án
Đầy đủ CO/CQ
Bán hàng online toàn quốc
Hỗ trợ kỹ thuật tận tâm
Bảo hành chuyên nghiệp, uy tín

Description
Reviews (0)

Firewall-Fortinet-FortiGate-101F-(FG-101F)

Thông số kỹ thuật

Interfaces and Modules
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	4
Console Port	1
Internal Storage	1x 480 GB SSD
USB Port	1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP)	5 μs
Firewall Throughput (Packet per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Sec (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1 Gbps
Concurrent SSL-VPN Users	500
SSL Inspection Throughput (IPS, HTTP)	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	135,000
Application Control Throughput (HTTP 64K)	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Dimensions and Power
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Weight	7.56 lbs (3.43 kg)
Form Factor	Rack Mount, 1 RU
Environment
Power Required	100–240V AC, 50-60
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.3 W / 39.1 W
Heat Dissipation	121.13 BTU/h
Redundant Power Supplies	Yes
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
