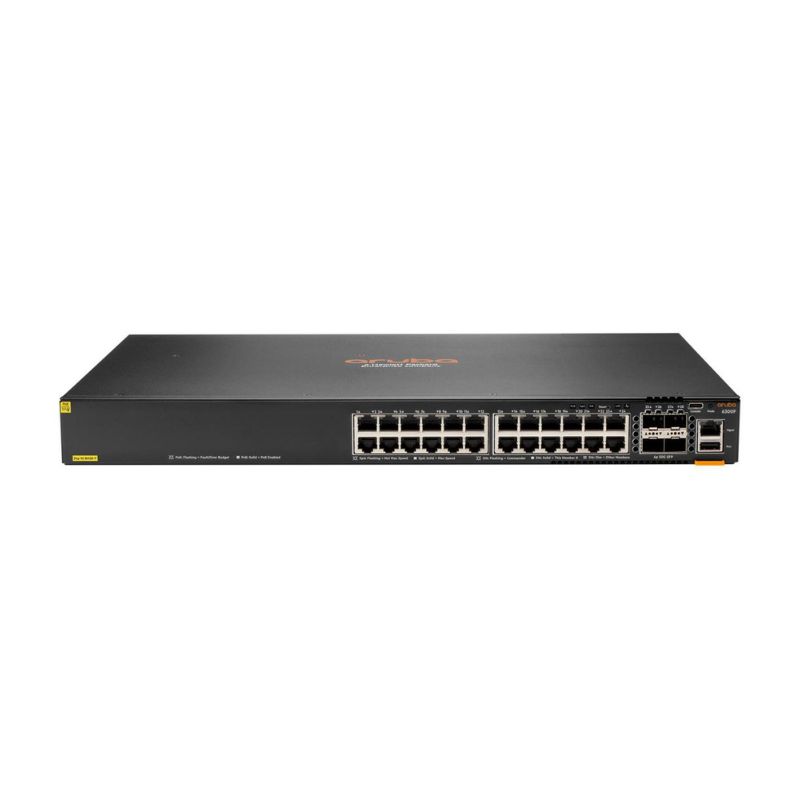

Thiết bị Switch Aruba 6300F 24G CL4 PoE 4SFP56 (JL666A)

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

I/O ports and slots	24x ports 10/100/1000 BASE-T PoE+ ports supporting up to 30W per port 4x 1/10/25/50G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at
Additional	1x USB-C console port
Ports And Slots	1x OOBM 1x USB Type A host port 1x Bluetooth dongle to be used with CX Mobile App
Power supplies	Internal (fixed) power supply (900W) Max PoE power: 370W
Fan tray	Fixed fans.
Physical characteristics
Dimensions	17.4 (w) x 12.9 (d) x 1.73 (h) in (44.2 cm x 32.7 x 4.39 cm))
Weight	10.91 lbs (4.95 kg)
CPU, Memory And Flash
Processor	Quad Core ARM Cortex™ A72 @ 1.8GHz
Memory	8 GBytes DDR4
Flash	32 GBytes eMMC
Mounting and enclosure	Rack Mount 1U
Performance
Packet Buffer	8 MB packet buffer memory
System switching capacity	880 Gbps
System throughput capacity	660 Mpps
Model switching capacity	448 Gbps
Model throughput capacity	334 Mpps
Average latency (LIFO, 64-byte packets)	1Gbps: 2.28µSec 10Gbps: 1.46µSec 25Gbps: 1.90µSec 50Gbps: 3.49µSec
Stack size	10 members
Max stacking distance	Up to 10 kms with long range transceivers
Stacking bandwidth	200 Gbps
Switched virtual interfaces (dual stack)	1,000
IPv4 host table (ARP)	28,800
IPv6 host table (ND)	28,800
IPv4 unicast routes	64,000
IPv6 unicast routes	32,000
IPv4 multicast routes	8,000
IPv6 multicast routes	8,000
MAC table capacity	29,490
IGMP groups	8,000
MLD groups	4,000
IPv4/IPv6/MAC ACL entries (ingress)	5000/1250/5000
IPv4/IPv6/MAC ACL entries (engress)	2000/500/2000
Environment
Operating temperature	32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de-rating per 1,000 feet above 5,000 feet Can support excursion to 131°F (55°C) for short periods1 of time.
Operating relative humidity	15% to 95% relative humidity at 104°F (40°C), non-condensing
Non-operating temperature	-40°F to 158°F (‘-40°C to 70°C)
Non-operating humidity	15% to 95% relative humidity at 149°F(65°C), non-condensing
Max operating altitude	Up to 10,000ft (3.048 Km)
Max non-operating altitude	Up to 15,000ft (3.048 Km)
Acoustic	Sound power, LWAd = 5 Bel Sound pressure, LpAm (bystander) = 31.0 dB
Primary airflow	Front and side-to-back
Electrical characteristics
Frequency	50/60 Hz
AC voltage	Fixed PSU: 100V-120V/200V-240V
Current (for voltages listed above)	Fixed PSU: 11A/6A
Power consumption (230VAC)	Hibernation (0 rpm fan): 12W Idle: 52W 100% traffic rate: 67W
