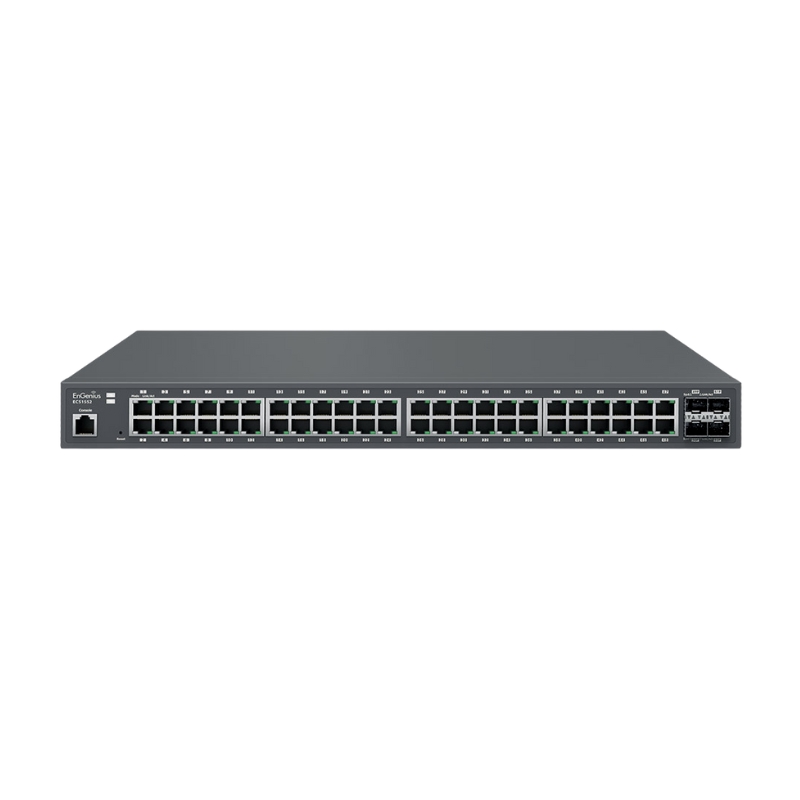

Thiết bị Switch EnGenius ECS1552

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

Hạng mục	Thông số
Port Standards	802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet 802.3x Full-Duplex Flow Control
Network Ports	(48) 10/100/1000 Mbps Ports (4) SFP+ Ports
Switching Capacity	176 Gbps
SDRAM	512 MB
Flash Memory	128 MB
Power Source	100 ~ 240VAC, 50-60Hz
Physical Interface	—
LED Indicators	Power LED, Fault LED
Ports	Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)	—
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
Software Features (L2 Feature)	—
Network Management	EnGenius Cloud, SkyKey, ezMaster, Local Web GUI
MAC Address Table	32K
Jumbo Frame	9K
Multicast Group	Max 256 groups
MLD Snooping	v1
QoS Queues	8
Trust Mode	CoS/802.1p, DSCP, CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR / Strict + WRR
Bandwidth Control	Port-based (Ingress/Egress)
Port Security	Max. 256 entries
Access Control List (ACL)	MAC-based ACL IPv4/IPv6 ACL ACL Binding Time-based ACL
Web GUI	HTTP IPv4/IPv6, HTTPS IPv4/IPv6
SSL Certificate	Certificate/Key Import
SNMP	v1/v2c/v3
RMON	1, 2, 3, 9
System Time	Time Setting / Daylight Saving
Common L2 Features	802.1d Spanning Tree, Loopback Detection, Multicast Filtering, IGMP Snooping & Forwarding, MLD Forwarding, 802.1Q VLAN, 802.3x Flow Control, 802.3ad Link Aggregation, DHCP Relay & Snooping, ARP Inspection & Validation, Voice VLAN, Port/Protocol-based VLAN, CoS Mapping, 802.1X Radius Authentication, IPv4/IPv6 Settings, EEE 802.3az, CLI, SSH, Telnet, TFTP, Config Upgrade/Backup, SNTP, SYSLOG
Environmental & Physical	—
Temperature Range	0°C – 50°C (32°F – 122°F)
Humidity	5% – 95% (Non-condensing)
Package Contents	1× ECS1552 Switch 1× Quick Installation Guide 1× Power Cord 1× RJ45 Console Cable 1× Rack Mount Kit
Dimensions & Weight	440 × 260 × 44 mm 3.71 kg (8.17 lbs)
