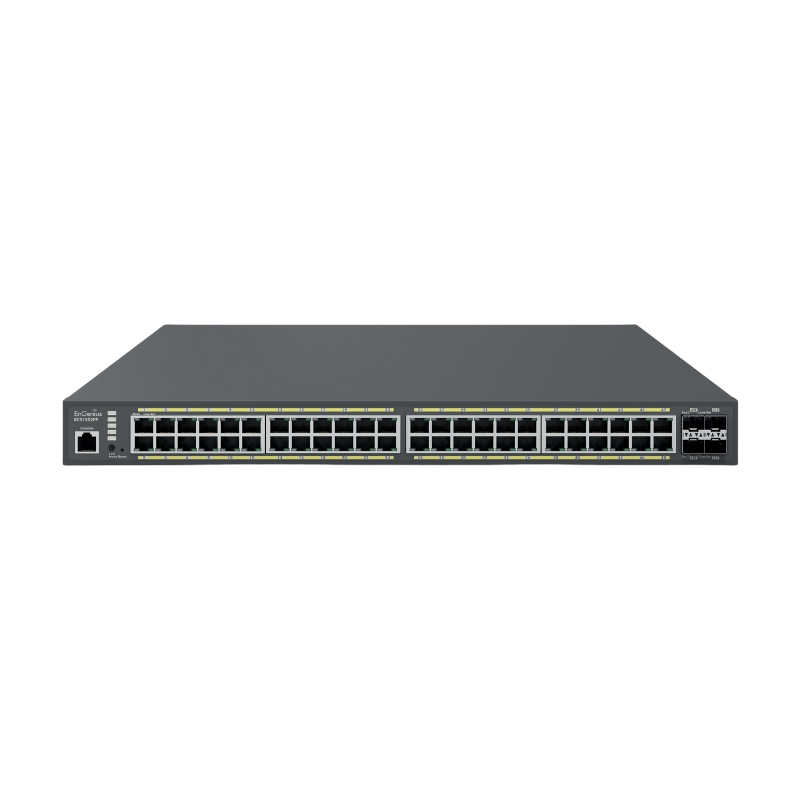

Thiết bị Switch EnGenius ECS1552FP

0 trên 5 dựa trên 2 đánh giá

(Có 0 đánh giá)

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Mục lục

Mục	Chi tiết
Port Standards	802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet 802.3x Full-Duplex Flow Control
Network Ports	(48) 10/100/1000 Mbps Ports (4) SFP+ Ports
Switching Capacity	176Gbps
SDRAM	512MB
Flash Memory	128MB
PoE Capable Ports	1–48 (802.3at/af)
Total PoE Budget	740W
Power Source	100 ~ 240VAC, 50–60Hz

Mục

Chi tiết

LED Indicators

Power LED

Fault LED

PoE Max LED

LAN Mode LED

PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)

Link/Activity/Speed (per SFP slot)

Mục	Chi tiết
Network Management	EnGenius Cloud SkyKey ezMaster Local Web GUI
MAC Address Table	32K
Jumbo Frame	10K
Multicast Group	Max 256 groups
MLD Snooping	v1
QoS Queues	8 queues
Trust Mode	Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR / Strict + WRR
Bandwidth Control	Port-based (Ingress/Egress)
Port Security	Max. 256 Entries
Access Control List (ACL)	MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time based ACL
Web GUI	HTTP IPv4/IPv6 HTTPS IPv4/IPv6
SSL Certificate	Certificate/Key Import
SNMP	v1/v2c/v3
RMON	1, 2, 3, 9
System Time	Time Setting / Daylight saving
Common L2 Features	802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Snooping IGMP Multicast Forwarding MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x Flow Control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping DHCP Snooping Source MAC Check ARP Inspection ARP Packet Validation Voice VLAN Port/Protocol-based VLAN CoS Mapping 802.1X Radius Authentication IPv4/IPv6 Settings 802.3az Energy Efficient Ethernet (EEE) CLI SSH/Telnet Server TFTP Client Config Upgrade/Backup SNTP SYSLOG

Mục	Chi tiết
Temperature Range	Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)	Operating: 5% – 95%
Package Contents	1x Cloud Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
Device Dimensions & Weights	Weight: 10.5 lbs (4.76 kg) Width: 17.32” (440 mm) Length: 10.23” (260 mm) Height: 1.73” (44 mm)
