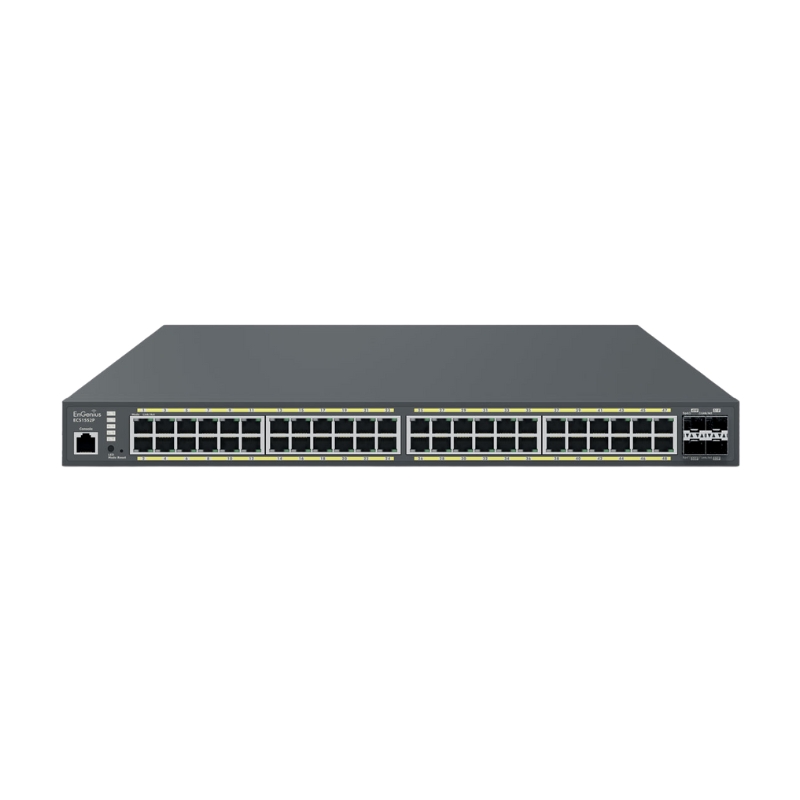

Thiết bị Switch EnGenius ECS1552P

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

Hạng mục	Chi tiết
Port Standards	802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet 802.3x Full-Duplex Flow Control
Network Ports	(48) 10/100/1000 Mbps Ports (4) SFP+ Ports
Switching Capacity	176Gbps
SDRAM	512MB
Flash Memory	128MB
PoE Capable Ports	1-48 (802.3at/af)
Total PoE Budget	410W
Power Source	100 ~ 240VAC, 50-60Hz
Physical Interface
LED Indicators	Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED
Ports	Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
Software Features (L3 Feature)
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
Software Features (L2 Feature)
Network Management	EnGenius Cloud SkyKey ezMaster Local Web GUI
MAC Address Table	32K
Jumbo Frame	10K
Multicast Group	Max 256 groups
MLD Snooping	MLD Snooping: v1
QoS – Priority Queues	Queue 8
Trust Mode	Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR / Strict + WRR
Bandwidth Control	Port-based bandwidth control (Ingress/Egress)
Port Security	Max. 256 Entries
Access Control List (ACL)	MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL
Web GUI	HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
SSL Certificate	Certificate/Key Import
SNMP	SNMP v1/v2c/v3 Support
RMON	RMON 1,2,3,9
System Time	Time Setting / Daylight saving
Common L2 Features	802.1d Spanning Tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x Flow Control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping DHCP Snooping Source MAC Check ARP Inspection ARP Packet Validation Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802.1X Radius Authentication IPv4 Settings IPv6 Settings IEEE 802.3az Energy Efficient Ethernet (EEE) CLI SSH Server Telnet Server TFTP Client Configuration Upgrade/Backup SNTP SYSLOG
Environmental & Physical
Temperature Range	Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing)	Operating: 5% – 95%
Package Contents	1x Cloud Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit
Device Dimensions & Weights	Weight: 16.84 lbs (7.64 kg) Width: 20.82” (529 mm) Length: 21.57” (548 mm) Height: 4.13” (105 mm)
