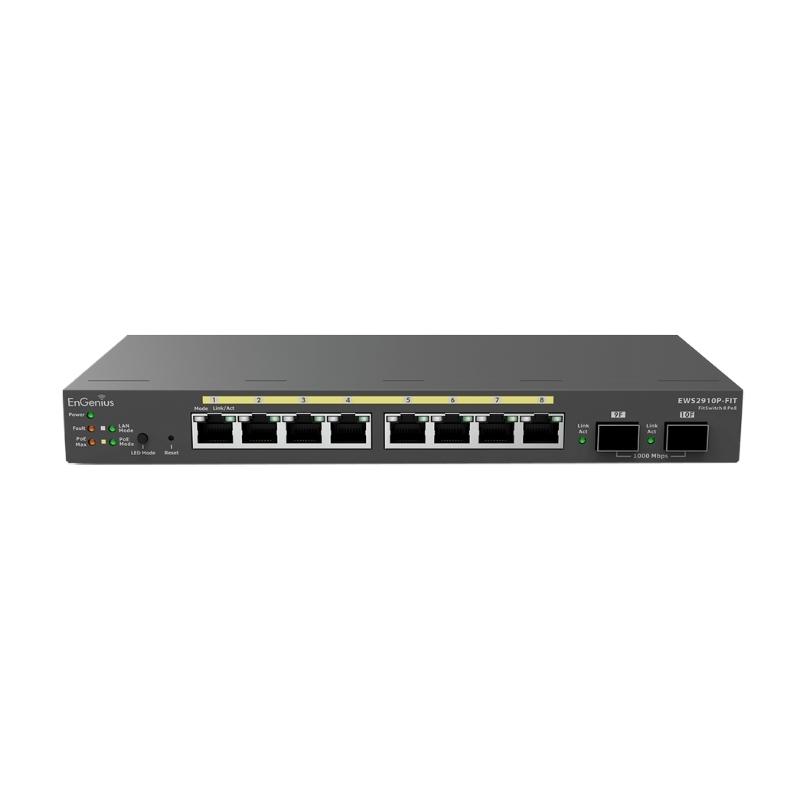

Thiết bị Switch EnGenius EWS2910P-FIT

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

Mục	Chi tiết
Port Standards	– 802.3 10Base-T Ethernet – 802.3u 100Base-TX Ethernet – 802.3ab 1000Base-T Ethernet – 802.3x Full-Duplex Flow Control
Network Port – Gigabit Ethernet Ports	8x GE Ports
Network Port – SFP Ports	2x SFP
Switching Capacity	16Gbps
SDRAM	256MB
Flash Memory	32MB
PoE Capable Ports	Ports 1–8
Total PoE Budget	55W
Power Source	100–240 VAC, 50/60Hz
Physical Interface
LED Indicators	Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Ports	Link/Activity/Speed (per Ethernet port & per SFP slot)
L3 Software Features
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
L2 Software Features
Network Management	EnGenius FITCloud, FITCON, Local Web GUI
MAC Address Table	8K
Jumbo Frame Size	9K
Multicast Group	Max. 256 groups
MLD Snooping	v1
QoS Priority Queues	8 queues
Trust Mode	CoS/802.1p, DSCP, CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR / Strict + WRR
Bandwidth Control	Port-based bandwidth control (Ingress/Egress)
Port Security	Max. 256 entries
ACL	MAC-based ACL, IPv4/IPv6 ACL, ACL Binding, Time-based ACL
Web GUI	HTTP IPv4/IPv6, HTTPS IPv4/IPv6
SSL Certificate	Certificate/Key Import
SNMP	v1/v2c/v3
RMON	1, 2, 3, 9
System Time	Time setting / Daylight saving
Common L2 Features	802.1d Spanning Tree, Loopback Detection, Multicast Filtering, IGMP Forwarding, IGMP Snooping, MLD Forwarding, 802.1Q VLAN tagging, 802.3x Flow Control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, Voice VLAN, Port-based VLAN, Protocol-based VLAN, CoS Mapping, 802.1X Radius, IPv4/IPv6 Settings, IEEE 802.3az EEE, CLI, SSH, Telnet, TFTP, Config Upgrade/Backup, SNTP, SYSLOG
Environmental & Physical
Temperature Range	Operating: 0°C ~ 40°C (32°F ~ 104°F)
Humidity (Non-Condensing)	Operating: 5% – 95%
Device Dimensions & Weight	Weight: 620g Width: 240 mm Length: 105 mm Height: 27 mm
Package Contents	1x FIT Managed Switch 1x Quick Installation Guide 1x Power Adapter 1x Power Cord 1x Wall Mount Kit 1x Ground Screw Set
