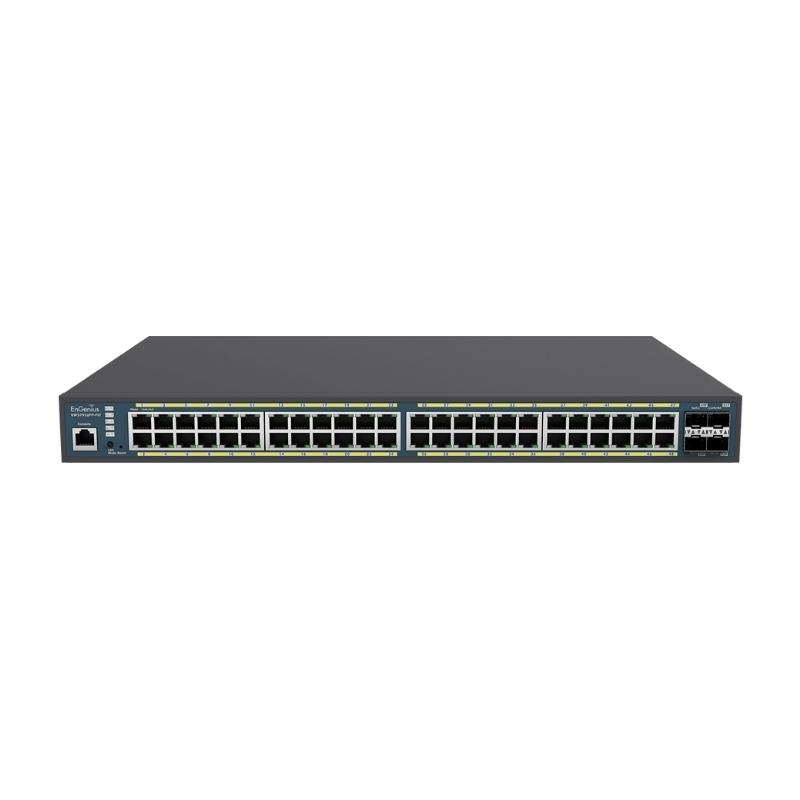

Thiết bị Switch EnGenius EWS7952FP-FIT

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

Port Standards	802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control
Network Port – Gigabit Ethernet Ports	48x GE Ports
Network Port – SFP Ports	4x SFP
Switching Capacity	104Gbps
SDRAM	256MB
Flash Memory	32MB
PoE Capable Ports	Ports 1-48
Total PoE Budget	740W
Power Source	100 to 240 VAC, 50/60Hz
Physical Interface
System Indicators	Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED
Port Indicators	Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)
L2 Features
Network Management	EnGenius FITCloud FITCON Local Web GUI
MAC Address Table	16K
Jumbo frame size	9K
Multicast Group	Max 256 groups
MLD Snooping	MLD Snooping: v1
QoS-number of Priority Queues Supported	Queue 8
QoS Trust Mode	Cos/802.1p DSCP CoS/802.1p-DSCP
Scheduling Mechanism	Strict / WRR/ Strict + WRR
Bandwidth Control	Port-based bandwidth control (Ingress/Egress)
Port Security	Max. 256 Entries
Access Control List (ACL)	MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Time base ACL
Web Graphical User Interface (GUI)	HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6
SSL Certificate	Certificate/Key Import
SNMP	SNMP v1/v2c/v3 Support
RMON	RMON 1,2,3,9
System Time	Time Setting/Daylight saving
Common L2 Features	802.1d Spanning tree Loopback Detection Multicast Filitering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree
L3 Features
Multiple IP Interface	20 IPv6 address
ARP Table	Max. 192 ARP entries
Static ARP	Static 192 ARP entries
IPv4 Static Route	Max. 63 entries
IPv6 Static Route	Max. 21 entries
Wireless Management Features
Deployment Options	Stand-Alone (Individually Managed) FitXpress FitController
Environmental & Physical
Temperature Range	Operating: 32°F to 122°F (0°C to50°C)
Humidity (Non-Condensing)	Operating: 5% – 95%
Dimensions & Weight
Device Dimensions & Weights	Weight: 10.5 lbs. (4.76 kg) Width: 17.32” (440 mm) Length: 12.20” (310 mm) Height: 1.73” (44 mm)
