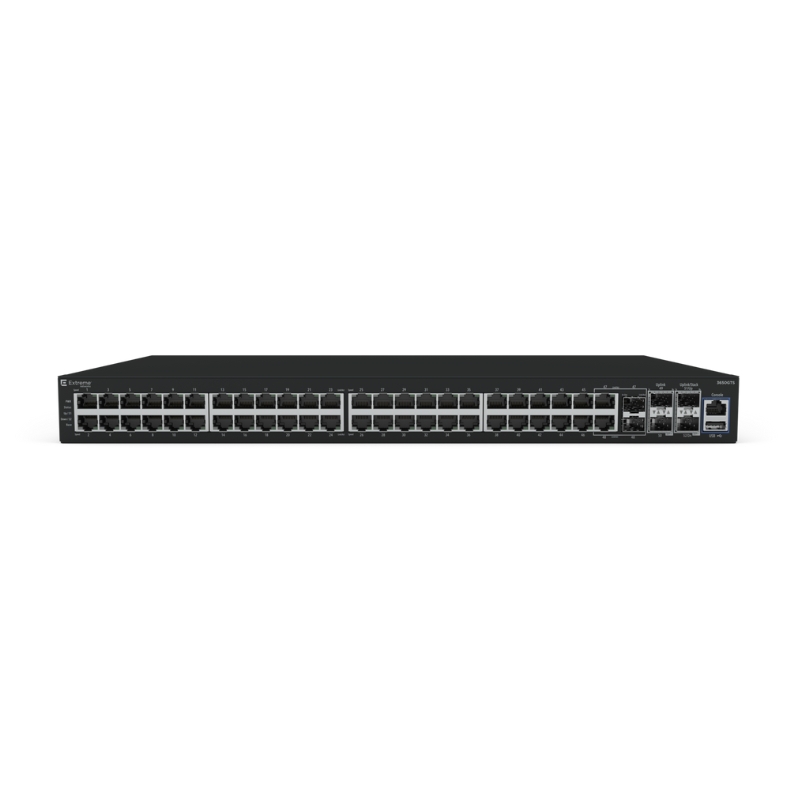

Thiết bị Switch Extreme L3 3650GTS 54 cổng (AL3600A06-E6)

– 1000BASE-T Access Ports (supporting both Half- and Full-Duplex)

– 1000BASE-SFP Combo Network Uplink Ports

– 10GBASE-SFP+ Network Uplink Ports

• Switching Fabric:

– 128Gbps (Full-Duplex) for 26-port models

– 188Gbps (Full-Duplex) for 50-port models

• Frame Forwarding:

– 95Mpps for 26-port models

– 130Mpps for 50-port models

• Nominal Latency: 3.5 microseconds for 64 Byte packets

• Nominal Jitter: 0.84 microseconds for 64 Bytepackets

• Frame Length: 64 to 1518 Bytes (Untagged), 64 to 1522 Bytes (Tagged)

• Jumbo Frame: up to 9,216 Bytes (802.1Q Tagged)

• Stackable Chassis Throughput: 24Gbps (Full-Duplex) per Switch, up to 192Gbps

• Port-based VLANs: 256

• MSTP Instances: 8

• MLT/LACP Groups: 6

• Links per MLT/LACP Group: 4

• DHCP Snooping Entries: up to 512

• 802.1X Clients: 32 per Port

• LLDP Neighbors: up to 816

• Static ARP Entries: up to 256

• IP Interfaces: up to 64

• IP Routes: up to 256

• IP Static Routes: up to 32

• IP Route Policies: up to 64

• RIP Interfaces: up to 16

• RIP Routes: up to 256

• Up to 41.77W, up to 0.69A, and up to 142.52BTU/hr @ 100-110VAC

• 27.89W power consumption at idle, and 35.50W under typical traffic load

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 0 to 95% maximum relative humidity, non-condensing

• Storage Humidity: 10 to 95% maximum relative humidity, non-condensing

• Operating Altitude: 0 to 3,048m (0 to 10,000ft) maximum Storage altitude: 0 to 12,192m (0 to 40,000ft) maximum

• Acoustic Noise:

– Less than 47dbA at 25°C

– Less than 55dbA at 50°C
