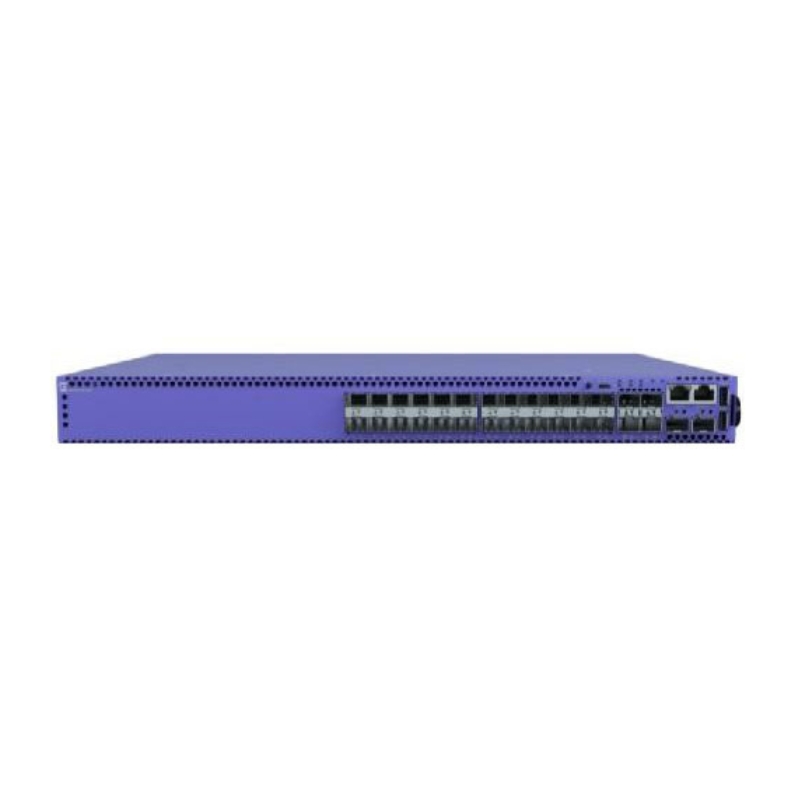

Thiết bị Switch Extreme L3 5420F-24S-4XE

  • MACsec-capable

4 x 1/10Gb SFP+ uplink ports (unpopulated)

  • MACsec-capable

2 x Stacking/SFP-DD ports* (unpopulated)

1 x Serial console port (RJ-45)

1 x 10/100/1000BASE-T out-of-band management port

2 x USB A ports for management or external USB flash

1 x USB Micro-B console port

• IPv4 ARP Table: 16,000

• IPv4 Route Table: 12,000

• IP Multicast Entries (S,G,V): 6,000

• IPv6 Route Table: 6,000

• IPv6 Neighbor Table 6,000

• ACL (Ingress/Egress): 8,000/1,024

• QoS Egress Queues/Port: 8

• VLANs: 4,094

• IP Interfaces (aka Routed VLANs): 1,533

One Policy Scaling

• Policy Profiles: 63

• Unique Permit/deny rules per switch: 4,024

• IPv4 ARP Table: 8,000

• IPv4 Route Table: 11,750

• IP Multicast Entries (S,G,V): 4,000

• IPv6 Route Table: 5,750

• IPv6 Neighbor Table 8,000

• ACL (Ingress/Egress): 1,024/336

• QoS Egress Queues/Port: 8

• VLANs: 4,059

• IP Interfaces (aka Routed VLANs): 248

Fabric Connect Scaling

• Fabric Adjacencies per switch: 50

• Fabric nodes per area (BEB + BCB): 500

• BEB Nodes per VSN (I-SID): 500

• L2 VSNs: 512

• L3 VSNs: 64
