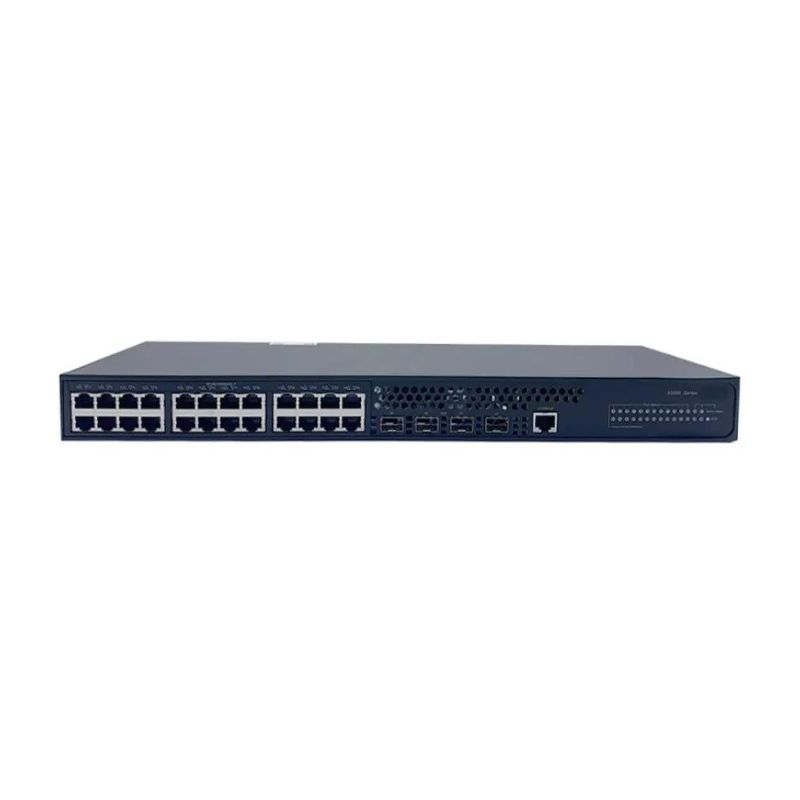

Thiết bị Switch H3C L3 LS-5560S-28S-SI-GL

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

Datasheet H3C LS-5560S-28S-SI-GL
Item	S5560S-28S-SI
Port switching capacity	128 Gbps
Packet forwarding rate	96 Mpps
CPU	1 Core, 800MHz
Dimensions (H × W × D)	43.6 × 440 × 160 mm
Weight	< 2.5 kg
SDRAM/Flash	512MB/256MB
Maximum stacking num	9
Stacking bandwidth	80Gbps
Service ports	24× 10/100/1000Base-T autosensing Ethernet ports 4× 10G SFP+ ports
Power consumption	MIN: AC 10W MAX: AC 24W
Operating temperature	0ºC to 45ºC (32°F to 113°F)
Operating humidity	10% RH to 90% RH, non-condensing
Link aggregation	1G/10G port aggregation Static aggregation Dynamic aggregation Multichassis link aggregation
Jumbo frame	10,000 byte
MAC address table	Blackhole MAC address MAC learning limit
Flow control	802.3x flow control and half-duplex backpressure
VLAN	Port-based VLAN QinQ Voice VLAN MAC VLAN
ARP	ARP Detection ARP speed limit
ND	Supported
VLAN virtual port	Supported
DHCP	DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82
DNS	Static and Dynamic DNS IPV4 and IPV6
Routing protocols	IPV4/IPV6 static routing RIP/RIPng, OSPFV1/V2/V3
Strom suppression	Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
Layer 2 ring network protocol	STP/RSTP/MSTP STP Root Protection Smart Link RRPP
Mirroring	Flow mirroring Port mirroring
QoS/ACL	Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limiting Flow redirection Time-range 802.1p priority mapping and DSCP priority mapping
Layer 2 ring network protocol	STP/RSTP/MSTP/PVST+/RPVST+ STP Root Protection Smart Link RRPP
Multicast	IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2 IGMP v1/v2/v3 and PIM-SM/PIM-SSM/PIM-DM
Security	Hierarchical user management and password protection MAC-based authentication 802.1X authentication RADIUS authentication, HWTACACS authentication SSH2.0 Port isolation Port security IP source guard Dynamic ARP detection BPDU guard and root guard HTTPs l EAD
Loading and upgrading	Loading and upgrading through FTP/TFTP
Management and maintenance	Configuration from CLI Login through Telnet, and the console port Simple Network Management Protocol (SNMP) Remote Monitoring (RMON) IMC network management system WEB management System log Alarming based on severity IRF2 NTP LLDP, LLDP-MED Sflow Debugging information output Telnet-based remote maintenance NQA DLDP Virtual Cable TestLoopback detection
