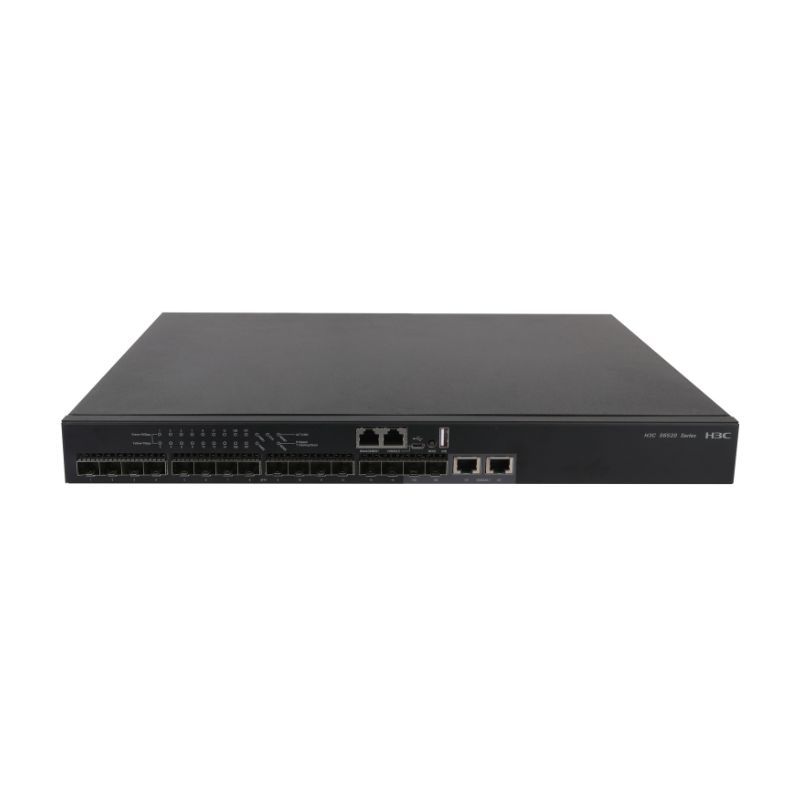

Thiết bị Switch H3C L3 LS-6520X-16ST-SI-GL

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật
Giao diện	16×1/10G SFP+ port 2 x Combo 1G/2.5G/5G/1 0G Base-T Multi-giga ports
Khe mở rộng	N/A
Khả năng chuyển mạch Port	320Gbps
Tỉ lệ chuyển tiếp	240Mpps
PoE	Không hỗ trợ
Kích thước	440×360×43.6 mm
Trọng lượng	≤3.9kg
Môi trường	– Nhiệt độ hoạt động : -40℃ to 70℃ – Độ ẩm : 5% RH to 95% RH, không ngưng tụ
Layer 2 Switching
Mac Address	– Static MAC address – Blackhole MAC address – MAC learning limit
VLAN	– Port-based VLAN (up to 4094 VLANs) – Default VLAN – Private VLAN – QinQ and flexible QinQ – VLAN mapping – PVST+ and RPVST+
Loop-free redundant Layer 2 topology	– STP/RSTP/MSTP/PVST/PVST+ – STP Root Guard – BPDU Guard – BPDU Blocking and Root Guard – Link Detection (UDLD) – Digital Diagnostic Monitor (DDM) – G.8032 Ethernet ring protection switching (ERPS)
Layer 3
Virtualization	– Intelligent Resilient Framework 2 (IRF2) – Distributed device management – Distributed link aggregation – Distributed resilient routing – Stacking through standard Ethernet ports – Local device stacking and remote device stacking – LACP-, BFD-, and ARP-based multi-active detection (MAD)
IP Routing	– IPv4/IPv6 static routing – Dynamic routing such as RIP v1/2 and RIPng – Policy routing – Equal-cost multi-path routing (ECMP) – VRRP – OSPFv1/v2/v3 – BGP – IS-IS
DHCP	– DHCP/DHCPv6 Snooping – DHCP/DHCPv6 Relay – DHCP/DHCPv6 Client – DHCP/DHCPv6 server(EI) – DHCP option 82
VXLAN	– VXLAN L2 switching – VXLAN L3 routing – VXLAN VTEP – IS-IS+ENDP distributed control plane – MP-BGP+EVPN distributed control plane – OpenFlow+Netconf centralized control plane
Convergence
QoS/ACL	– Rate limit for receiving and transmitting packets – CAR – Eight output queues per port – Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR – 802.1p priority and DSCP priority – Layer 2 to Layer 4 packet filtering – Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, protocol, and VLAN – Time range – WRED
Bảo mật
Tính năng bảo mật	– Hierarchical user management and password protection – MAC-based authentication – 802.1X – Storm constrain – AAA authentication – RADIUS authentication – HWTACACS – SSH2.0 – Port isolation – IP/Port/MAC binding – IP source guard – HTTPs – SSL – Public Key Infrastructure (PKI) – CPU protection – Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS) – ND Detection, RA Guard
Quản lý và bảo trì
Quản lý	– Loading and upgrading through XModem/FTP/TFTP – Zero Touch Provisioning – Configuration through CLI, Telnet, and console port – SNMPv1/v2c/v3 – Restful – Python – Job scheduler – ISSU – VCT – 802.1ag and 802.3ah – Simple Network Management Protocol – IMC network management system – System log – Alarming based on severity – NTP – Power, fan, and temperature alarming – Debugging information output – Ping and Tracert – Track – Telnet-based remote maintenance
