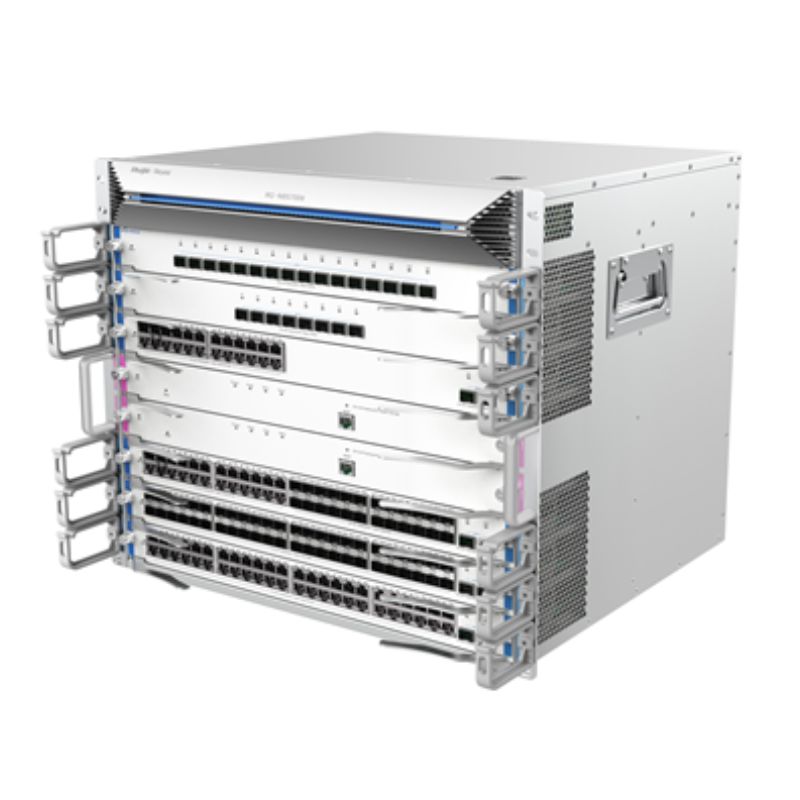

Thiết bị Switch Ruijie RG-NBS7006

0 trên 5 dựa trên 2 đánh giá

Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Hàng chuẩn hãng, bảo đảm nguồn gốc rõ ràng.
Hỗ trợ tư vấn dự án và giải pháp miễn phí.
Đồng hành cùng đại lý và các gói dự án lớn nhỏ.
Cung cấp chứng từ CO/CQ đầy đủ, minh bạch.
Dịch vụ bán hàng online nhanh chóng, giao hàng toàn quốc.
Hỗ trợ kỹ thuật chu đáo, sẵn sàng đồng hành cùng khách hàng.

Description
Reviews (0)

Thông số kỹ thuật

10/100/1000Base-T ports	288 x 10/100/1000BASE-T ports (Maximum
SFP ports	288 x SFP ports (Maximum)
SFP+ ports	96 x SFP+ ports (Maximum)
Layer Type	Layer 3
Switching capacity	1920 Gbps
Forwarding rate	1440 Mpps
Packet Buffer	16 Mbit
MAC address table	32,000
Maximum VLAN Support	4094
Dimensions (W x D x H)	442 mm x 410 mm x 396 mm 9U
Weight (With package)	31.25kg
MTBF	> 400,000
Layer 2 Features
Jumbo Frame	9216
Flow Control	Yes
STP (IEEE 802.1d)	Yes
RSTP (IEEE 802.1w)	Yes
Port Fast	Yes
BPDU Guard	Yes
Errdisable Recovery	Yes
Max. Aggregation Group	16
Max. Member per Group	8
Unknow Unicast Storm Suppression	Yes
Multicast / Broadcast Storm Suppression	Yes
Many-to-One Mirroring	Yes
VLAN Range	1-4094
Port-based VLAN	Yes
MAC-based VLAN	Yes
IP-based VLAN	Yes
Voice VLAN	Yes
RLDP	Yes
LLDP / LLDP-MED	Yes
Cable Testing	Yes
IGMP Snooping v1/v2/v3	Yes
Software Features
Ping	Yes
Traceroute	Yes
ACL Entries	1900
Static Routing	Yes
IP Standard ACL	Yes
MAC-based Extended ACL	Yes
IP-based Extended ACL	Yes
Port-based Rate Limit (Ingress/Egress)	Yes
SNMP v1/v2c/v3	Yes
OSPF	Yes
RIP	Yes
IPv6	Yes
SNMP	Yes
802.1X	Yes
DHCP Server	Yes
Web Management	Yes
Management IP	10.44.77.200
HTTP/HTTPS	Yes
Cloud Management	Yes
SON (Self-Organizing Network) with IP	Yes
Camera Recognition	Yes
Loop Prevention	Yes
Loop Notification	Yes
Protection Port	Yes
IP Source Guard	Yes
Anti-ARP Spoofing	Yes
DHCP Snooping	Yes
DHCP Client	Yes
Physical Features
Reset Button	rear
Cable Hot-swappable	Yes
Power Supply Slot	4
Power Supplies	modular power supply
Power Consumption	≤ 100W
EEE	Yes
Fan	2
Airflow	Left/right-to-Rear
Fan Adaptive Speed Adjustment	Yes
Acoustic Noise	< 55dB
Operating Temperature	0°C to 50°C (32°F to 122°F
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH
Storage Humidity	5% to 95% RH
Port Surge	6 kV
Operating Altitude (meters)	-500 to 5000
Certificate	CE, RoHS
