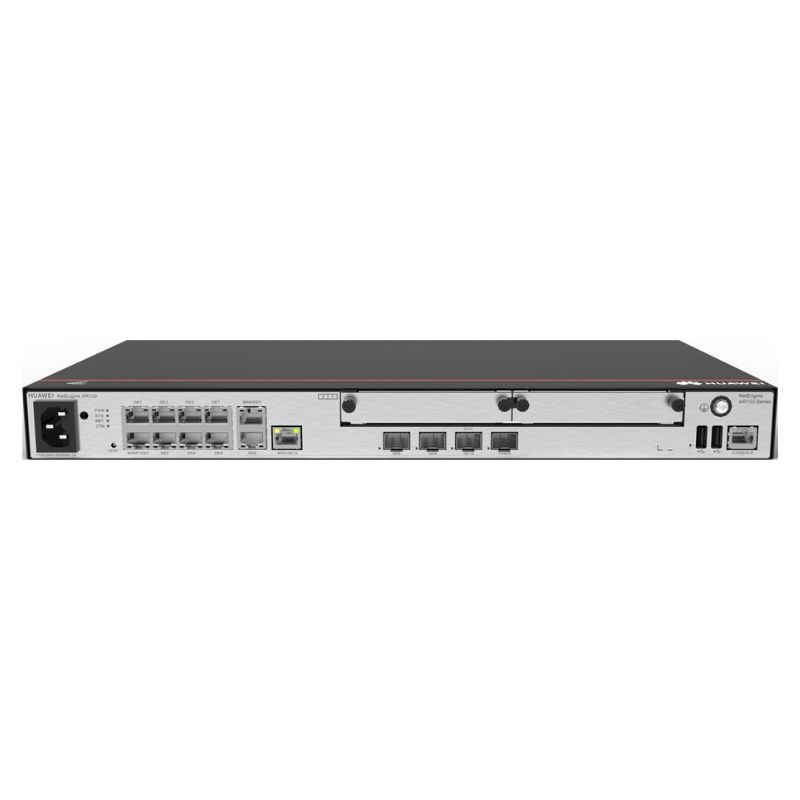

Router Huawei NetEngine AR730

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:14:43 +0000

Thông số kỹ thuật

Thông Số	Chi Tiết
Forwarding performance	9 Mpps to 25 Mpps
Number of connected terminals	1200
Installation type	Rack, Work bench, Against the wall
Dimensions without packaging (H x W x D)	• Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Chassis height	1
Dimensions with packaging (H x W x D)	90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging	4.6 kg (10.12 lb)
Weight without packaging	3.2 kg (7.04 lb)
RTC	Supported
Typical power consumption	28 W
Maximum power consumption	33 W
Power supply mode	AC built-in
Number of power modules	1
Input voltage range	90 V to 264 V, 47 Hz to 63 Hz
Maximum output power	70 W
Safety regulation certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 GB 4943.1
EMC certification	EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3
Types of fans	Built-in
Number of fan modules	1
Long-term operating temperature	0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.)
Long-term operating relative humidity	5% RH to 95% RH, non-condensing
LAN ports	8 x GE electrical, 1 x GE combo
WAN ports	2 x GE combo, 1 x 10GE optical (SFP+)
Airflow	Left-to-right airflow
Environmental standards compliance	RoHS REACH WEEE

Bài viết Router Huawei NetEngine AR730 đã xuất hiện đầu tiên vào ngày VNS.

Router Huawei NetEngine AR303

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:11:25 +0000

Thông số kỹ thuật

Thông Số	Chi Tiết
Packet forwarding rate	1Mpps
Number of connected terminals	200
Installation type	• Work bench • Against the wall
Dimensions without packaging (H x W x D)	• Basic dimensions: 38.0 mm x 240.0 mm x 161.5 mm (1.5 in. x 9.45 in. x 6.36 in.) • Maximum dimensions: 41.4 mm x 240.0 mm x 161.5 mm (1.63 in. x 9.45 in. x 6.36 in.)
Dimensions with packaging (H x W x D)	90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.)
Weight with packaging	1.18 kg (2.60 lb)
Weight without packaging	0.58 kg (1.28 lb)
Console port	RJ45
RTC	Supported
Typical power consumption	9 W
Maximum power consumption	12 W
Power supply mode	AC external
Number of power modules	1
Rated input voltage	110 V to 220 V, 50 Hz/60 Hz
Input voltage range	90 V to 270 V, 45 Hz to 65 Hz
Maximum input current	0.8 A
Maximum output power	24 W
LAN ports	4 x GE electrical interfaces
WAN ports	1 x GE Combo WAN
Long-term operating temperature	0°C to 40°C (32°F to 104°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH, non-condensing
Long-term operating altitude	< 5000 m (16404.2 ft.)
IP rating	IP20
Environmental standards compliance	RoHS REACH WEEE
Cloud Management	Not Supported

Bài viết Router Huawei NetEngine AR303 đã xuất hiện đầu tiên vào ngày VNS.

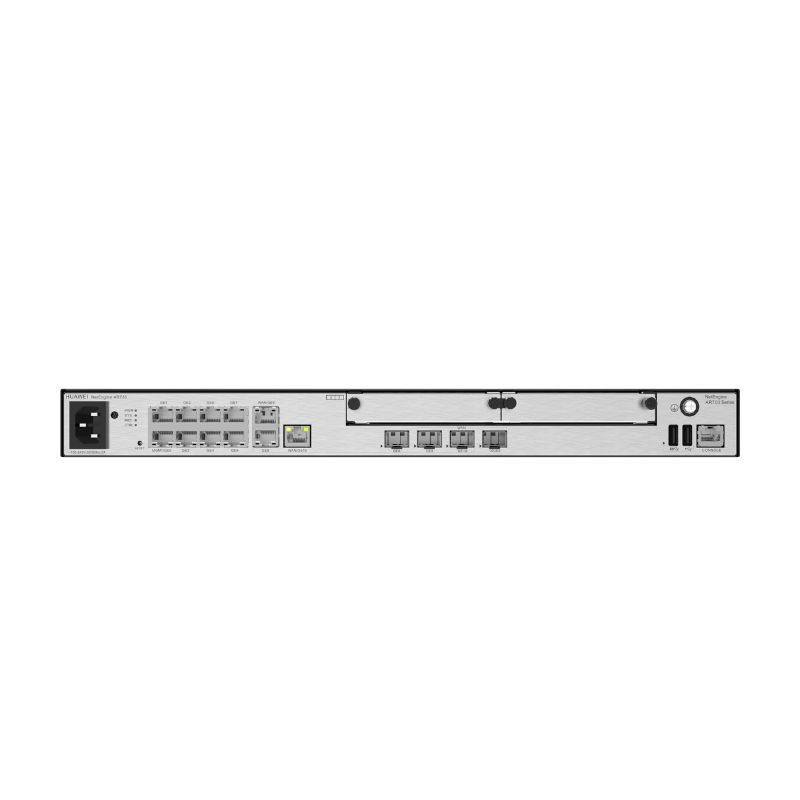

Router Huawei AR730

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:08:48 +0000

Thông số kỹ thuật

Remarks	When configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions. The routers manufactured after March 31, 2023 support only V300R022C10 and later versions.
Installation type	Rack,Work bench,Against the wall
Dimensions without packaging (H x W x D)	– Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.)
Dimensions with packaging (H x W x D)	90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Weight with packaging	4.6 (10.12)
Weight without packaging	3.2 (7.04)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
Console port	RJ45
RTC	Supported
Maximum power consumption	33
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage	100 V to 240 V, 50 Hz/60 Hz
Input voltage range	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current	2
Maximum output power	70
Safety regulation certification	IEC/EN/UL60950-1 IEC/EN/UL62368-1 GB 4943.1
EMC certification	EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	2 x SIC
Number of service board slots	2
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power)	52.3 dB(A)
Long-term operating temperature	0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity	5% to 95%, noncondensing
Long-term operating altitude	< 5000 m (16404.2 ft.)
MTBF	30.05
MTTR	2
Availability	0.9999924012
Frequency band combination	[]

Bài viết Router Huawei AR730 đã xuất hiện đầu tiên vào ngày VNS.

Huawei eKitEngine S380-L4T1T

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:06:18 +0000

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
Chassis height	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging	0.8 (1.76)
Weight with packaging	1.0 (2.2)
Typical power consumption	5.99
Typical heat dissipation	27.3
Maximum power consumption	6.11
Maximum heat dissipation	30.7
Static power consumption	4.25
100% power consumption	6.05
MTBF	77.35
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	5
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	5
Maximum number of FE ports	5
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage	AC input: 100–240 V AC; 50/60 Hz
Input voltage range	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power adapter output: 12 V DC
Maximum input current	1:00 SA
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Not supported
Maximum PoE power consumption	–
PoE+ power interfaces	–
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	–
Full load PoE power consumption 30W (802.3at)	–
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification

Bài viết Huawei eKitEngine S380-L4T1T đã xuất hiện đầu tiên vào ngày VNS.

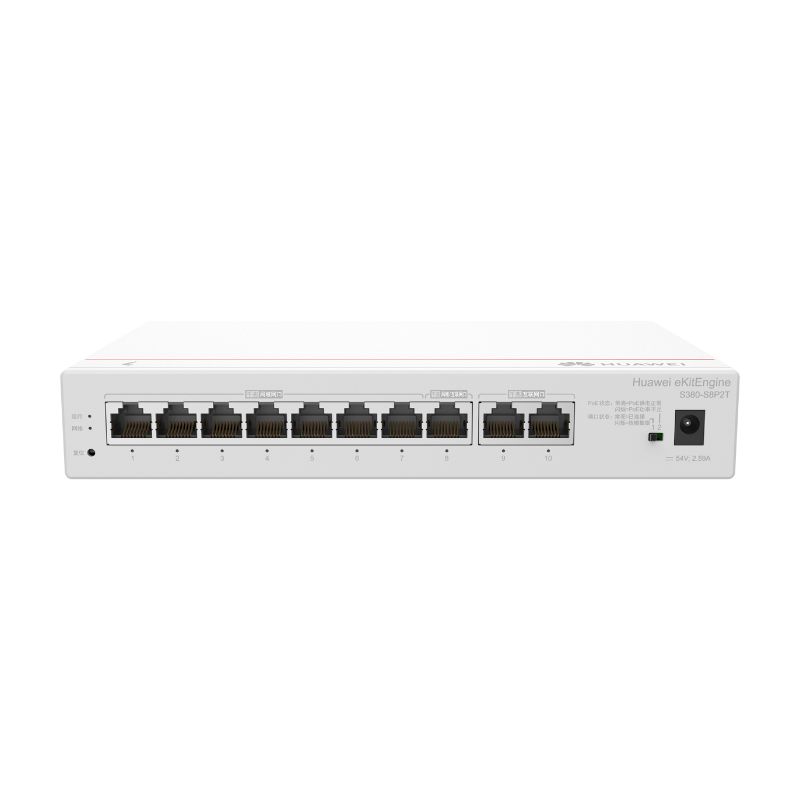

Huawei eKitEngine S380-S8P2T

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:03:40 +0000

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D)	150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging	1.5 (3.31)
Weight with packaging	1.8 (3.97)
Typical power consumption	12.4
Typical heat dissipation	42.3
Maximum power consumption	145.8 W (PoE: 124 W)
Maximum heat dissipation	497.5
Static power consumption	7.53
100% power consumption	12.52
MTBF	65.36
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current	2.68 A
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Supported
Maximum PoE power consumption	124 W
PoE+ power interfaces	8
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	8
Full load PoE power consumption 30W (802.3at)	4
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification

Bài viết Huawei eKitEngine S380-S8P2T đã xuất hiện đầu tiên vào ngày VNS.

Huawei eKitEngine S380-L4P1T

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 03:01:07 +0000

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
Chassis height	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging	0.9 (1.98)
Weight with packaging	1.1 (2.43)
Typical power consumption	7.19
Typical heat dissipation	24.5
Maximum power consumption	61.65 W (PoE: 50 W)
Maximum heat dissipation	210.4
Static power consumption	4.54
100% power consumption	7.35
MTBF	75.89
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	5
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	5
Maximum number of FE ports	5
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current	1.07 A
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Supported
Maximum PoE power consumption	50 W
PoE+ power interfaces	4
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	3
Full load PoE power consumption 30W (802.3at)	1
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification

Bài viết Huawei eKitEngine S380-L4P1T đã xuất hiện đầu tiên vào ngày VNS.

Huawei eKitEngine S380-S8T2T

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 02:58:44 +0000

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 165.2 mm (1.72 in. x 17.4 in. x 6.5 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Chassis height	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Weight without packaging	1.6 (3.53)
Weight with packaging	2.1 (4.63)
Typical power consumption	10.4
Typical heat dissipation	35.5
Maximum power consumption	10.55
Maximum heat dissipation	36
Static power consumption	5.82
100% power consumption	10.51
MTBF	67.79
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage	AC input: 100–240 V AC; 50/60 Hz
Input voltage range	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current	0.8 A
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Not supported
Maximum PoE power consumption	–
PoE+ power interfaces	–
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	–
Full load PoE power consumption 30W (802.3at)	–
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification

Bài viết Huawei eKitEngine S380-S8T2T đã xuất hiện đầu tiên vào ngày VNS.

Huawei eKitEngine S380-H8T3ST

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 02:56:29 +0000

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Chassis height	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Weight without packaging	1.6 (3.53)
Weight with packaging	2.1 (4.63)
Typical power consumption	11.25
Typical heat dissipation	38.4
Maximum power consumption	11.5
Maximum heat dissipation	39.2
Static power consumption	6.49
100% power consumption	11.49
MTBF	63.71
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	11
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	11
Maximum number of FE ports	10
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage	AC input: 100–240 V AC; 50/60 Hz
Input voltage range	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current	0.8 A
CPU	Quad-core, 800 MHz
Memory	DDR4: 1 GB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Not supported
Maximum PoE power consumption	–
PoE+ power interfaces	–
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	–
Full load PoE power consumption 30W (802.3at)	–
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification

Bài viết Huawei eKitEngine S380-H8T3ST đã xuất hiện đầu tiên vào ngày VNS.

Router Huawei AR720

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 28 Nov 2025 02:54:05 +0000

Thông số kỹ thuật

Remarks	When configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions. The routers manufactured after March 31, 2023 support only V300R022C10 and later versions.
Installation type	Rack,Work bench,Against the wall
Dimensions without packaging (H x W x D)	– Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.41 in. x 8.68 in.) – Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.41 in. x 8.87 in.)
Dimensions with packaging (H x W x D)	90 mm x 390 mm x 570 mm (3.54 in. x 15.35 in. x 22.44 in.)
Weight with packaging	4.6 (10.12)
Weight without packaging	3.2 (7.04)
CPU	1.4 GHz, 4 Cores
Memory	4 GB
Console port	RJ45
RTC	Supported
Maximum power consumption	33
Power supply mode	AC built-in
Number of power modules	1
Rated input voltage	100 V to 240 V, 50 Hz/60 Hz
Input voltage range	90 V to 264 V, 47 Hz to 63 Hz
Maximum input current	2
Maximum output power	70
Safety regulation certification	IEC/EN/UL60950-1 IEC/EN/UL62368-1 GB 4943.1
EMC certification	EN 55032 EN 55035 CISPR 32 GB 9254 EN 55024 CISPR 24 GB/T 17618 EN 300 386 VCCI-CISPR 32 AS/NZS CISPR32 IEC 61000-3-2/EN 61000-3-2 IEC 61000-3-3/EN 61000-3-3
Type of fans	Built-in
Number of fan modules	0
Heat dissipation mode	Air cooling
Airflow direction	Left to right
Extended slots (standard configuration)	2 x SIC
Number of service board slots	2
Redundant power supply	Not supported
RPS input	Not supported
PoE	Not supported
Noise at normal temperature (acoustic power)	52.3 dB(A)
Long-term operating temperature	0°C to 45°C (32°F to 113°F) Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity	5% to 95%, noncondensing
Long-term operating altitude	< 5000 m (16404.2 ft.)
MTBF	30.05
MTTR	2
Availability	0.9999924012
Frequency band combination	[]

Bài viết Router Huawei AR720 đã xuất hiện đầu tiên vào ngày VNS.
