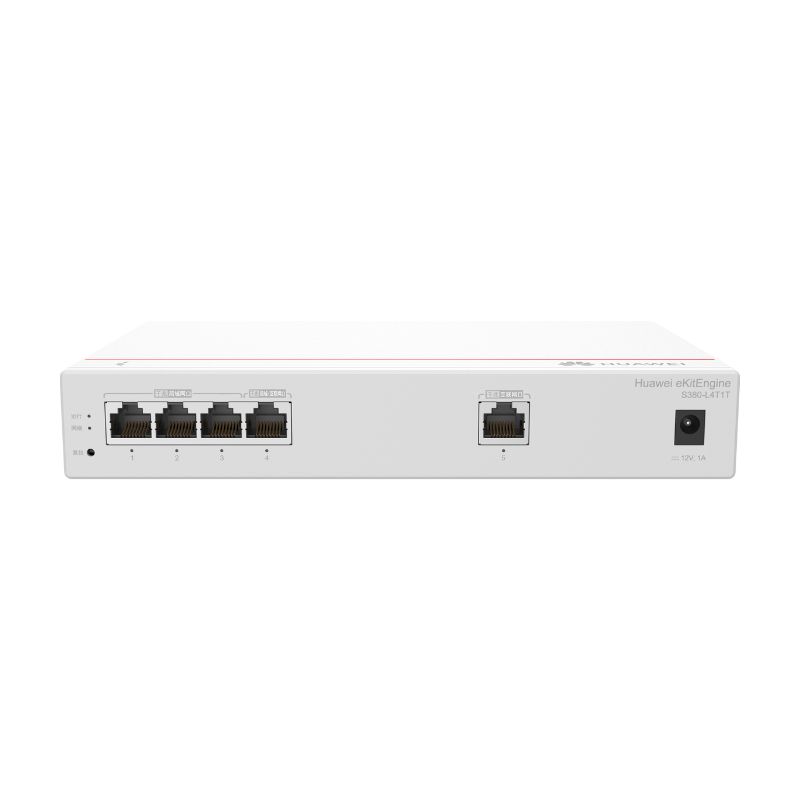

Huawei eKitEngine S380-L4T1T

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: eKitEngine S380-L4T1T Tình trạng: Còn hàng

Liên hệ báo giá: 0981.189.881

Huawei eKitEngine S380-L4T1T
Huawei eKitEngine S380 series Multi-Service Gateway (S380 for short) are designed for the SOHO market

Mô tả
Đánh giá (0)

Thông số kỹ thuật

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
Chassis height	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging	0.8 (1.76)
Weight with packaging	1.0 (2.2)
Typical power consumption	5.99
Typical heat dissipation	27.3
Maximum power consumption	6.11
Maximum heat dissipation	30.7
Static power consumption	4.25
100% power consumption	6.05
MTBF	77.35
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	5
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	5
Maximum number of FE ports	5
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage	AC input: 100–240 V AC; 50/60 Hz
Input voltage range	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power adapter output: 12 V DC
Maximum input current	1:00 SA
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	–
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	–
PoE	Not supported
Maximum PoE power consumption	–
PoE+ power interfaces	–
PoE++ power interfaces	–
Full load PoE power consumption 15.4W (802.3af)	–
Full load PoE power consumption 30W (802.3at)	–
Full load PoE++ power consumption 60W (802.3bt)	–
Full load PoE++ power consumption 90W (802.3bt)	–
Certification	EMC certification Safety certification Manufacturing certification
