Milesight UG63 Mini LoRaWAN Gateway

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 05 Dec 2025 06:23:10 +0000

Thông số kỹ thuật

Hardware System
CPU	528 MHz, ARM Cortex-A7
Memory	256 MB DDR4 RAM
Flash	4 GB eMMC
LoRaWAN
Antenna	2 × Internal Antennas
Channel	8 (Half/Full-duplex)
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT	Support
Ethernet Interface
Port	1 × RJ45 (PoE PD supported)
Physical Layer	10/100 Base-T (IEEE 802.3)
Data Rate	10/100 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Others
Reset Button	1 × RST
Console Port	1 × Type-C
LED Indicators	1 × SYS, 1 × LoRa
Built-in	Watchdog, RTC, Timer
Software
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management	Web, CLI, DeviceHub, Milesight IoT Cloud
Power Supply and Consumption
Power Input	1. 1 × 802.3af standard PoE input
Power Input	2. 5V by Type-C Port
Power Consumption	Max 3.3 W
Physical Characteristics
Ingress Protection	IP30
Dimensions	Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & Material	White, PC + ABS
Installation	Desktop, Wall or Ceiling Mounting
Environmental
Operating Temperature	-20°C to +50°C (-4℉ to +122℉)
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
Approvals
Regulatory	CE, FCC
Environmental	RoHS

Bài viết Milesight UG63 Mini LoRaWAN Gateway đã xuất hiện đầu tiên vào ngày VNS.

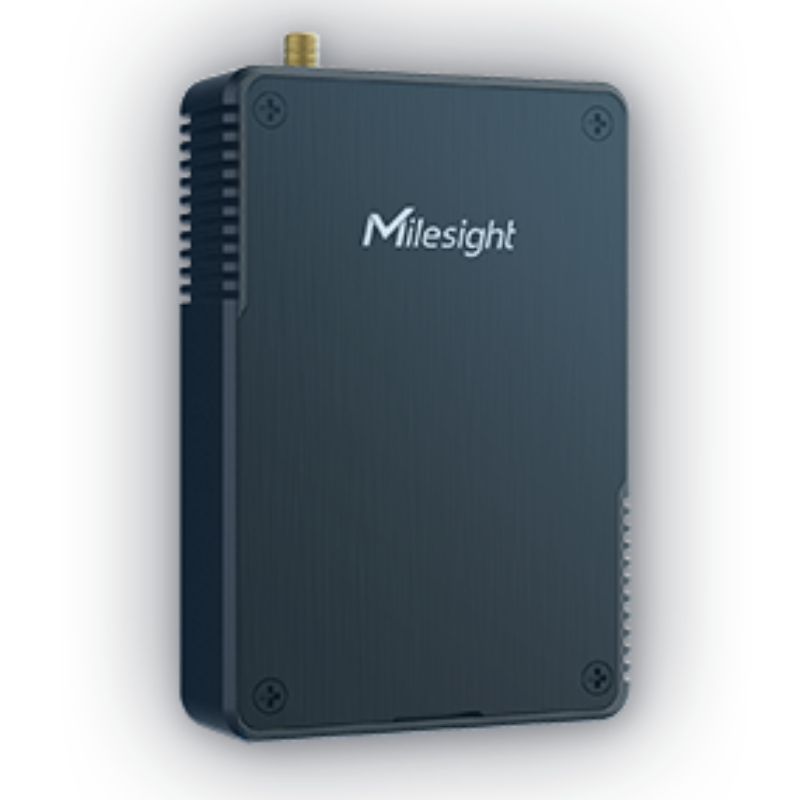

Milesight UG56 Industrial LoRaWAN Gateway

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 05 Dec 2025 06:21:28 +0000

Thông số kỹ thuật

Hardware System
CPU	Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
Memory	512 MB DDR3 RAM
Flash	8 GB eMMC
Extendable Storage	1 × Micro SD Slot (Internal)
LoRaWAN
Antenna Connector	1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Channel	8 (Half/Full-duplex)
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity	-140 dBm Sensitivity @292bps
Output Power	27 dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT	Support
Ethernet Interface
Port	1 × RJ45 (PoE PD supported)
Physical	Layer 10/100 Base-T (IEEE 802.3)
Data Rate	10/100 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi Interface
Antenna	Internal Antenna
Standards	IEEE 802.11b/g/n, 2.4 GHz
Mode	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Cellular Interface (Optional)
Antenna	Internal Antenna
SIM Slot	1 (Mini SIM-2FF)
Others
Reset Button	1 × RST (Internal)
Console Port	1 × Type-C
LED Indicators	1 × SYSTEM, 1 × LoRa
Built-in	Watchdog, Timer
Power Supply
Power Input	1. 1 × 802.3 af PoE Input 2. 5V, 2A by Type-C Port
Physical Characteristics
Ingress Protection	IP30
Housing	Metal
Dimensions	110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)
Installation	Desktop, Wall Mounting
Environmental
Operating Temperature	-20°C to +60°C (-4℉ to +140℉)
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉

Bài viết Milesight UG56 Industrial LoRaWAN Gateway đã xuất hiện đầu tiên vào ngày VNS.

Milesight UG65 Semi-Industrial LoRaWAN Gateway

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 05 Dec 2025 06:19:22 +0000

Thông số kỹ thuật

Model	UG65
Hardware System
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	512 MB DDR4 RAM
Flash	8 GB eMMC
LoRaWAN
Antenna	Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Channel	8
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface
Port	1 × RJ45 (PoE PD support)
Physical Layer	10/100/1000 Base-T (IEEE 802.3)
Data Rate	Rate 10/100/1000 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna	Fully Integrated and Internal Antenna
Standards	IEEE 802.11 b/g/n
Cellular Interface (Optional)
Antenna	Fully Integrated and Internal Antenna
SIM Slot	1
Power Supply and Consumption
Power Supply	1. DC Jack Connector for 9-24 VDC power supply
Power Supply	2. 1 × 802.3 af PoE input
Consumption	≤ 4.2W
Physical Characteristics
Ingress Protection	Protection IP65
Dimensions	180 x 110 x 56.5 mm
Mounting	Desktop, Wall or Pole Mounting
Others
Reset Button	1 × RST
Console Port	1 × Type-C Port
LED Indicators	1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Built-in	Watchdog, RTC, Timer
Certification	CE, FCC
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉)
Operating Temperature	Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉

Bài viết Milesight UG65 Semi-Industrial LoRaWAN Gateway đã xuất hiện đầu tiên vào ngày VNS.

Milesight UG67 Outdoor LoRaWAN Gateway

Công ty Cổ phần Tích hợp Giải pháp mạng Việt Nam — Fri, 05 Dec 2025 06:17:39 +0000

Thông số kỹ thuật

Model	UG67
Hardware System
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	512 MB DDR4 RAM
Flash	8 GB eMMC
LoRaWAN
Antenna	Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector)
Channel	8
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface
Port	1 × RJ45 (PoE PD Supported)
Physical Layer	10/100/1000 Base-T (IEEE 802.3)
Data Rate	Rate 10/100/1000 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna	Fully Integrated Internal Antenna
Standards	IEEE 802.11 b/g/n
Cellular Interface (Optional)
Antenna	Fully Integrated and Internal Antenna
SIM Slot	1
GPS
Antenna	Internal Antenna
Sensitivity	-167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy	<2.5 m CEP
Power Supply and Consumption
Power Supply	1. 1 × 802.3 af PoE input
Power Supply	2. 1 × 12 VDC with M12 Connector
Consumption	Typical 3.6 W, Max 4.8 W
Physical Characteristics
Ingress Protection	Protection IP67
Dimensions	250 x 172 x 92 mm
Mounting	Wall or Pole Mounting
Others
Reset Button	1 × RST
Console Port	1 × Type-C Port
LED Indicators	1 × SYS, 1 × LoRa, 1 × LTE
Built-in	Watchdog, RTC, Timer
Certification	CE, FCC
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉)
Operating Temperature	Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉

Bài viết Milesight UG67 Outdoor LoRaWAN Gateway đã xuất hiện đầu tiên vào ngày VNS.
