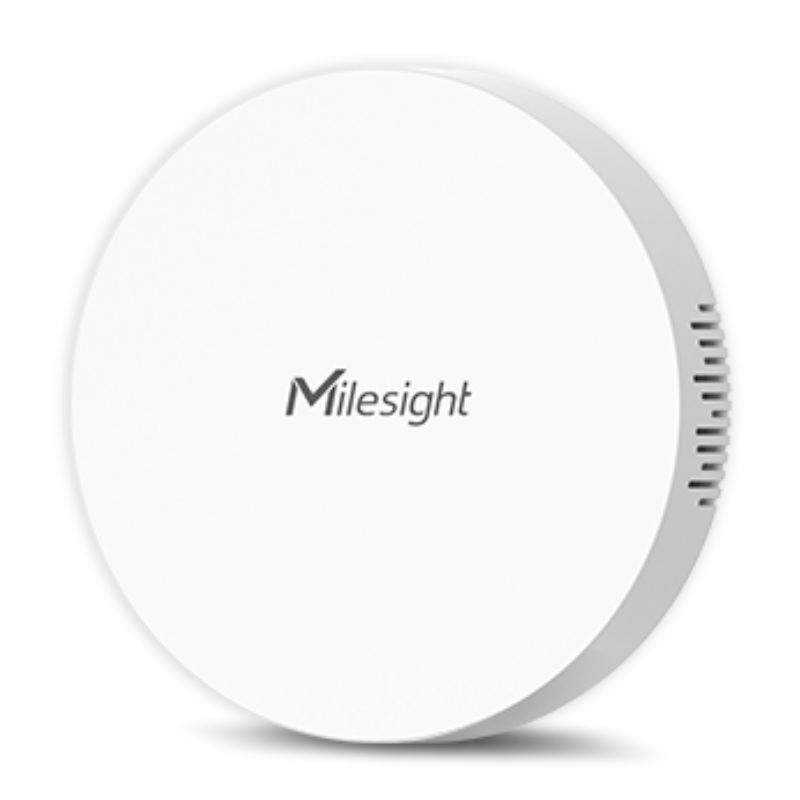

Milesight UG63 Mini LoRaWAN Gateway

0 trên 5 dựa trên 2 đánh giá

Mã sản phẩm: UG63 Tình trạng: Còn hàng

Liên hệ báo giá: 0981.189.881

Thông số kỹ thuật

Hardware System
CPU	528 MHz, ARM Cortex-A7
Memory	256 MB DDR4 RAM
Flash	4 GB eMMC
LoRaWAN
Antenna	2 × Internal Antennas
Channel	8 (Half/Full-duplex)
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT	Support
Ethernet Interface
Port	1 × RJ45 (PoE PD supported)
Physical Layer	10/100 Base-T (IEEE 802.3)
Data Rate	10/100 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Others
Reset Button	1 × RST
Console Port	1 × Type-C
LED Indicators	1 × SYS, 1 × LoRa
Built-in	Watchdog, RTC, Timer
Software
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management	Web, CLI, DeviceHub, Milesight IoT Cloud
Power Supply and Consumption
Power Input	1. 1 × 802.3af standard PoE input
Power Input	2. 5V by Type-C Port
Power Consumption	Max 3.3 W
Physical Characteristics
Ingress Protection	IP30
Dimensions	Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & Material	White, PC + ABS
Installation	Desktop, Wall or Ceiling Mounting
Environmental
Operating Temperature	-20°C to +50°C (-4℉ to +122℉)
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
Approvals
Regulatory	CE, FCC
Environmental	RoHS
