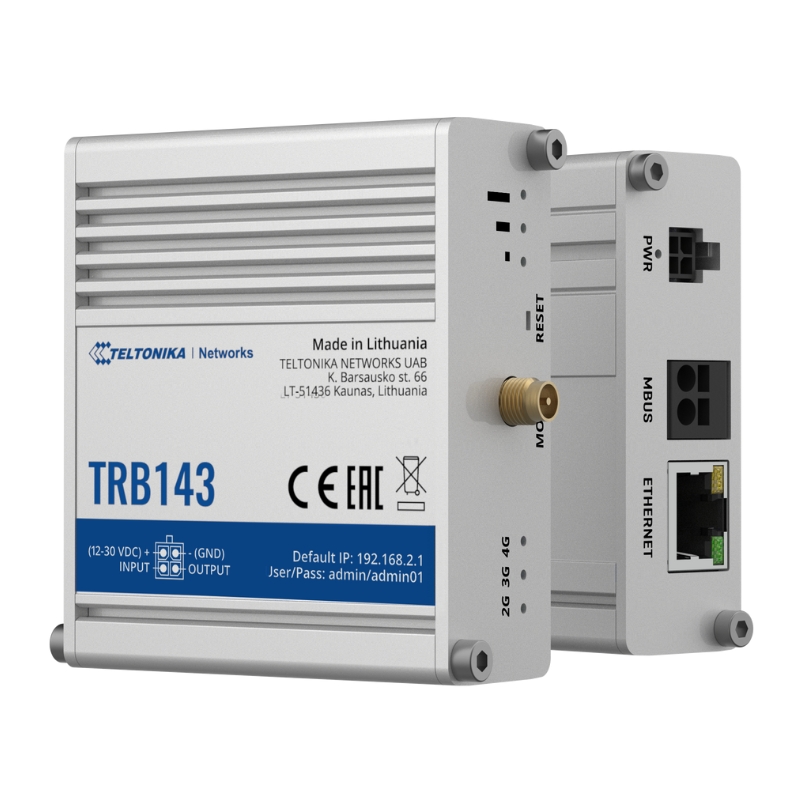

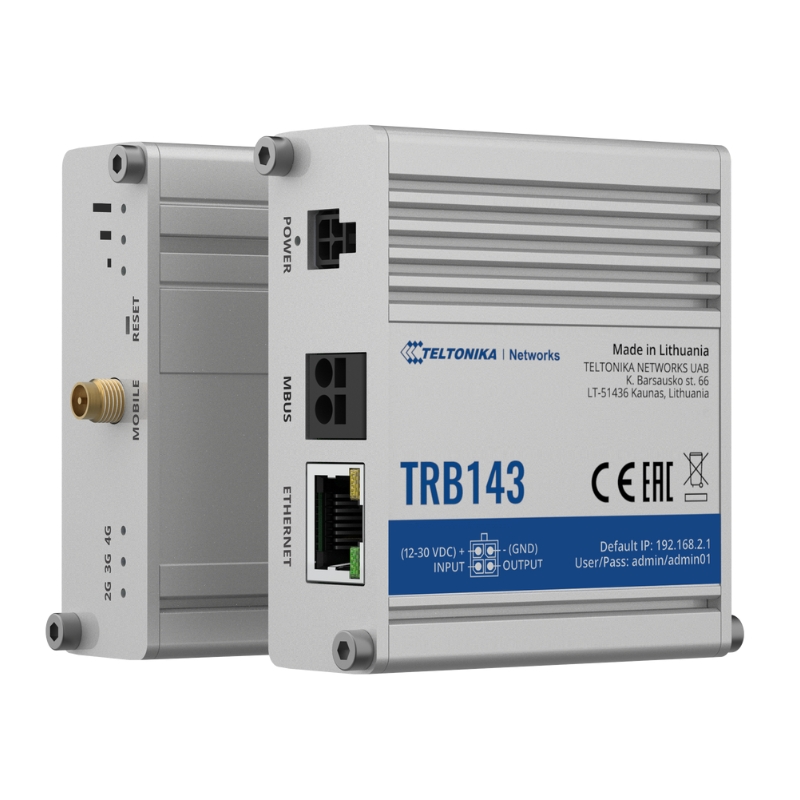

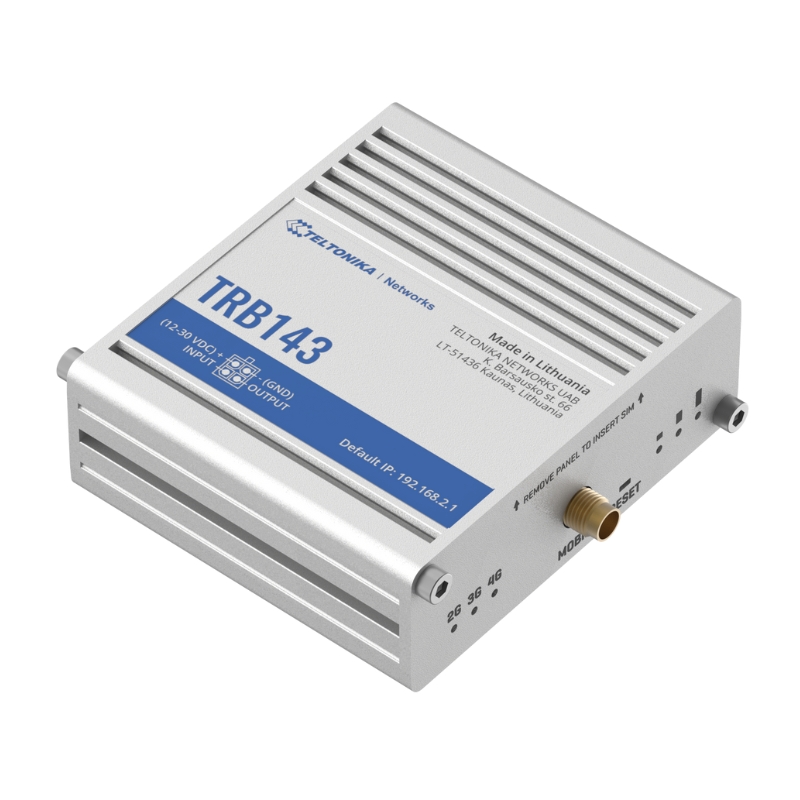

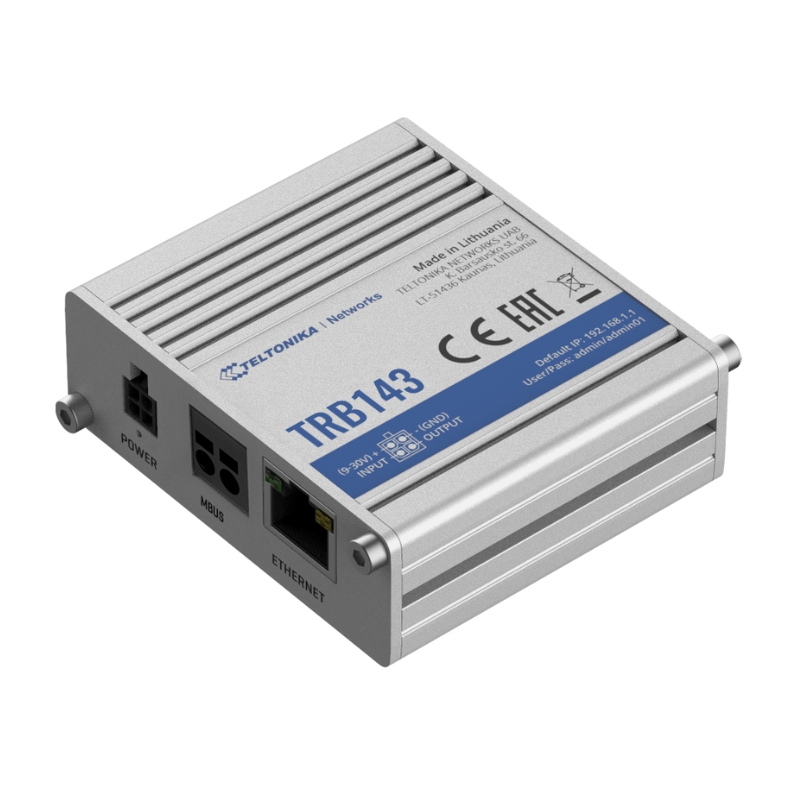

Gateway 3G/4G công nghiệp Teltonika TRB143

0 trên 5 dựa trên 2 đánh giá

(Có 0 đánh giá)

Mã sản phẩm: TRB143 Tình trạng: In stock

Liên hệ báo giá: 0979.300.098

Thông số kỹ thuật

MOBILE
Mobile module	4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SYSTEM CHARACTERISTICS
CPU	ARM Cortex-A7 1.3 GHz CPU
RAM	256 MB (160 MB available for userspace)
FLASH storage	512 MB (200 MB available for userspace)
POWER
Connector	4-pin industrial DC power socket
Input voltage range	12 – 30 VDC (4-pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
Power consumption	Idle: 3 W, Max: 6 W
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
Ethernet	1 x RJ45 port, 10/100/1000 Mbps
M-Bus	1 x M-Bus Interface
I/Os	2 x Configurable I/O pins on 4-pin power connector
Status LEDs	3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM	1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power	1 x 4-pin DC power connector
Anntena	1 x SMA female for LTE
Reset	Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATIONS
Casing material	Aluminum housing
Dimensions (W x H x D)	74.5 x 25 x 73 mm
Weight	145g
Mounting options	DIN rail, wall mounting (additional kits needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing
Ingress Protection Rating	IP30
